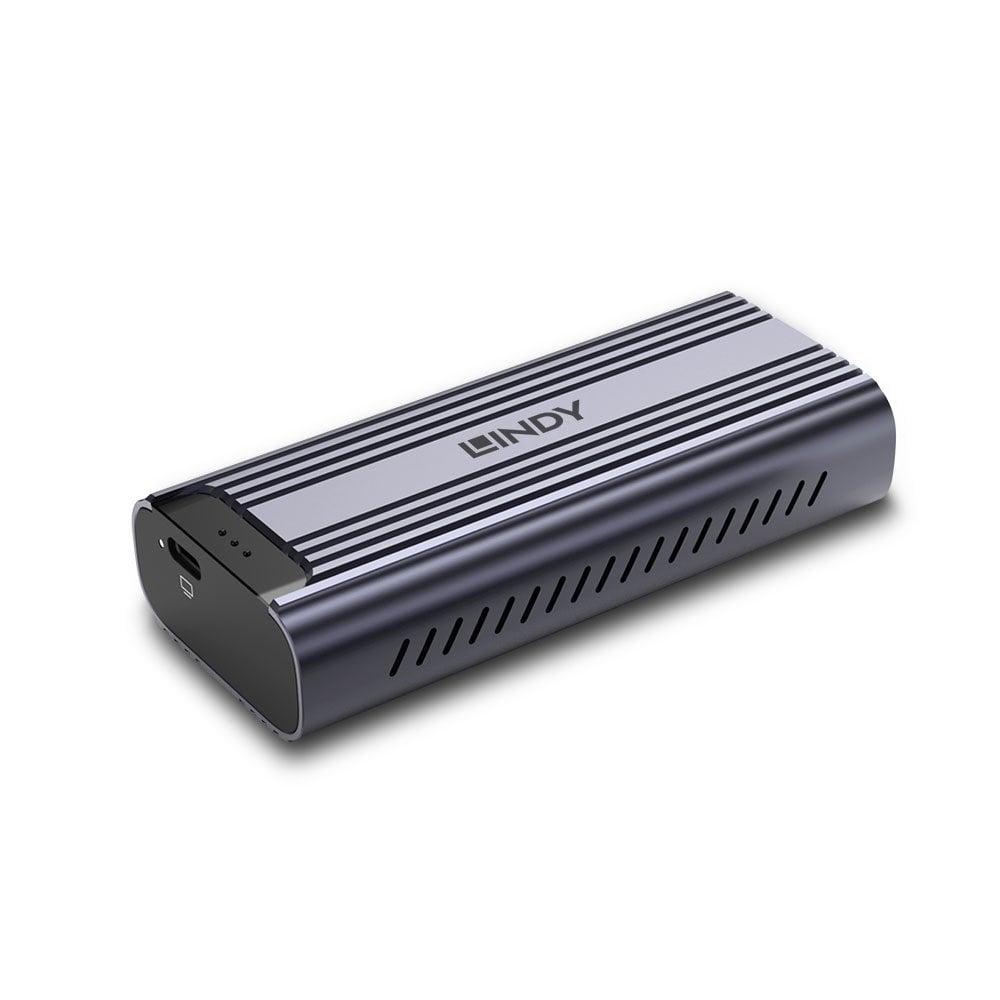

USB4 NVMe M.2 SSD Enclosure

The Lindy USB4 NVMe M.2 SSD Enclosure allows the user to install a PCIe/NVMe based M.2 SSD as an external drive to USB4 or Thunderbolt Type C hosts like laptops or PCs. Support for the USB4 standard guarantees extremely fast data transfer rates up to 40Gbps.*

This Lindy enclosure is compatible with PCIe/NVMe based M.2 SSDs with M key or B + M key in 42, 60 and 80mm lengths.  The Aluminium housing with Aluminium heatsink ensures excellent heat dissipation and a suitable operating temperature. The tool-free design makes installation very easy.

* Please note that 40Gbps full support is only possible with a USB4, Thunderbolt 3 or 4 host controller.

Specifications

• Interface: USB to PCIe/NVMe M.2 SSD
• Interface Standard: USB4, PCIe 4.0 x4
• Supported Bandwidth: 40Gbps
• Chipset: ASM2464PD
• Compatibility: USB4/Thunderbolt Type C equipped computers
• Special Features: supports 42/60/80mm SSDs, SSDs with max. 12mm height, UASP & TRIM

Connectors

• Inputs: 1 x USB Type C (Female)
• Outputs: 1 x PCIe based M.2 (Female), M key and B+M key
• Power: Bus-powered

Physical Properties

• Dimensions WxDxH: 107x47x24mm (7.09x4.13x1.81in)
• Cable Length: 0.15m (5.9ft)
• Housing Material: Aluminium
• Net Weight: 0.088kg (0.19lb)
• Operating Temperature: 0°C - 45°C  (32°F - 113°F)
• Storage Temperature: -10°C - 70°C  (-14°F - 158°F)
• Humidity: 10 - 85% RH (non-condensing)
• Power Requirements: -
• Colour: Dark Grey

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 180x105x30mm (7.09x4.13x1.18in)
• Gross Weight: 0.2kg (0.44lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH, CP65

Package Contents

• USB4 NVMe M.2 SSD Enclosure
• 0.15m USB4 40Gbps FPC Flat cable
• Aluminium Heatsink Kit (Aluminium Heatsink, Metal Bracket, 2x Silicone Thermal Pad, 4x Screws)
• 1x Mini Screwdriver
• 2x Screw + Nut
• Lindy Manual

Purchasing Information

• No.: 43394
• EAN: 4002888433945
