8m USB 3.2 Gen 1 Active Extension Pro

Part No. 43158
  • £113.16 inc. VAT
  • (Delivery from £3.99 inc. VAT )
448 In Stock Now   |
Loading...

Product Summary

  • High performance, active cable that provides an extended 8m connection between a computer and USB 3.0 device
  • Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cables used)
  • Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
  • Easy to use – connects to the device’s existing USB cable (2m maximum)
  • 2 year warranty

------------------ SECTION BREAK ------------------

SECTION 1 - HERO IMAGE

Product Image
------------------ SECTION BREAK ------------------

SECTION 2 - HERO HEADLINE & SUBLINE



 Your USB Extension, Your Way.


------------------ SECTION BREAK ------------------

SECTION 3 - INTRO TEXT

The Modular USB 3.2 Gen 1 Extension System.

The Lindy 8m USB 3.2 Gen 1 Active Extension Pro Cable enables reliable, high-performance USB connectivity at extended distances. Designed for both standalone use and as part of Lindy’s modular Active Extension System Pro, it delivers full SuperSpeed 5Gbps performance over 8 metres — and supports bespoke installations of over 40 metres when cascaded with other system components. With active signal boosting, locking connectors, and rugged construction, it's ideal for AV, IT, and industrial environments where long-distance USB performance is a must.

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 4 - AT A GLANCE

SECTION 4 - AT A GLANCE

AT A GLANCE



8m Active USB Extension Cable

Reliable USB performance far beyond standard cable lengths.

USB 3.2 Gen 1 (SuperSpeed)

Full 5Gbps data bandwidth for fast device communication.

Modular System Support

Combine with other components for custom lengths up to 40m.

Locking Connectors

Secure fit for professional and industrial applications.

Rugged, shielded construction

Built for stability for professional and industrial applications.

Plug & Play

Easy installation with no drivers or configuration needed.

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE

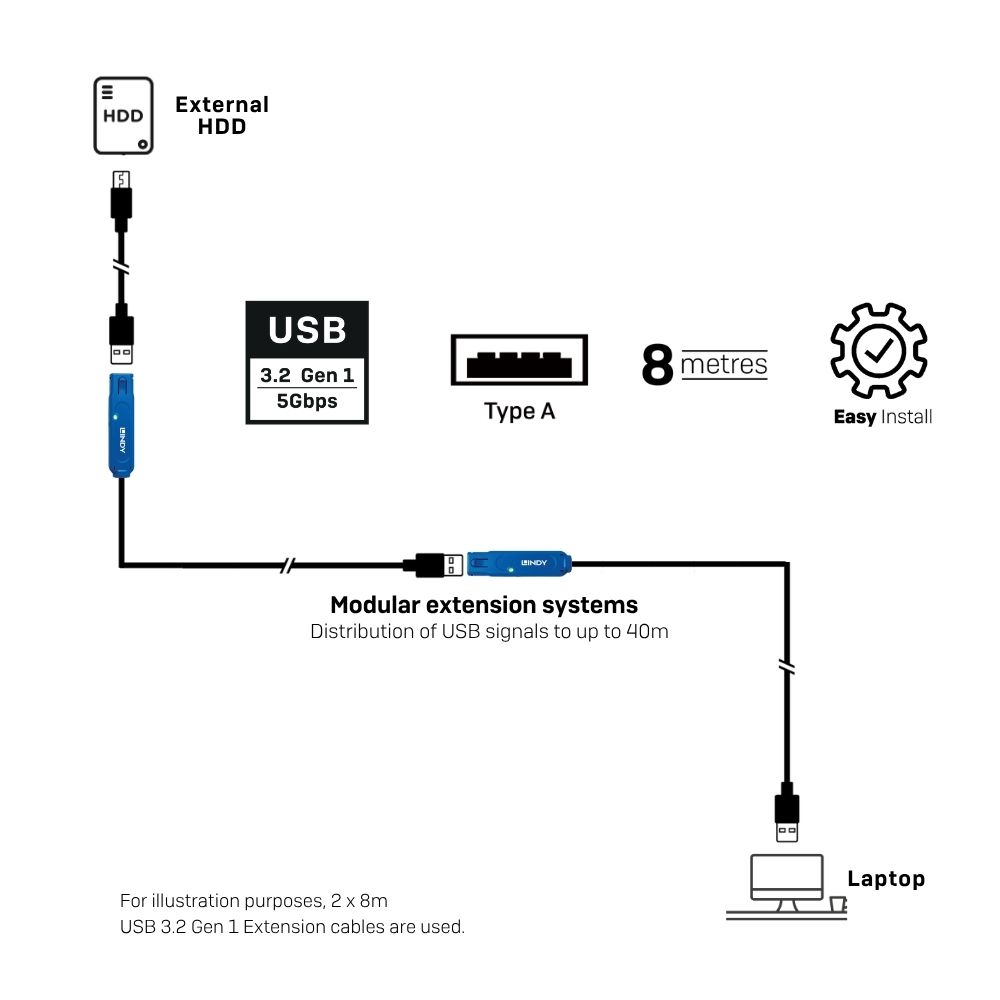

SECTION 7 - INSTALLATION EXAMPLE

INSTALLATION EXAMPLE


------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 8 - TYPICAL SECTORS

TYPICAL SECTORS


Broadcasting Icon

Broadcasting & Media Production

Education Icon

Education & Training

Retail Icon

Retail & Point of Sale

Government Icon

Government & Public Sector

Office Icon

Corporate & Home Office

Logistics Icon

Logistics & Warehouse

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 9 - APPLICATIONS

APPLICATIONS



AV Installations

Extended USB peripherals for conference room AV setups.

Industrial Use

Long distance connection of control devices and data loggers.

Broadcast & Production

Connect high-speed USB devices (e.g. drivers, cameras) in studio environment.

Education

USB connection to whiteboards or student devices over longer distances.

Secure PC Setups

Place host systems in secure areas with user devices extended out.

Home Offices & Offices

Ensure fast, reliable connectivity from webcams and  printers to conference room, even over longer distances.

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 10 - SUMMARY / CONCLUSION

HIGH SPEED USB, WHEVER YOU NEED IT.



The Lindy 8m USB 3.2 Gen 1 Active Extension Pro Cable lets you connect USB devices far beyond the standard 5m limit — with full 5Gbps performance and plug & play simplicity. Use it on its own or combine with other system components to build a custom USB extension network up to 40m.

------------------ SECTION BREAK ------------------

Connectors

  • Connector A: USB Type A Male
  • Connector B: USB Type A Female
  • Power: 2.5/0.7mm DC Connector
  • Housing Material: Plastic
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: Gold Flash
  • Dimensions (approx.) WxDxH:
    • USB A Male: 15x49x8mm (0.59x1.93x0.31in)
      USB A Female: 20x80x13mm (0.79x3.15x0.51in)

Cable Construction

  • Length: 8m (26.25ft)
  • Standard: USB 3.1 Gen 1 / 3.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7mm +/- 0.15mm (0.28in +/- 0.01in)
  • Jacket Material: Half matt PVC low toxic
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 24/24/20AWG
  • Shielding: AL Mylar and braid

Specifications

  • Supported Bandwidth: 5 Gbps
  • Included Hubs: 1x USB 3.0
  • Nominal Attenuation:
    • 0.064MHz - <0.08dB
      0.256MHz - <0.11dB
      0.512MHz - <0.13dB
      0.772MHz - <0.15dB
      1.0MHz - <0.20dB
      4MHz - <0.39dB
      8MHz - <0.57dB
      12MHz - <0.67dB
      24MHz - <0.95dB
      48MHz - <1.35dB
      96MHz - <1.90dB
      200MHz - <3.20dB
      400MHz - <5.80dB
  • Minimum Bend Radius: 36mm (1.42in)
  • Maximum Tensile Load: -
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Transmission Medium: Twisted Pair
  • Transmission Technology: USB 3.1 Gen 1 /  3.0

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 240x200x70mm (9.45x7.87x2.76in)
  • Net Weight: 0.75kg (1.65lb)
  • Gross Weight: 0.9kg (1.98lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • USB 3.0 Active Extension Pro 10m
  • Power Adapter Cable Nr. 70265
  • Lindy Manual

Purchasing Information

  • No.: 43158
  • EAN: 4002888431583

This product is also available in other lengths

  • 43157 - 10m (32.81ft)
  • 43159 - 10m (32.81ft) with hub
  • 43229 - 15m (49.21ft)
  • 43361 - 20m (65.62ft)
  • 43362 - 30m (98.42ft)
