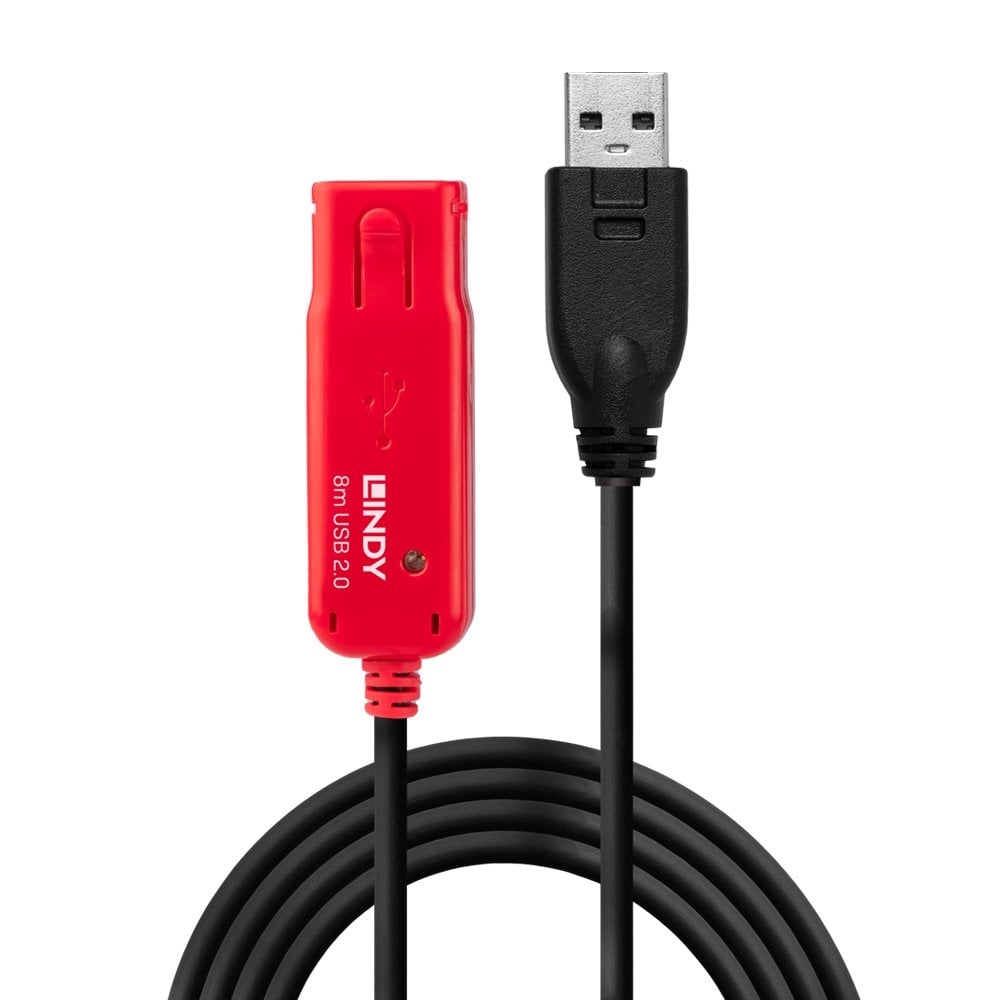

8m USB 2.0 Active Extension Pro

Part No. 42780
  • £40.92 inc. VAT
  • (Delivery from £3.99 inc. VAT )
182 In Stock Now   |
Loading...

Product Summary

  • High performance, active cable that provides an extended 8m connection between a computer and USB 2.0 device
  • Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m
  • Supports USB 2.0 High Speed bandwidth for speeds of 480Mbps
  • USB Type A Male to A Female – connects to the device’s existing USB cable (2m maximum)
  • 2 year warranty


The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.

This 8m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.

The 8m and 12m cable, and the 8m and 12m hub feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.



Connectors

  • Connector A: USB Type A Male
  • Connector B: USB Type A Female
  • Power: -
  • Housing Material: Plastic
  • Connector Plating: Front: Gold / Back: Nickel
  • Pin Construction: Brass
  • Pin Plating: Gold Flash
  • Dimensions (approx.) WxDxH:
      • USB A Male: 15x43x8mm (0.59x1.69x0.31in)
      USB B Female: 20x64x13mm (0.83x2.52x0.51in)

Cable Construction

  • Length: 8m (26.25ft)
  • Standard: USB 2.0
  • Colour:  Black
  • Type:  Round
  • Jacket Diameter: 5mm +/-0.15mm (0.2in +/- 0.01in)
  • Jacket Material: Half matt PVC low toxic
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 26/20AWG
  • Shielding: AL Mylar and braid

Specifications

  • Supported Bandwidth: 480 Mbps
  • Included Hubs: 1x USB 2.0
  • Nominal Attenuation:
      • (0.064 MHz, -0.08 dB)
      (0.256MHz, -0.11 dB)
      (0.512MHz, -0.13 dB)
      (0.772 MHz, -0.15 dB)
      (1 MHz, -0.2 dB)
      (4 MHz, -0.39 dB)
      (8 MHz, -0.57 dB)
      (12 MHz, -0.76 dB)
      (24 MHz, -0.95 dB)
      (48 MHz, -1.35dB)
      (96 MHz, -1.9 dB)
      (200 MHz, -3.2 dB)
      (400 MHz, -5.8 dB)
  • Minimum Bend Radius: 26mm (1.02in)
  • Maximum Tensile Load: -
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Transmission Medium: Twisted Pair
  • Transmission Technology: USB 2.0

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 238x202x66mm (9.37x7.95x2.6in)
  • Net Weight: 0.28kg (0.62lb)
  • Gross Weight: 0.44kg (0.97lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • USB 2.0 Active Extension Pro 8m
  • Lindy Manual

Purchasing Information

  • No.: 42780
  • EAN: 4002888427807

This product is also available in other lengths

  • 42782 - 12m (39.37ft)
Showing our 3 8m USB 2.0 Active Extension Pro reviews with an average rating of Excellent. Would you like to write a review?
Review Summary - 5 out of 5 based on 3 ratings.
January 29, 2014 | Hugo Patten
Better than the competition

I needed to get a better signal for my USB wireless network adapter and bought an extender cable from another supplier so as to position it in the best place. It worked with my desktop PC but not with the laptop for which I needed it. Too much power and signal loss over 8 metres, I guess. So I bought this one, which works perfectly. Well done Lindy!

Lindy Electronics Ltd.
May 10, 2013 | Meurig Parry
Three month problem solved in minutes

I wanted to view my monitor upstairs on 47inch tv in lounge, I tried various methods both wired and wireless with no luck then I came across the Lindy web site and read about the "Pro" series of usb extension cables, I took a chance ordered two cables which arrived next day and when fitted had perfect picture with full control of mouse and keyboard. I have since then ordered various items from Lindy and each time the service was excellent thank you Lindy ----Meurig

Lindy Electronics Ltd.
March 4, 2013 | M Dorea
Need a connection,go to Lindy.

Ordered USB 2.0 Active Extension System Pro 8 Meter cable,arrived next day as promised via Royal Mail. Have been strugling to get a decent signal level on my 3 mobile broadband dongle. Plugged it into cable,hung dongle next to window,walla, full 3G speed. Absolutely excellent!!!

Lindy Electronics Ltd.
