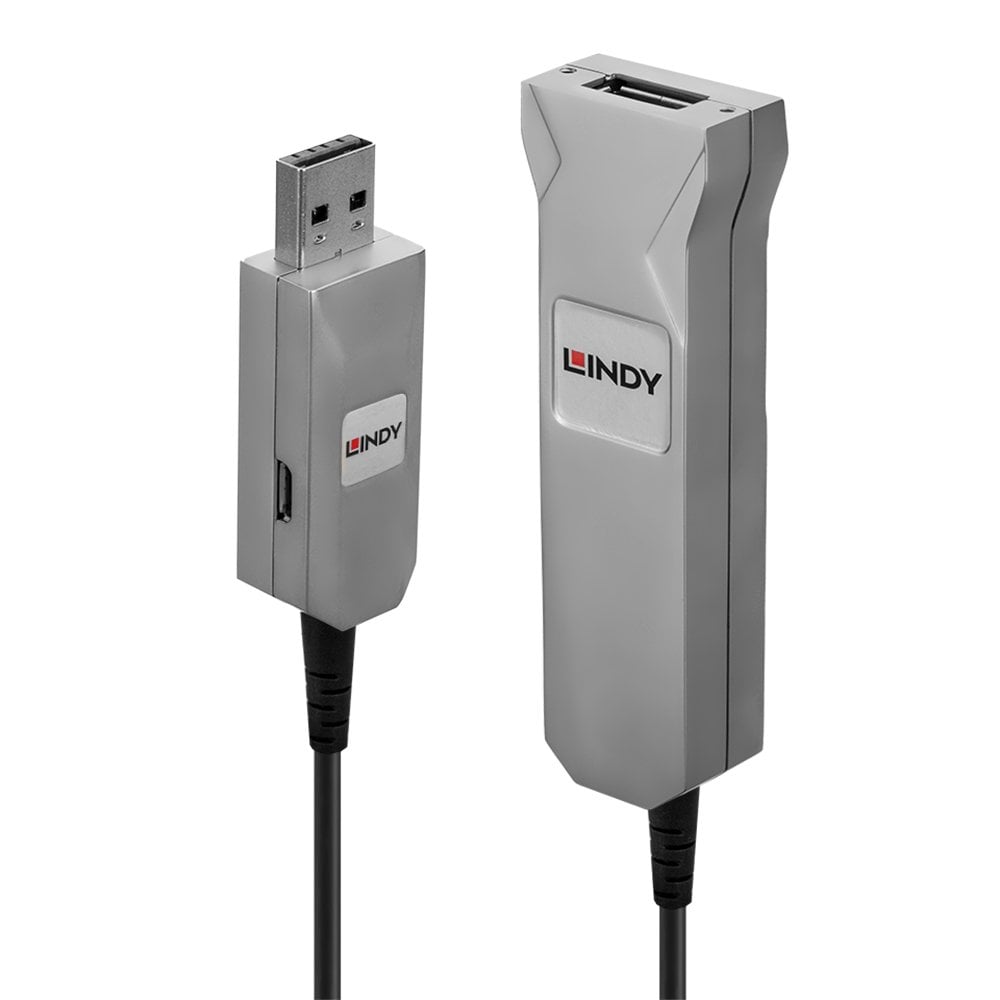

50m USB 3.2 Gen 1 Hybrid Fibre Optic Extension Cable

Part No. 42701
  • £254.74 inc. VAT
  • (FREE UK Delivery)
83 In Stock Now   |
Loading...

Product Summary

  • Extends USB 3.2 Gen 1 signals to 50 metres
  • Supports transfer rates up to 5Gbps
  • USB-A Male to A Female connections
  • Low RFI/EMI for sensitive environments
  • 2 year warranty

The Lindy Hybrid USB 3.1 Gen1 Cable extends a USB port by 50m, far longer than is possible with standard or active copper cables, whilst retaining transfer rates of up to 5Gbps (backwards compatible with USB 2.0/1.1/1.0 devices).

A lighter and more flexible construction makes this cable simple to install with cable trays and through conduits, whilst low RFI/EMI ensures that the cable can be installed in the most sensitive of environments. It supports isochronous data transfer, improving the timely delivery of data packets, which makes it ideal for synchronising video and audio streams.

For added convenience the Hybrid cable is bus-powered and is supplied with a USB Micro-B cable which can be attached to a second USB port should additional power be required.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Connectors
  • Connector A: USB Type A Male
  • Connector B: USB Type A Female
  • Power: USB Micro-B Female
  • Housing Material: Metal
  • Connector Plating: Nickel 80µ
  • Pin Construction: Phosphor Copper
  • Pin Plating: Gold 30µ
  • Dimensions (approx.) WxDxH:
  • USB A Male: 27x44x13mm (1.06x1.73x0.51in)
  • USB A Female: 26x82x14mm (1.02x3.23x0.55in)

Cable Construction
  • Length: 50m (164.04ft)
  • Standard: USB 3.2 Gen 1 / USB 3.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 3.7mm (0.15in)
  • Jacket Material: TPU
  • Conductor Material: 2pcs Tinned Copper Wire / 2pcs Optical Fiber
  • Conductor Gauge: 22AWG / OM1
  • Shielding: PVC insulation material

Specifications
  • Supported Bandwidth: 5Gbps
  • Nominal Attenuation: -
  • Minimum Bend Radius: 50mm (1.97in)
  • Maximum Tensile Load: -
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Transmission Medium: Optical Fiber
  • Transmission Technology: -

Miscellaneous
  • Packaging Type: Carton Box
  • Packaging Dimensions: 315x215x65mm (12.4x8.46x2.56in)
  • Net Weight: 1.02kg ( 2.25lb)
  • Gross Weight: 1.2kg (2.65lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS & REACH

Purchasing Information
  • No.: 42701
  • EAN: 4002888427012
