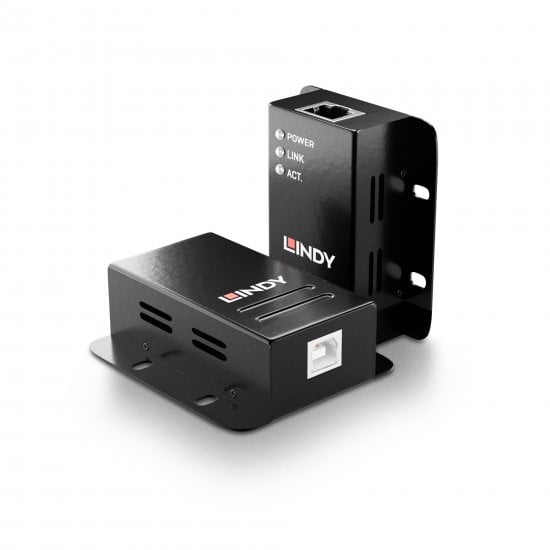

50m Cat.6 USB 2.0 Extender

Part No. 42680
  • £139.09 inc. VAT
  • (Delivery from £3.99 inc. VAT )
1215 In Stock Now   |
Loading...

Product Summary

  • Extend a USB 2.0 port up to 50m using low cost Cat. 5e/6 network cable (not included)
  • Power over Cable requires a single power supply to be connected to the transmitter only
  • Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
  • Plug & Play installation
  • 2 year warranty
------------------ SECTION BREAK ------------------

SECTION 1 - HERO IMAGE

Product Image
------------------ SECTION BREAK ------------------

SECTION 2 - HERO HEADLINE & SUBLINE



USB, Anywhere You Need It.


------------------ SECTION BREAK ------------------

SECTION 3 - INTRO TEXT

Extend with confidence. Performance that goes the distance.

The Lindy 50m USB 2.0 Cat.6 Extender enables reliable USB extension over distances of up to 50 metres using standard Cat.5e/6 cabling. With Power over Cable functionality and a single power connection to the transmitter, this solution simplifies installations in commercial, industrial, and professional environments. Supporting both USB 2.0 and USB 1.1 devices, it’s ideal for extending USB peripherals such as keyboards, external drives, interactive displays, and control interfaces. Robust metal housing and mounting brackets make it perfectly suited for long-term, fixed installations.

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 4 - AT A GLANCE

SECTION 4 - AT A GLANCE

AT A GLANCE



USB 2.0 up to 480Mbps

Enables fast, reliable data transmission for modern USB peripherals.

50m Extension over Cat.5e/6

Eliminates the 5m USB limitation using widely available network cable.

Power over Cable

Simplifies installation – only one power supply is required at the transmitter.

Support for Isochronous Transfer

Ensures smooth performance with audio, video, and timing-sensitive devices.

Plug & Play Setup

No drivers or software required – simple to deploy and operate.

Metal Housing with Mounting Brackets

Ideal for secure installation in industrial and professional settings.

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 5 - CONNECTION OVERVIEW 1

CONNECTION OVERVIEW

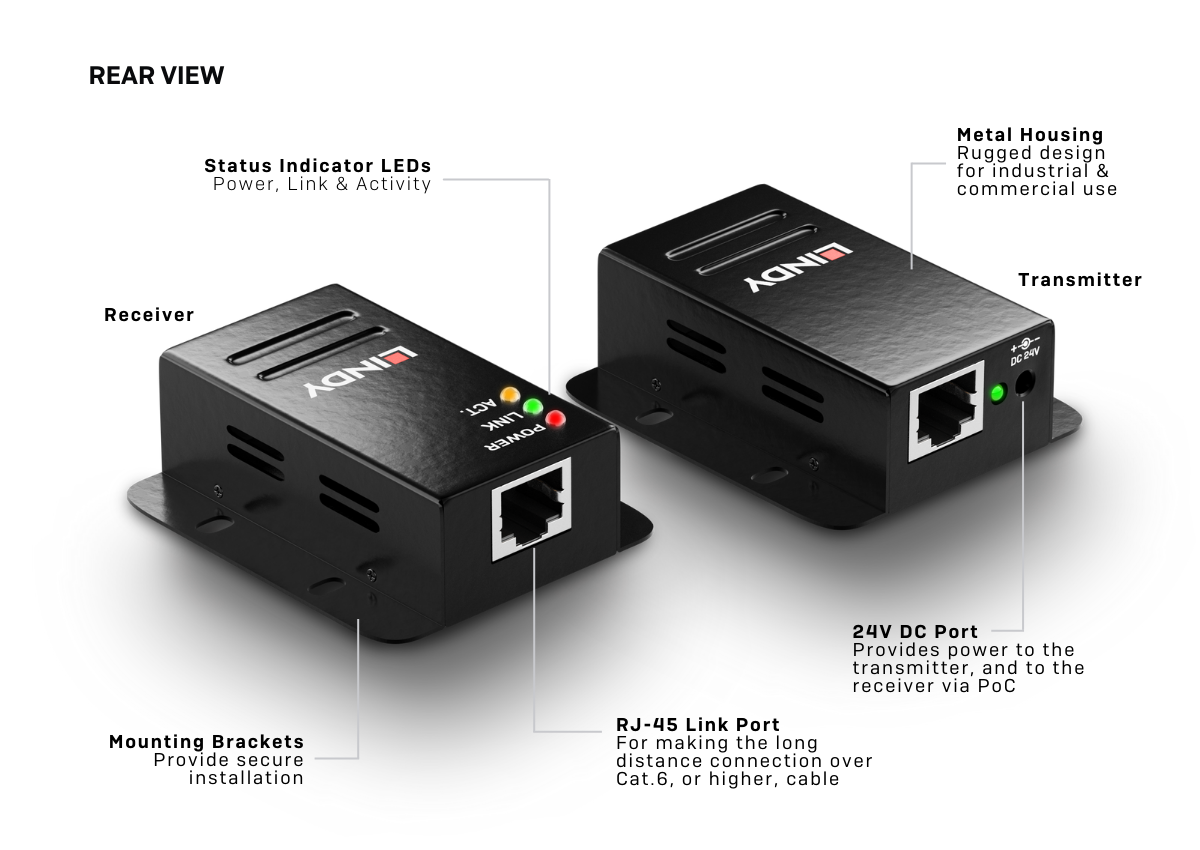

42680 Rear View
------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 6 - CONNECTION OVERVIEW 2

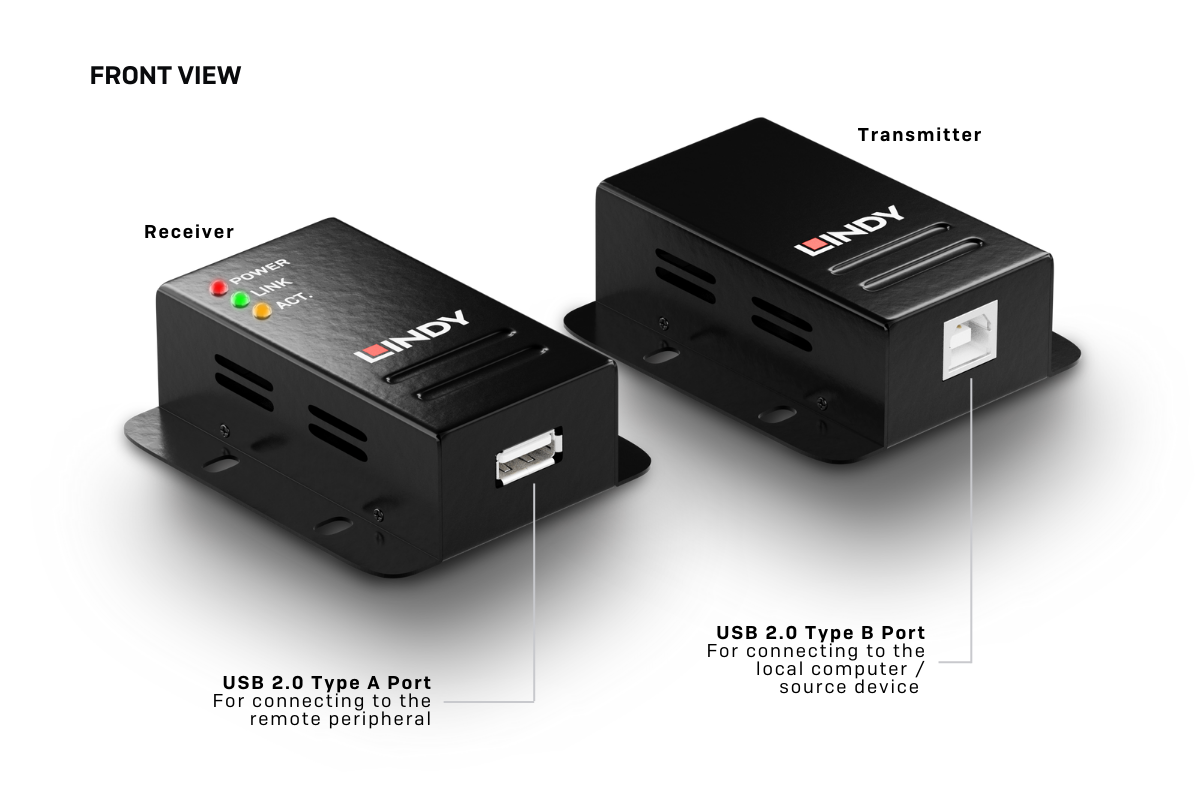

42680 Front View
------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 7 - INSTALLATION EXAMPLE

INSTALLATION EXAMPLE

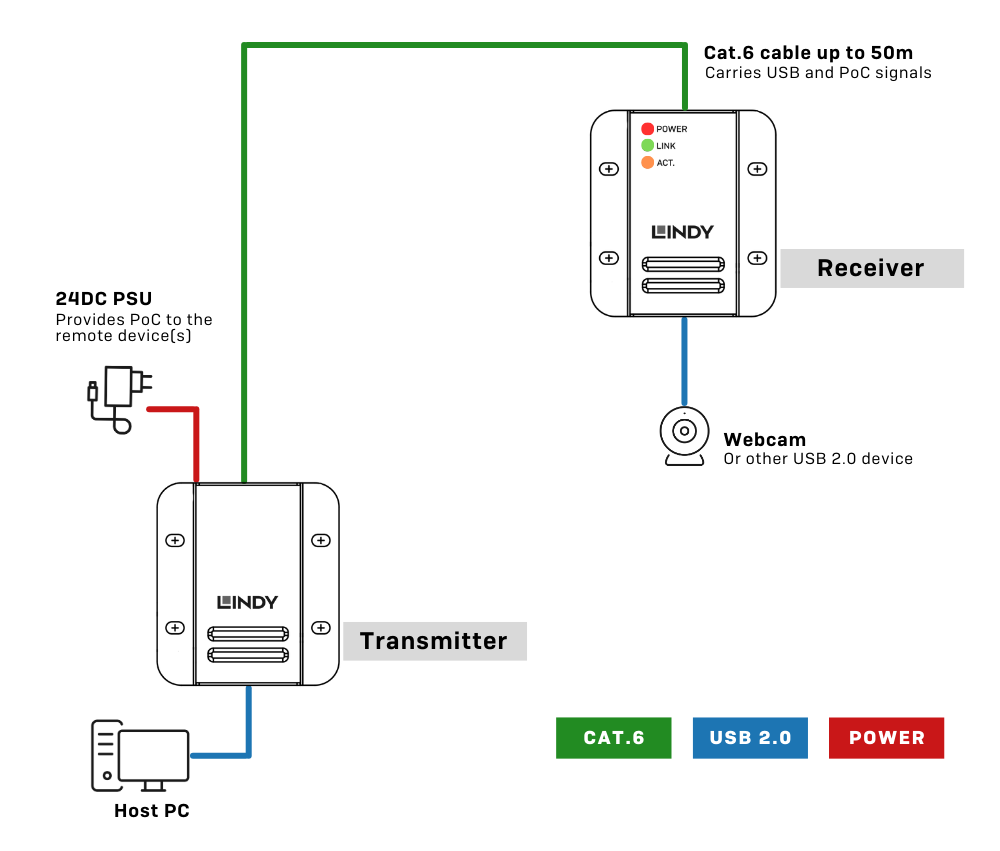

Installation Example 2
------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 8 - TYPICAL SECTORS

TYPICAL SECTORS


Broadcasting Icon

Broadcasting & Media Production

Education Icon

Education & Training

Retail Icon

Retail & Point of Sale

Healthcare Icon

Healthcare & Medical Imaging

Security Icon

Security & Surveillance

Logistics Icon

Logistics & Warehouse

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 9 - APPLICATIONS

APPLICATIONS



Interactive Displays & Whiteboards

Extend the reach of USB touchscreens in classrooms and meeting spaces.

USB Control Interfaces

Connect industrial controls or diagnostic equipment away from the PC.

Keyboard & Mouse Extensions

Ideal for security or presentation environments where the PC is locked away.

USB Audio Interfaces & Cameras

Supports isochronous transfer for media devices.

Remote Workstations

Centralise hardware while providing full USB access at remote locations.

USB Storage Devices

Access external drives, flash media, or backup solutions at distance without compromising data integrity.

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 10 - SUMMARY / CONCLUSION

EXTEND WITH CONFIDENCE. PERFORMANCE THAT GOES THE DISTANCE.



When you need reliable USB 2.0 extension up to 50 metres with minimal cabling, the Lindy 50m USB 2.0 Cat.6 Extender delivers. With Power over Cable, simple installation, and robust design, it’s the dependable choice for modern, professional and industrial environments.

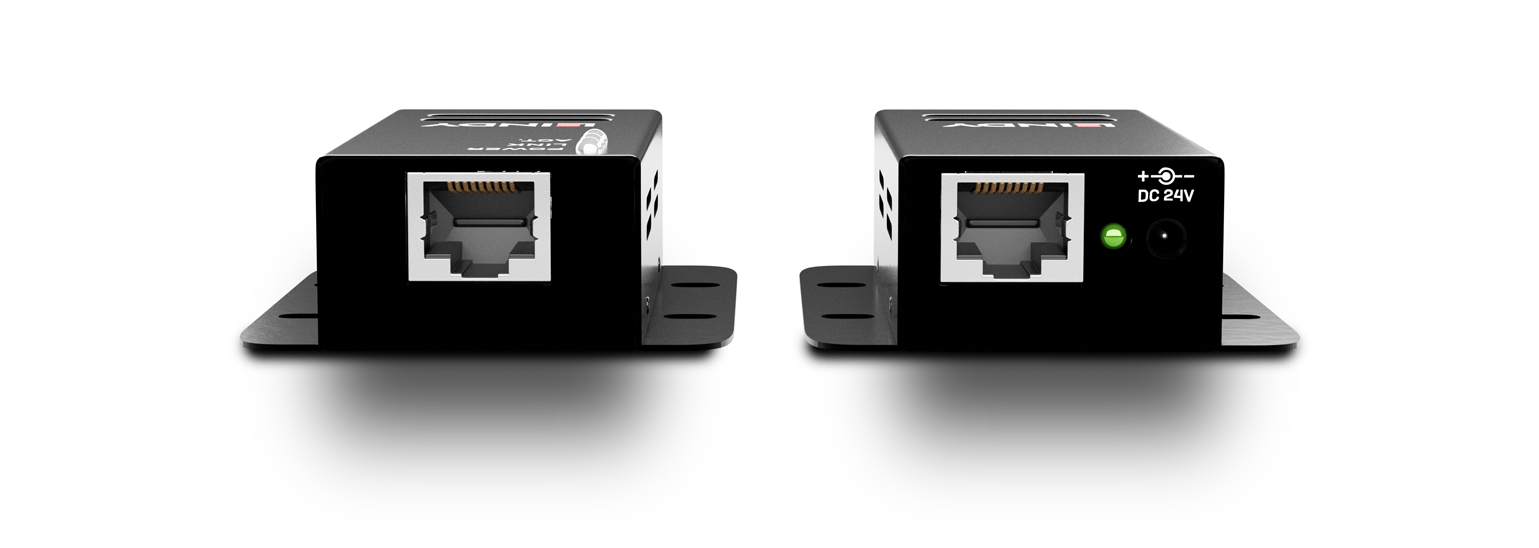

Summary Image Placeholder
------------------ SECTION BREAK ------------------
Specifications
  • USB Standard: USB 2.0
  • Supported Bandwidth: 480Mbps
  • Maximum Distance: 50m (164.04ft)
  • Transmission Medium: Cat.5e/6 or higher network cable
  • Chipset: NS1021
  • Special Features: Power over RJ45, Supports isochronous data transfer; Contains one USB 2.0 hub

Connectors
  • Transmitter Input: USB Type B (Female)
  • Transmitter Output: RJ45 (Female)
  • Receiver Input: RJ45 (Female)
  • Receiver Output: 1 x USB Type A (Female)
  • Power: 3.5/1.35mm DC socket

Physical Properties
  • Dimensions WxDxH:
  • 60x67x23mm (2.36x2.64x0.91in) (TX)
  • 60x67x23mm (2.36x2.64x0.91in) (RX)
  • Housing Material: Metal
  • Net Weight: 0.3kg (0.66lb)
  • Operating Temperature: -0° - 70°C (32°F - 158°F)
  • Storage Temperature: -20°C - 80°C (-4°F - 176°F)
  • Humidity: 0 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 0.5A
  • Colour: Black

Miscellaneous
  • Packaging Type: Carton Box
  • Packaging Dimensions: 183x138x53mm (7.2x5.4x2.1in)
  • Gross Weight: 0.4kg (0.88lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS, REACH

Package contents
  • Transmitter unit
  • Receiver unit
  • 0.5m USB 2.0 A Male to B Male cable
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy Manual

Purchasing information
  • No.: 42680
  • EAN: 4002888426800
Showing our 1 review for 50m Cat.6 USB 2.0 Extender. Write a review ›
Review Summary - 5 out of 5 based on 1 rating.
July 20, 2018 | Kevin
50m USB 2.0 CAT.5/6 Extender With Power Over CAT.5/6

Excellent piece of kit, very compact and well made.

I needed to connect a USB digital display to a device more than the 3m USB allows. The display is powered over the USB cable from the device it is normally connected to. Fortunately voltages matched and using the POE connection it also powers our display.

We connected all the devices over a 50m CAT6 cable and everything worked fine. Pay attention to the notes about using CAT6 and no switches hubs, wall plates etc.

Don't try this unless you are sure you remote device takes the same 24Vdc and will not overload the supplied power supply.
