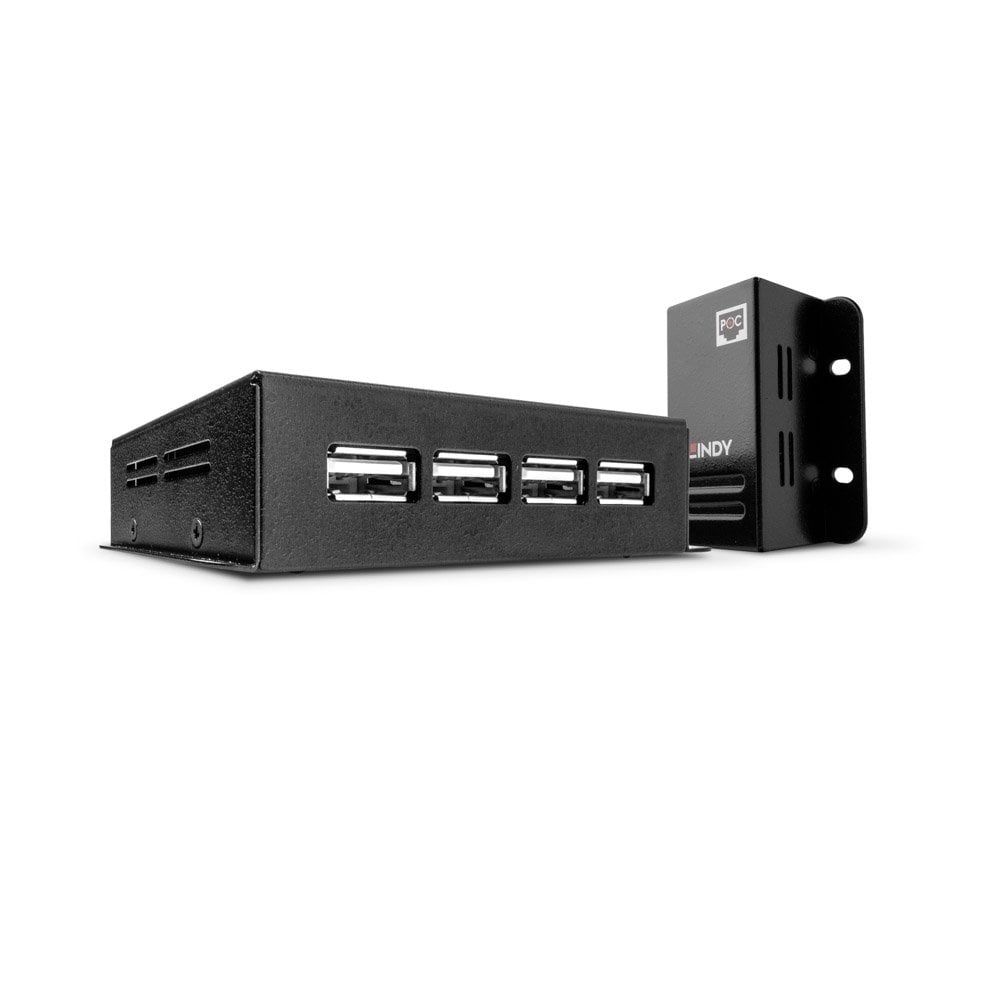

50m Cat.6 USB 2.0 4-Port Hub Extender

Part No. 42681
  • £165.58 inc. VAT
  • (FREE UK Delivery)
557 In Stock Now   |
Loading...

Product Summary

  • Extend 4 USB 2.0 ports up to 50m using low cost Cat. 5e/6 network cable (not included)
  • Power over Cable requires a single power supply to be connected to the transmitter only
  • Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
  • Plug & Play installation
  • 2 year warranty

SECTION 1 - HERO IMAGE

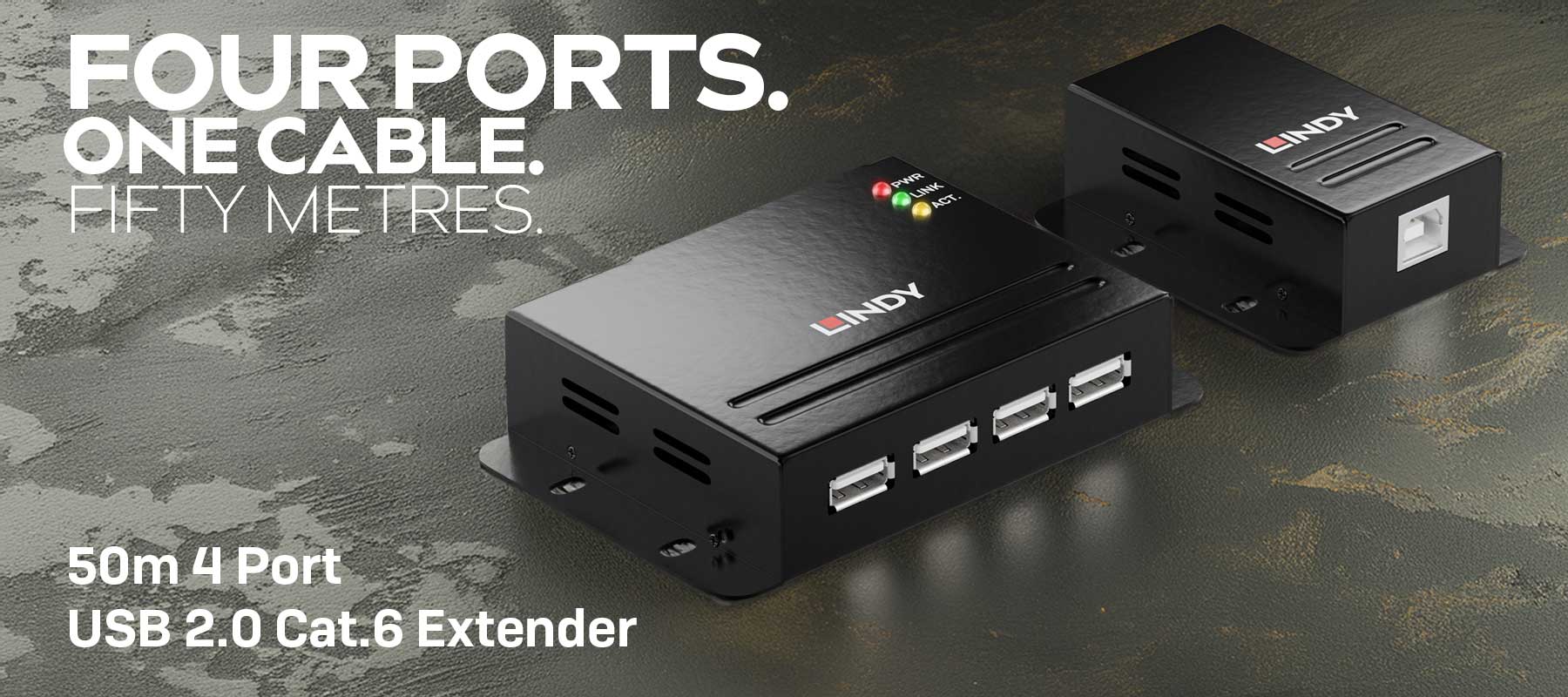

Product Image
------------------ SECTION BREAK ------------------

SECTION 2 - HERO HEADLINE & SUBLINE



More Devices. Less Cabling.


------------------ SECTION BREAK ------------------

SECTION 3 - INTRO TEXT

Durable USB 2.0 Extension for Professionals.

The Lindy 50m 4 Port USB 2.0 Cat.6 Extender provides a dependable, plug & play solution for extending up to four USB peripherals over a single Cat.5e/6 cable up to 50 metres. With integrated Power over Cable (PoC) technology requiring only one power connection at the transmitter end, it simplifies installation and reduces cable clutter. Ideal for AV, industrial, and professional environments, it supports USB 2.0 High Speed and USB 1.1 devices including keyboards, mice, audio interfaces, and control systems.

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 4 - AT A GLANCE

AT A GLANCE



Up to 50m Extension with 4 Port Receiver

Extends USB connectivity up to 50 meters while connecting up to four devices at the remote end with a single cable run.

Power over Cable

Requires only one power supply, simplifying setup and reducing cable clutter.

USB 2.0 & 1.1 Support

Compatible with a wide range of devices, including audio, input, and control.

Isochronous data support

Reliable performance for timing-sensitive and high-precision USB peripheral devices.

Plug & Play

No configuration or drivers needed for quick and hassle free setup.

Industrial-grade metal housing

Built to last in demanding industrial and commercial environments.

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 5 - CONNECTION OVERVIEW 1

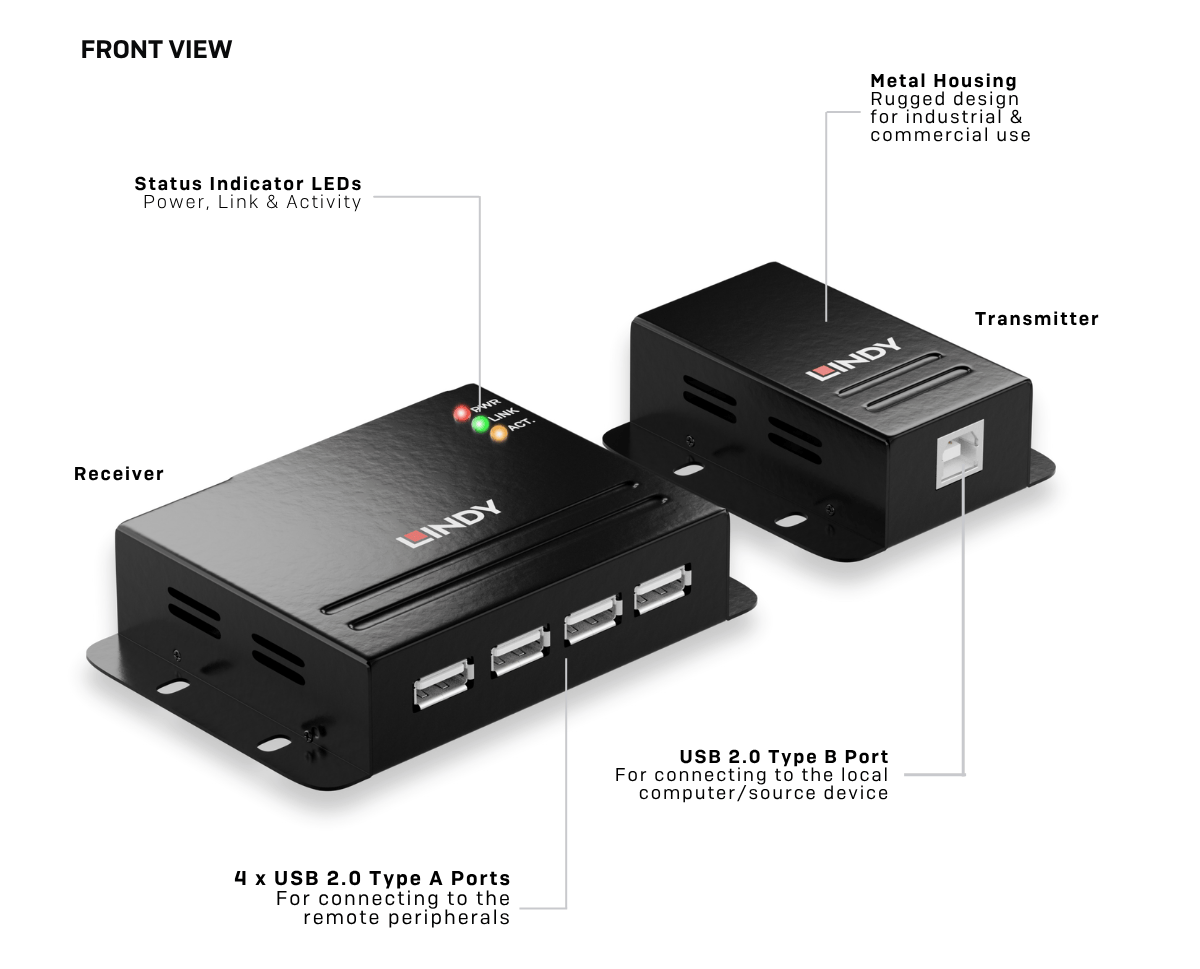

CONNECTION OVERVIEW


------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 6 - CONNECTION OVERVIEW 2

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 5 - CONNECTION OVERVIEW 1

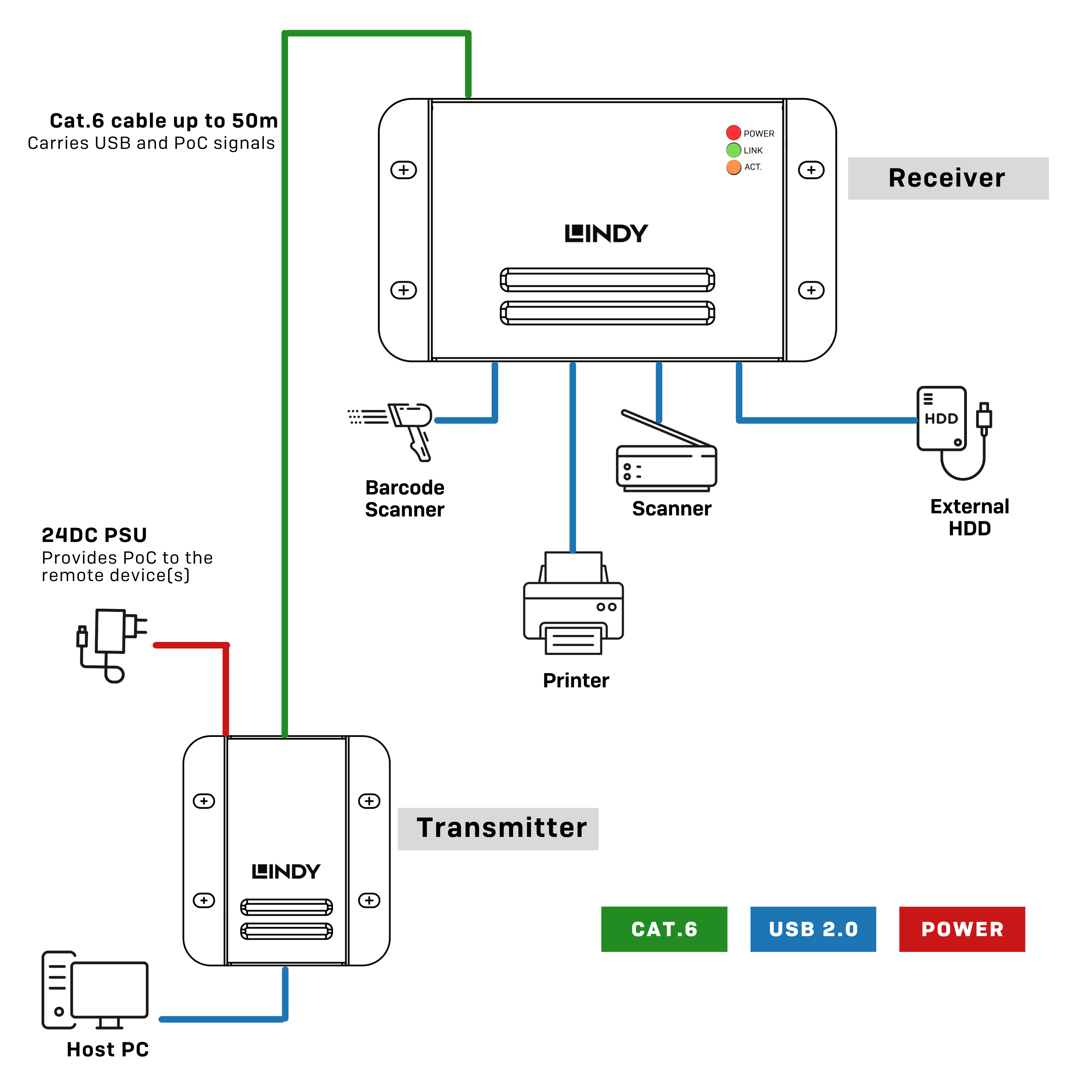

INSTALLATION EXAMPLE


Installation Example 2
------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 8 - TYPICAL SECTORS

TYPICAL SECTORS


Broadcasting Icon

Broadcasting & Media Production

Education Icon

Education & Training

Retail Icon

Retail & Point of Sale

Healthcare Icon

Healthcare & Medical Imaging

Digital Signage

Industrial Environment

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 9 - APPLICATIONS

APPLICATIONS



AV Control Installations

Connect touchscreen controls, cameras, and audio devices at a distance.

Classrooms & Meeting Rooms

Centralise USB connections for projectors, document cameras, and touch panels.

Factory Floors or Labs

USB sensors, keyboards, or industrial devices at long distances from PCs.

Security Stations

Extend multiple peripherals (e.g., keyboard, mouse, USB storage) to remote operator desks.

Retail or Kiosk Environments

Connect peripherals at point-of-sale systems with limited access to power.

Medical Environments

Enable reliable long-distance USB connections for diagnostic and data entry devices.

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 10 - SUMMARY / CONCLUSION

EXTEND FURTHER. CONNECT MORE. ALL WITH ONE CABLE.



When you need to power and connect to four USB devices over a single 50m run, the Lindy 4 Port USB 2.0 Extender delivers. With reliable performance, rugged design, and simplified installation, it’s ideal for environments where clean, long-distance USB connectivity is essential.

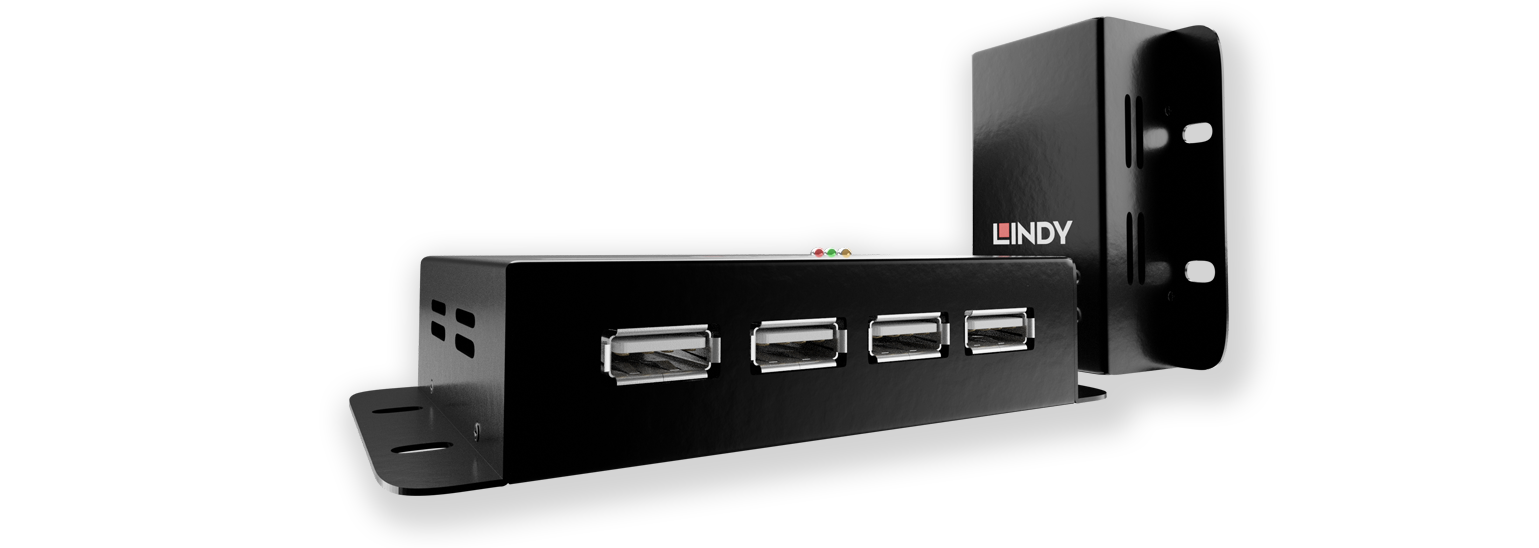

Summary Image Placeholder
------------------ SECTION BREAK ------------------
Specifications
  • USB Standard: USB 2.0
  • Supported Bandwidth: 480Mbps
  • Maximum Distance: 50m (164.04ft)
  • Transmission Medium: Cat.5e/6 or higher network cable
  • Chipset: NS1021
  • Special Features: Power over RJ45, Supports isochronous data transfer; Contains one USB 2.0 hub

Connectors
  • Transmitter Input: USB Type B (Female)
  • Transmitter Output: RJ45 (Female)
  • Receiver Input: RJ45 (Female)
  • Receiver Output: 4 x USB Type A (Female)
  • Power: 3.5/1.35mm DC socket

Physical Properties
  • Dimensions WxDxH:
  • 60x67x23mm (2.36x2.64x0.91in) (TX)
  • 110x64x23mm (4.33x2.52x0.91in) (RX)
  • Housing Material: Metal
  • Net Weight: 0.415kg (0.91lb)
  • Operating Temperature: -0° - 70°C (32°F - 158°F)
  • Storage Temperature: -20°C - 80°C (-4°F - 176°F)
  • Humidity: 0 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 0.5A
  • Colour: Black

Miscellaneous
  • Packaging Type: Carton Box
  • Packaging Dimensions: 183x138x53mm (7.2x5.4x2.1in)
  • Gross Weight: 0.6kg (1.32lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS & REACH

Package contents
  • Transmitter unit
  • Receiver unit
  • 0.5m USB 2.0 A Male to B Male cable
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy Manual

Purchasing information
  • No.: 42681
  • EAN: 4002888426817
Be the first to review 50m Cat.6 USB 2.0 4-Port Hub Extender. Write a review ›
