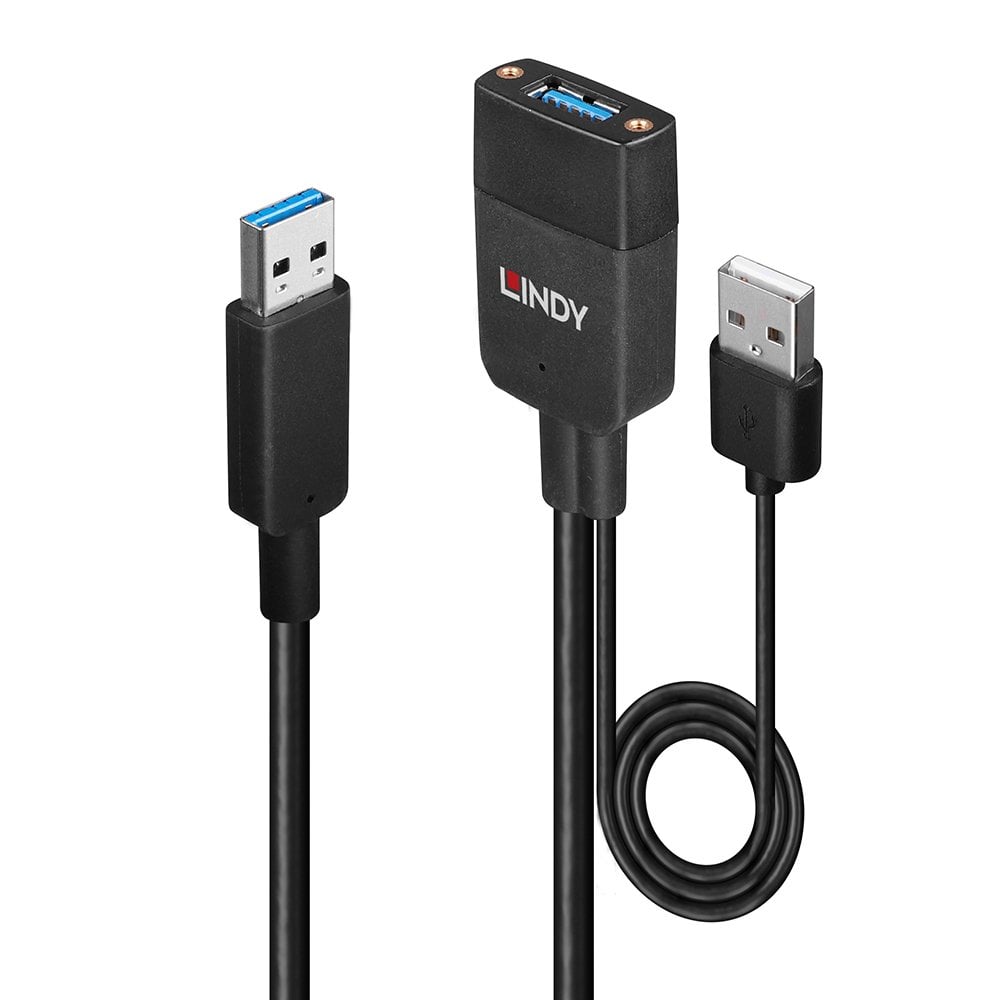

35m USB 3.2 Gen 2 Hybrid Fibre Optic USB-A Cable

The Lindy Hybrid USB 3.2 Cable extends a USB port by 35m, far longer than is possible with standard or active copper cables, whilst retaining SuperSpeed transfer rates of up to 10Gbps (backwards compatible with USB 2.0 devices). A lighter and more flexible construction makes this cable simple to install with cable trays and through conduits, whilst low RFI/EMI ensures that the cable can be installed in the most sensitive of environments.

This Hybrid Cable supports a variety of USB devices like storage media or webcams. It is fully compatible with, and can be used to extend signals from, 4K USB 3.2/3.1 webcams and video conferencing systems.

The screw-locking design of the USB Type A socket ensures a secure connection of the device.

For added convenience the Hybrid cable is bus-powered and features a USB Type A power cable,  which can be attached to an external USB Power Supply (not included) should additional power be required.

• Connector A: USB Type A Male
• Connector B: USB Type A Female
• Power: USB Type A Male
• Housing Material: TPE
• Connector Plating: Stainless Steel C2650, Solder Nickel
• Pin Construction: Copper Alloy, Mating Area AU
• Pin Plating: Mating Area AU 1U
• Dimensions (approx.) WxDxH:
  • USB A Male: 42.85x16x8mm (1.69x0.63x0.31in)
  • USB A Female: 43x28.4x7.12mm (1.69x1.12x0.28in)

Cable Construction

• Length: 35m (114.83ft)
• Standard: USB 3.2/3.1 Gen 2
• Colour: Black
• Type: Round
• Jacket Diameter: 5.0mm (0.2in)
• Jacket Material: PVC
• Conductor Material: Tinned Wire
• Conductor Gauge: 26AWG (STP), 22AWG*2 (VBUS)
• Shielding: AL

Specifications

• Supported Bandwidth: 10Gbps
• Included Hubs: 1x USB 3.0
• Nominal Attenuation: -
• Minimum Bend Radius: 40mm (1.57in), static
• Maximum Tensile Load: 500N (short term)
• Operating Temperature: -20°C - 70°C (-4°F - 158°F)
• Storage Temperature: -40°C - 85°C (-40°F - 185°F)
• Transmission Medium: Optical Fiber
• Transmission Technology: Optoelectronic Transmission

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
• Net Weight: 1.35kg (2.98lb)
• Gross Weight: 1.5kg (3.31lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH, CP 65

Package Contents

• 35m USB 3.2 Gen 2 Hybrid Cable with fixed 70cm USB Power Cable Type A
• Lindy manual

Purchasing Information

• No.: 43357
• EAN: 4002888433570

• UKCA DoC for 43357
• Manual for 43357
• Product Safety Information
