300m Fibre USB 3.2 Gen 1 2-Port Hub Extender

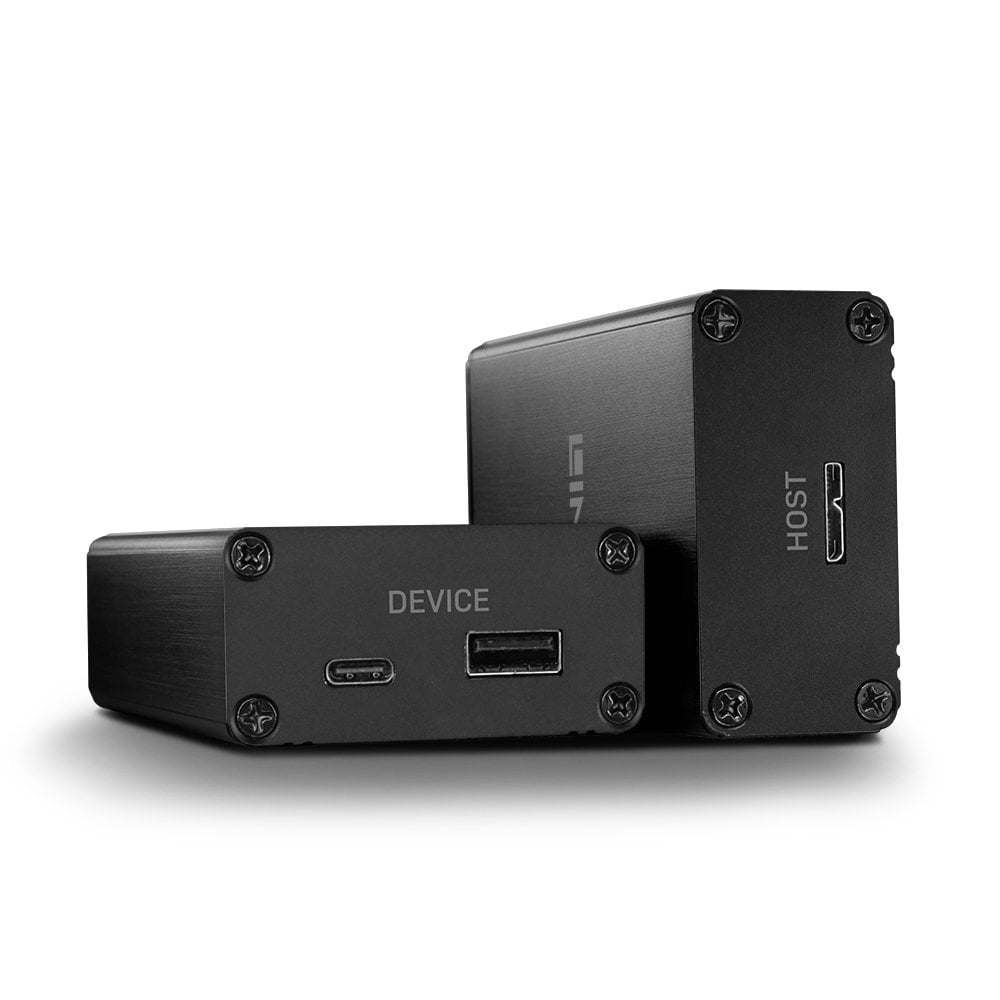

Fibre Optic USB extenders allow USB signals to be extended far beyond the limits of traditional copper cable solutions. The Lindy 300m 2 Port Fibre Optic USB 3.0 Extender supports SuperSpeed transfer rates of up to 5Gbps. This Extender is a complete, two-part hardware solution comprising of a transmitter that connects directly to the user's computer and a receiver that connects to two USB peripherals, using “off the shelf” LC duplex fibre cabling.

The extender is ideal for long distance use with remote desktop links, industrial control systems, surveillance control or meeting/conference rooms and external storage applications. This device is fully compatible with webcams and video conferencing systems that support 4K USB 3.2/3.1/3.0. "Off the shelf" LC duplex fibre cabling gives a greater level of flexibility to choose the cable length to fit the requirements of the installation. Utilising fibre optic transmission, this extender provides high resistance to EMI and RFI, perfect for use in “noisy” areas such as hospitals, large retail installations or industrial buildings.

Please note: This Extender is backwards compatible with USB 2.0 devices. Please note that some USB 2.0 cameras use a different timing standard and thus may be incompatible.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

• USB Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0
• Supported Bandwidth: 5Gbps
• Maximum Distance: 300m (984.24ft)
• Transmission Medium:
69m (226.38ft) - 1 x Multimode 62.5µm/125µm OM1
138m (452.75ft) - 1 x Multimode 50µm/125µm OM2
300m (984.24ft) - 1 x Multimode 50µm/125µm OM3
• Special Features: Supports Control, bulk, interrupt and isochronous data transfer; Contains 3x USB 3.0 hub

Connectors

• Transmitter Input: USB Micro-B (Female)
• Transmitter Output: Duplex LC (Female)
• Receiver Input: Duplex LC (Female)
• Receiver Output: 1x USB Type A (Female), 1x USB Type C (Female)
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions WxDxH: 57x93x28mm (2.24x3.66x1.1in)
• Housing Material: Metal
• Net Weight:
• Transmitter: 0.125kg (0.28lb)
• Receiver: 0.129kg (0.28lb)
• Operating Temperature: 0° - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 20 - 80% RH (non-condensing)
• Power Requirements: 5VDC 3A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 151x127x112mm (5.94x5x4.40in)
• Gross Weight: 0.64kg (1.41lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, REACH, ROHS, California Proposition 65

Package Contents

• 1 x Transmitter
• 1 x Receiver
• 1 x Multi-Country PSU DC 5V 3A (EU/UK/US/AUS)
• Lindy Manual

Purchasing Information

• No.: 43363
• EAN: 4002888433631

• UKCA DoC for 43363
• Product Safety Information
• Manual for 43363
