100m Fibre USB 3.2 Gen 2 USB-C Extender

Part No. 43312
  • £614.54 inc. VAT
  • (FREE UK Delivery)
3 In Stock Now   |
Loading...

Product Summary

  • Extends USB 3.2 Gen 2 connections up to 100m
  • Supports data transfer rates up to 10Gbps
  • Uses standard “off the shelf” LC duplex fibre cabling
  • Resistant to RF & EM Interference for use in highly sensitive areas
  • 2 year warranty



SECTION 1 - HERO HEADLINE

Ultra-Fast USB-C Extension Over Fibre Up to 100m



The Lindy 100m Fibre USB 3.2 Gen 2 USB-C Extender provides reliable long-distance USB connectivity using fibre optic transmission, supporting data transfer speeds up to 10Gbps while maintaining signal integrity over distances up to 100 metres.

SECTION 2 - FEATURE CALLOUT

Fibre Optic USB Extension up to 100m

Using multimode fibre optic transmission, this extender enables USB 3.2 Gen 2 connections to be extended up to 100m while supporting high-speed data transfer rates of up to 10Gbps. The fibre-based design provides excellent resistance to electromagnetic and radio frequency interference, ensuring reliable performance in demanding environments.

SECTION 3 - AT A GLANCE

At a Glance

USB extension up to 100m
Extend USB 3.2 Gen 2 signals over long distances.

SuperSpeed data transfer
Supports bandwidths up to 10Gbps.

LC duplex fibre connectivity
Uses standard off-the-shelf fibre cabling.

High EMI and RFI resistance
Ideal for electrically noisy environments.

SECTION 4 - KEY BENEFITS

Key Benefits

High-speed USB 3.2 Gen 2 performance
Supports SuperSpeed data transfer rates up to 10Gbps for fast and reliable connectivity with modern USB peripherals.

Reliable fibre optic transmission
Multimode fibre optic technology allows USB signals to be extended up to 100m while maintaining signal integrity and performance.

Supports high-bandwidth USB devices
Compatible with demanding applications such as 4K USB webcams, video conferencing systems and high-speed external storage.

Ideal for sensitive and industrial environments
Fibre optic transmission provides strong resistance to EMI and RFI, making it suitable for hospitals, industrial buildings and large retail installations.

Flexible power options
Supplied USB Type A to Micro-B cable allows additional power to be supplied if required for stable operation with connected devices.

Compact transmitter and receiver design
The two-part hardware solution connects directly to the host computer and peripheral device for simple installation.



SECTION 5 - TYPICAL APPLICATIONS

Typical Applications

Ideal for remote desktop connections, industrial control systems, surveillance control rooms, medical environments and long-distance external storage applications. This extender also supports high-performance USB devices such as 4K webcams and video conferencing equipment in professional AV setups.



SECTION 6 - TECHNICAL SUMMARY

Technical Summary

The Lindy 100m Fibre USB 3.2 Gen 2 USB-C Extender supports USB 3.2 / 3.1 Gen 2 with data transfer speeds up to 10Gbps. Using multimode 50µm/125µm OM3 fibre cabling and LC duplex connectors, it allows USB signals to be extended up to 100m while maintaining stable high-speed performance.

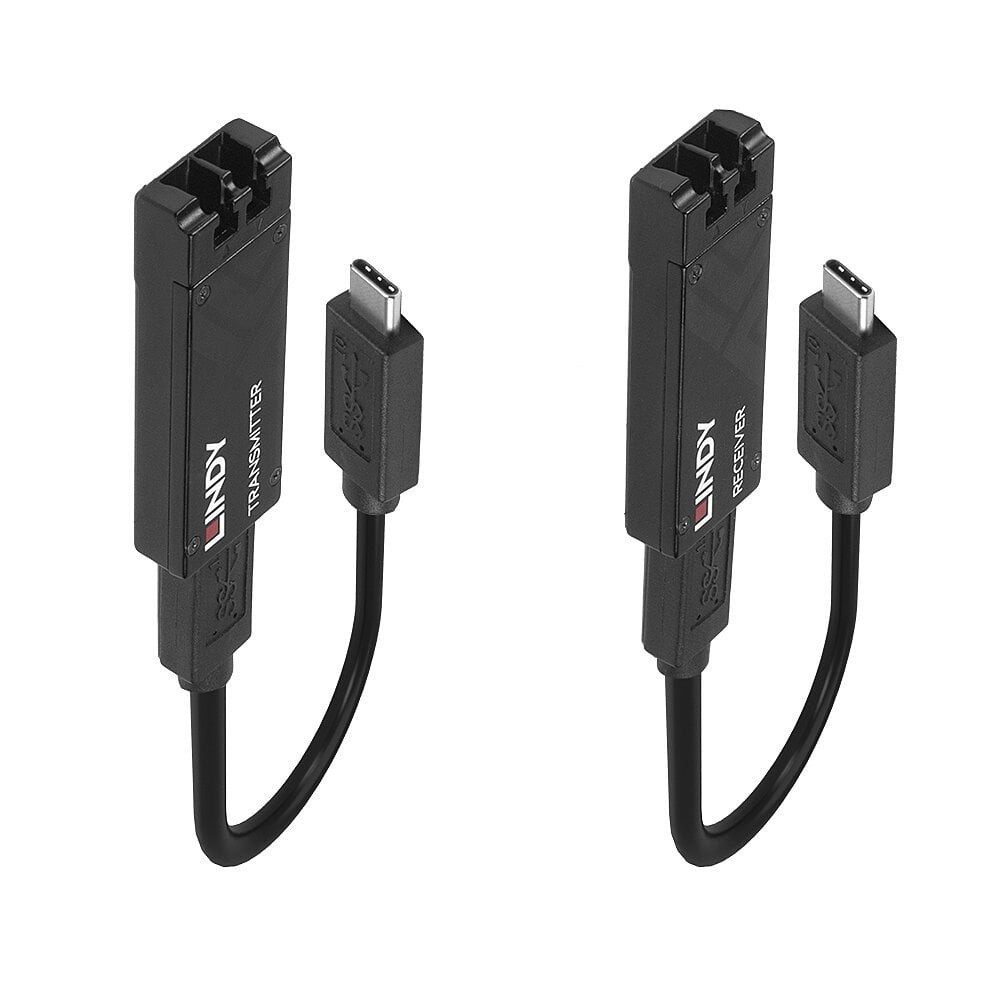

The extender consists of a compact transmitter with a USB Type C host connection and a receiver with a USB Type C device connection. Additional power can be supplied via the integrated Micro-B port when required, ensuring compatibility with demanding USB peripherals.

Housed in durable metal enclosures measuring 58x20x9mm per unit, the extender is designed for professional installations where reliable long-distance USB connectivity is required. It operates from a 5VDC 2A power input and is backed by a 2-year warranty.

Specifications

  • USB Standard: USB 3.2 / 3.1 Gen 2
  • Supported Bandwidth: 10Gbps
  • Maximum Distance: 100m (328.08ft)
  • Transmission Medium: Multimode 50µm/125µm OM3
  • Chipset: Silicon Line SL86050
  • Special Features: Supports isochronous data transfer

Connectors

  • Transmitter Input: USB Type C (Male)
  • Transmitter Output: Duplex LC (Female)
  • Receiver Input: Duplex LC (Female)
  • Receiver Output: USB Type C(Male)
  • Power: USB Micro-B

Physical Properties

  • Dimensions WxDxH: 58x20x9mm (2.28x0.79x0.35in) per unit
  • Housing Material: Metal
  • Net Weight:
    • Transmitter: 0.039kg (0.09lb)
    • Receiver: 0.039kg (0.09lb)
  • Operating Temperature: 0° - 50°C (32°F - 122°F)
  • Storage Temperature: -10°C - 70°C (14°F - 158°F)
  • Humidity: 10 - 80% RH (non-condensing)
  • Power Requirements: 5VDC 2A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 220x50x160mm (8.66x1.97x6.3in)
  • Gross Weight: 0.19kg (0.42lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, REACH, ROHS, California Proposition 65

Package Contents

  • 1 x Transmitter
  • 1 x Receiver
  • 1 x USB Cable USB Type A to Micro-B, 0.95m
  • Lindy Manual

Purchasing information

  • No.: 43312
  • EAN: 4002888433129
