USB to PS/2 Converter

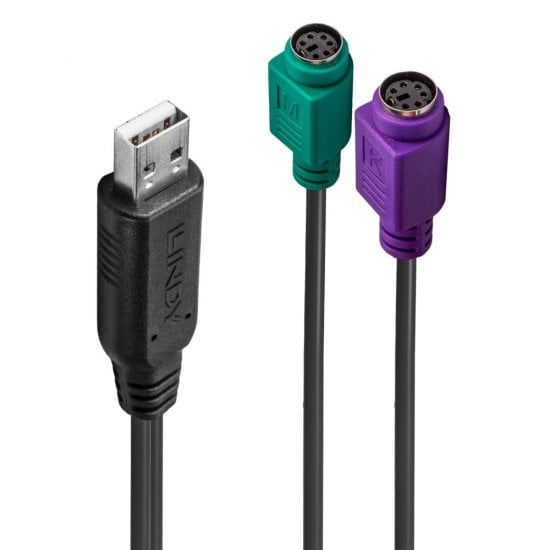

The Lindy USB to PS/2 Converter allows the user to connect two PS/2 peripherals to a USB Type A equipped computer. Two 6 Pin Mini DIN ports make connection of various devices like mice, keyboards, barcode scanners or KVM switches possible.

The converter is powered by the USB Bus, an external power supply is not necessary. With ‘Plug and Play’ installation, no drivers are required, therefore it can be installed with minimum difficulty.

Specifications

• Interface: USB to PS/2
• Interface Standard: USB 1.1, PS/2
• Supported Bandwidth: 12Mbps, 7 - 12kbps
• Chipset: CJS1028
• Range: -
• Frequency Band: -
• Compatibility: USB Type A equipped computers
• Special Features: -

Connectors

• Inputs: 1 x USB Type A (Male)
• Outputs: 2 x Mini-DIN 6 Pin (Female)
• Power: Bus-powered

Physical Properties

• Dimensions WxDxH:
• USB: 50.7x18.5x9.6mm (2x0.73x0.38in)
• PS/2: 13x35x13mm (0.51x1.38x0.51in)
• Housing Material: PVC
• Net Weight: 0.031kg (0.07lb)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)
• Storage Temperature: 0°C - 70°C (32°F - 158°F)
• Humidity: 5 - 90% RH (non-condensing)
• Power Requirements: -
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 133x144mm (5.24x5.67in)
• Gross Weight: 0.035kg (0.08lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• USB to PS/2 Converter

Purchasing information

• No.: 42651
• EAN: 4002888426510
