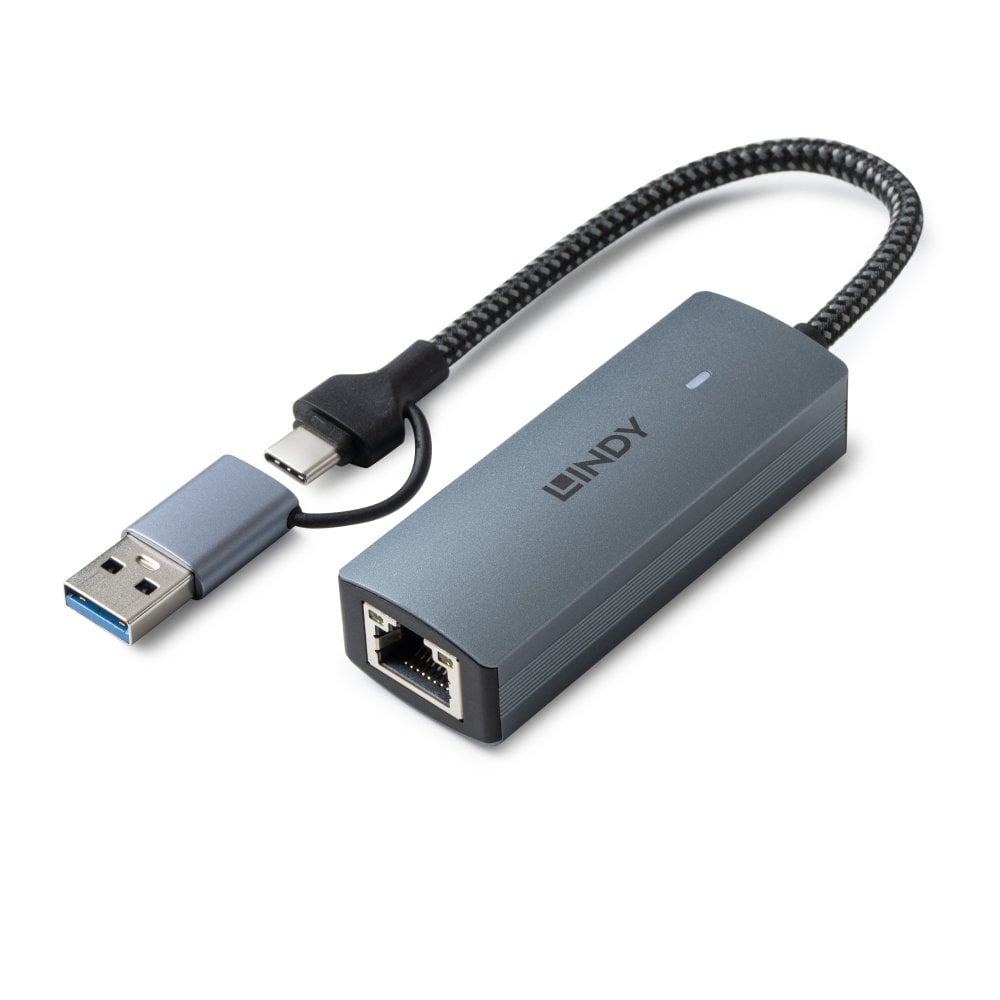

USB 3.2 Gen 1 to 5G Ethernet Converter

USB to Ethernet Converters allow users to connect USB equipped devices to a Gigabit Ethernet network.

The Lindy USB 3.2 to G Ethernet Converter is perfect for users looking to connect a computer, laptop or tablet to a 5 Gigabit Ethernet network via a Type C or Type A USB port. It supports extremely high data rates up to 5Gbps* on existing Cat.6 (or higher) cabling infrastructure.

This Converter is ideal for thin and light laptops or tablets which do not feature wired network connectivity. With its small size and lightweight design this USB 3.2 to 5G Ethernet Converter is easy and convenient to carry, and because it is powered by the USB Bus no power adapter is required. It is compatible with Thunderbolt 3 and 4 ports to cover a wide range of devices.

* please make sure that the connected switch supports 5GBASE-T (IEEE 802.3bz)

Specifications

• Interface: USB to RJ45
• Interface Standard: USB 3.2 / 3.1 Gen 1 / 3.0, 5G LAN
• Supported Bandwidth: 5 Gbps (USB), 10/100/1000Mbps/2.5Gbps/5Gbps (LAN)
• Chipset: RTL8157
• Compatibility: USB Type A / C equipped computers, Windows, Mac & Linux OS
• Power Delivery: -
• Special Features: Supports PXE and Wake on LAN (WoL)

Connectors

• Inputs: 1 x USB Type C (Male), 1 x USB Type A (Male)
• Outputs: 1 x RJ45 (Female)
• Power:
  • Standby Power< 80mA (when Ethernet cable is not connected)
  • Normal Operating Power:
    • < 80mA  10Mbps
    • < 130mA 100Mbps
    • < 300mA 1Gbps
    • < 400mA 2.5Gbps
    • < 420mA 5Gbps

Physical Properties

• Dimensions WxDxH: 71x26.3x17.9mm (2.79x1.04x0.7in)
• (Fixed) Cable Length: 150mm (5.9in)
• Housing Material: Aluminium
• Net Weight: 0.039kg (0.086lb)
• Operating Temperature: 0° to 70° C (32°F – 158°F)
• Storage Temperature: -20° to 70° C (-4°F – 158°F)
• Humidity: 5 - 95% RH (non-condensing)
• Power Requirements:
• Colour: Grey

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 133x144mm (5.24x5.67in)
• Gross Weight: 0.04kg (0.09lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH, POP, CP65

Package contents

• USB 3.2 to 5G Ethernet Converter

Purchasing Information

• No.: 43415
• EAN: 4002888434157

• UKCA DoC for 43415
