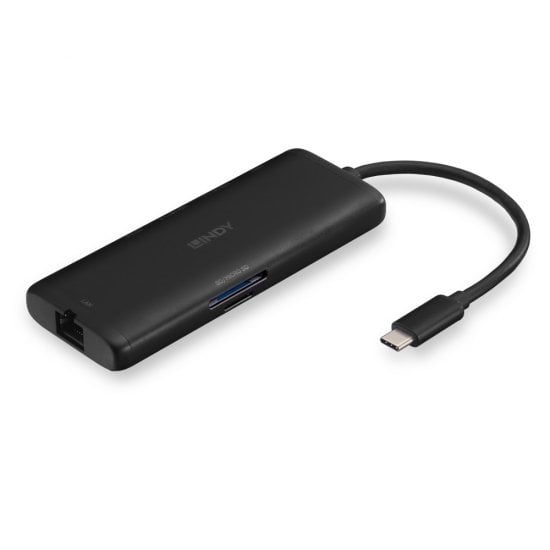

DST-Mini Laptop Docking Station | USB-C | 1x 4K HDMI® | Pass-Through Charging

The DST-Mini is a compact, multifunctional mini docking station. Part of Lindy’s expert docking station range, this product is great for those who need a lightweight, portable solution but cannot compromise on functionality. With SuperSpeed USB, 4k capability and pass-through charging, this docking station is a great solution for any hybrid worker.

Added Connectivity

The DST-Mini’s USB Type A ports are multifunctional. This means that not only do they support SuperSpeed data transfer, but also USB Battery Charging Specification 1.2 for charging mobile devices and other smaller peripherals, quickly. Delivering two USB Type A ports, a PD 3.0 USB-C, 4k HDMI®, (Micro-) SD card slots and Gigabit Ethernet, this docking station unlocks a world of connectivity for your device.

Plug-and-Play

The Lindy USB-C Laptop Mini Docking Station – 4k HDMI®, PD 3.0 100W does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.

Specifications

• Interface: USB Type C to 1x HDMI® / 1x RJ45 / 2x USB Type A / 1x USB Type C PD / 1x SD / 1x MicroSD 3.0
• Supported Bandwidth: HDMI® 2.0 with 18Gbps, USB 3.2 / 3.1 Gen 1 / 3.0 (5 Gbps), Gigabit LAN (10/100/1000Mbps)
• Maximum Input Resolution: 3840x2160@60Hz
• Maximum Output Resolution: 3840x2160@60Hz
• Chipset: ANX7518, VL817, RTL8153B, NS1081, IM2605
• Compatibility: USB Type C /Thunderbolt equipped computers with DisplayPort Alternate Mode support (incl. Apple M based processors). Windows, macOS, Linux, Android, ChromeOS
• Power Delivery: PD 3.0 up to 100W (20V 5A)
• HDCP Support: HDCP1.4/2.2/2.3
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: DisplayPort Alternate Mode, 2x Battery Charging 1.2 Port

Connectors

• Inputs: 1 x USB Type C (Male)
• Outputs: 2 x USB Type A (Female), 1 x RJ45 (Female), 1 x HDMI® (Female), 1 x SD Slot, 1 x MicroSD Slot
• Power: 1 x USB Type C PD (Female)

Physical Properties

• Dimensions WxDxH: 115x43x12mm (4.53x1.69x0.47in)
• (Fixed) cable length: 145mm (5.71in)
• Housing Material: Aluminium
• Net Weight: 0.074kg (0.16lb)
• Operating Temperature: 0° - 55°C (32°F - 131°F)
• Storage Temperature: -10°C - 70°C (14°F - 158°F)
• Humidity: 10 - 85% RH  (non-condensing)
• Power Requirements: 15W
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194mm (6.85x7.64in)
• Gross Weight: 0.1kg (0.22lb)
• Warranty (Years): 2
• Certificated: CE, FCC, REACH & RoHS, CP65

Package Contents

• USB 3.2 Type C Laptop Mini Docking Station
• Lindy Manual
