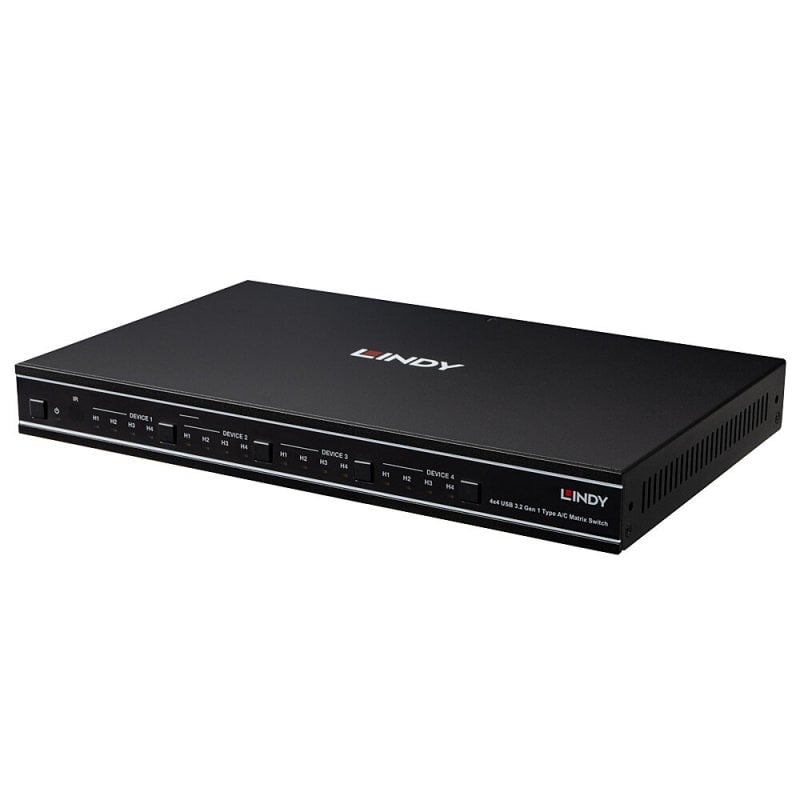

4x4 USB 3.2 Gen 1 Type A/C Matrix Switch

Part No. 43429
  • £466.38 ex. VAT
  • (FREE UK Delivery)
  • Was £479.89 ex. VAT
  • You Save: £13.51 ex. VAT ( 3%)
48 In Stock Now   |
Loading...

Product Summary

  • Supports USB 3.2 Gen 1 (USB 3.0), USB 2.0/1.1 backwards compatibility
  • Switching between computers with buttons, TCP/IP, web GUI or RS-232 commands
  • Matrix switch with presets function
  • Plug & Play, no software required
  • 2 year warranty

Flexible USB Matrix Switching for Professional Environments

The Lindy 4x4 USB 3.2 Gen 1 Type A/C Matrix Switch provides a flexible solution for sharing USB peripherals between multiple computers. Connect up to four host systems and four USB devices, then independently route devices to the required host for efficient resource sharing across professional workspaces.

True 4x4 USB Matrix Routing

Unlike a conventional USB switch, the 4x4 matrix architecture provides greater flexibility when working with multiple hosts and peripherals. Any of the four connected USB devices can be assigned to any of the four host computers, making it easy to share equipment across complex multi-system installations.

USB Type A & Type C Connectivity

Mixed USB connectivity makes the switch suitable for modern and legacy systems. Host connections comprise two USB Type B and two USB Type C ports, while the device side provides two USB Type A and two USB Type C ports. This provides greater flexibility when integrating different computers and USB peripherals into a single installation.

USB 3.2 Gen 1 Performance

Support for USB 3.2 Gen 1 provides data transfer rates up to 5Gbps, making the matrix suitable for high-bandwidth peripherals such as external storage, webcams and other professional USB devices. Backwards compatibility with USB 2.0 and USB 1.1 allows older equipment to be incorporated into the same installation.

Multiple Control Options

USB routing can be controlled directly using the front panel, remotely over TCP/IP through the intuitive web GUI, or integrated into professional control systems using RS-232 commands. These options make the matrix equally suited to straightforward desktop installations and advanced automated environments.

Save Up to 8 Preset Configurations

Frequently used routing arrangements can be stored as presets, allowing users to quickly recall complete configurations without manually switching individual connections. Up to eight presets can be saved, helping streamline workflows in environments where USB routing requirements regularly change.

Easy Web-Based Management

The integrated web GUI provides convenient network-based management of the matrix. Connected hosts and devices can be renamed for easier identification, helping administrators and operators manage more complex installations with clear and organised routing controls.

Ideal for Shared USB Resources

Share peripherals such as printers, external drives and webcams across multiple computers without repeatedly reconnecting cables. The matrix is an ideal solution for offices, meeting and conference rooms, KVM environments and industrial systems where multiple hosts need flexible access to shared USB equipment.

Designed for Professional Installation

A robust metal housing provides dependable protection for permanent professional installations, while the supplied mounting ears offer additional installation flexibility. Plug & Play operation means no additional software or drivers are required, simplifying deployment across compatible USB-equipped systems.

Key Features

  • Routes 4 USB devices between 4 host computers
  • USB 3.2 Gen 1 bandwidth up to 5Gbps
  • Backwards compatible with USB 2.0 and USB 1.1
  • 2 x USB Type B and 2 x USB Type C host connections
  • 2 x USB Type A and 2 x USB Type C device connections
  • Control via front panel, TCP/IP web GUI or RS-232
  • Stores up to 8 preset routing configurations
  • Hosts and devices can be renamed through the web GUI
  • Plug & Play operation with no software required
  • RJ-45 and RS-232 control interfaces
  • Durable metal housing with mounting ears included
  • Multi-country power supply included
  • 3 year warranty

Specifications

  • USB Standard: USB 3.2 Gen 1
  • Supported Bandwidth: 5 Gbps
  • Chipset: -
  • Compatibility: USB equipped computers
  • Power Delivery: -
  • Special Features: Switching by buttons; web GUI, RS-232 commands

Connectors

  • Inputs: 2 x USB 3.2 Type B (Female), 2 x USB 3.2 Type C (Female)
  • Outputs: 2 x USB Type A (Female), 2 x USB Type C (Female)
  • Control ports: RJ-45 (Female), RS-232 3-Pin Terminal Block
  • Power: 5.5/2.1mm

Physical Properties

  • Dimensions WxDxH: 270x166x30mm (10.63x6.54x1.18in)
  • (Fixed) Cable Length: -
  • Housing Material: Metal
  • Net Weight: 1.16kg (2.56lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 10 - 90% RH ( non-condensing)
  • Power Requirements: 24V 3.75A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 350x235x90mm (13.78x9.25x3.54in)
  • Gross Weight: 2.2kg (4.85lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH, California Proposition 65

Package Contents

  • 4x4 USB 3.2 Gen 1 Type A/C Matrix Switch
  • IR Remote
  • IR Receiver Cable, 1.5m
  • 2x USB 3.2 Gen 1 Type A-B Cable, 1.8m
  • Mounting Ears
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual

Purchasing Information

  • No.: 43429
  • EAN: 4002888434294
