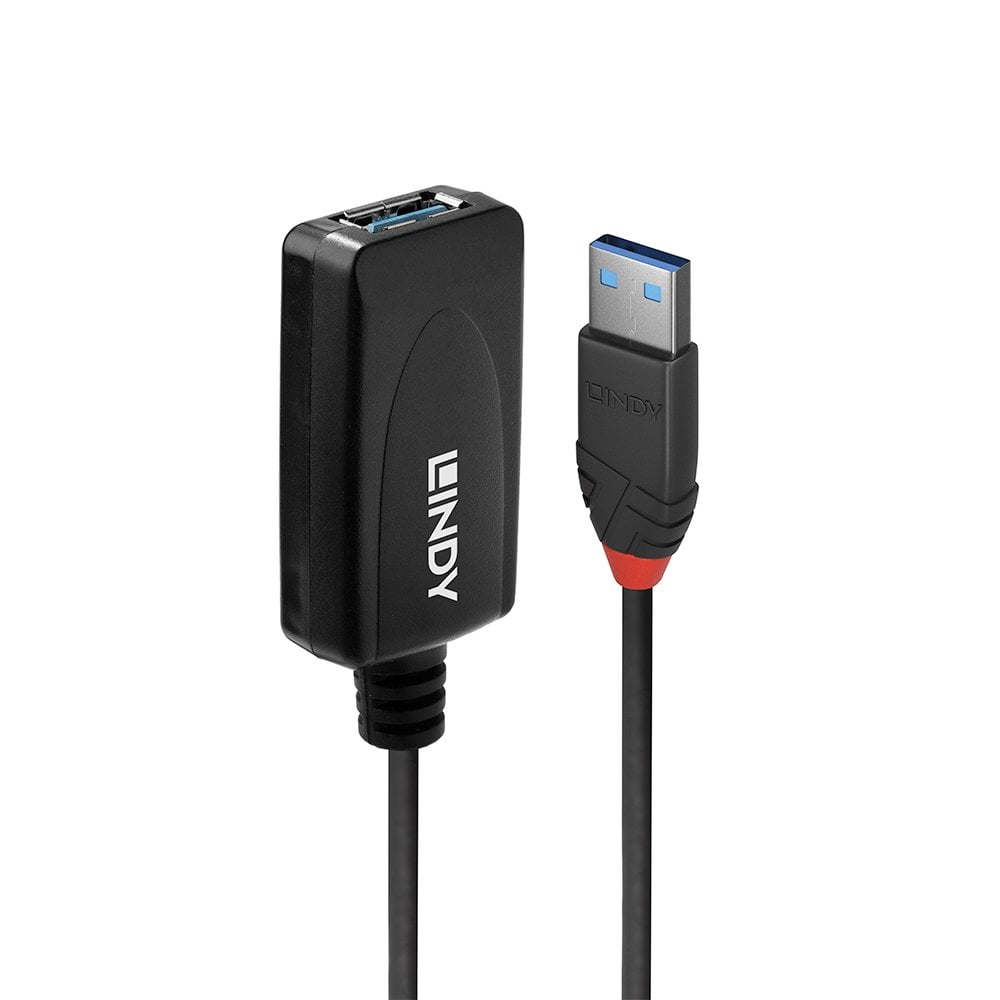

5m USB 3.2 Gen 1 Active Extension

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 5m whilst continuing to support data transfer rates of up to 5Gbps.

This USB Active Extension cable is powered by the USB Bus. Devices with high power requirements need their own power supply.

With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. It is perfect to use with cameras, in boardrooms and other video conferencing scenarios.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Connectors

• Connector A: USB Type A Male
• Connector B: USB Type A Female
• Power: -
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
USB A Male: 15.8x41x8.4mm (0.62x1.61x0.33in)
USB A Female: 25x61.5x14mm (0.98x2.42x0.55in)

Cable Construction

• Length: 5m (16.4ft)
• Standard: USB 3.2 / 3.1 Gen 1 / 3.0
• Colour: Black
• Type: Round
• Jacket Diameter: 5.3mm (0.21in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 28AWG+22AWG
• Shielding: 70% Tinned Copper

Specifications

• Supported Bandwidth: 5 Gbps
• Nominal Attenuation: -12dB@2.5GHz
• Minimum Bend Radius: 106mm (4.17in)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -10°C - 60°C (14°F - 140°F)
• Transmission Medium: Twisted Pair
• Transmission Technology: USB 3.2 / 3.1 Gen 1 / 3.0

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 236x255mm (9.29x10.04in)
• Net Weight: 0.21kg (0.46lb)
• Gross Weight: 0.23kg (0.51lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS & REACH, CP65

Package Contents

• USB 3.0 Active Extension 5m

Purchasing Information

• No.: 43155
• EAN: 4002888431552

This product is also available in other lengths

• 43156 - 10m (32.81ft)
• 43099 - 15m  (49.21ft)

• UKCA DOC for 43155
• UKCA DoC for 43155 V2
• Product Safety Information
• Datasheet for 43155
