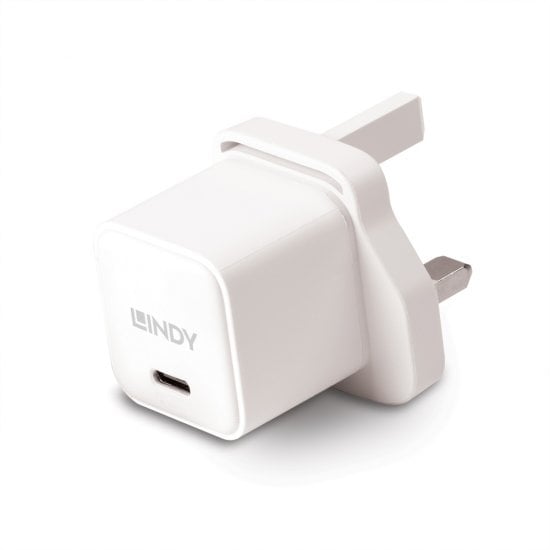

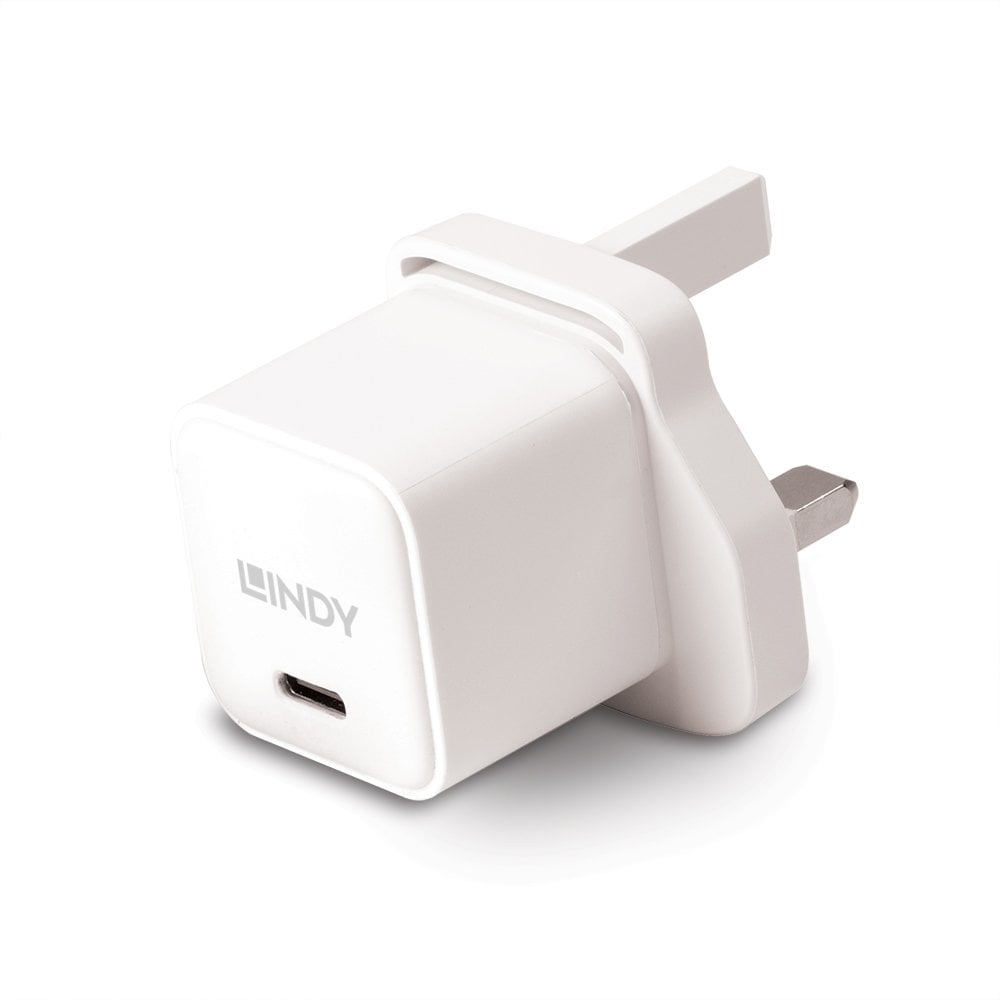

20W USB Type C GaN Charger

The Lindy 20W USB Type C PD Charger is a compact, efficient solution for charging many devices. It provides fast charging for USB Type C PD and PPS-enabled devices. Thanks to the small design the charger can easily be carried and is always available when power is needed.

Featuring a single Type C female USB port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 20W, connected devices can be provided with faster charging than what is possible from a standard Type C charger supplied with many devices.

For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection.

Connectors

• Input: UK Plug
• Output: USB Type C Female

Specifications

• Power Input : 100-240VAC, 50/60Hz 0.5A
• Power Output: 5V/3A, 9V/2.22A, 12V/1.67A
• USB Power Delivery: PD 3.0
• Max. Total Power: 20W
• Output Voltage Accuracy: ± 5%
• Average active efficiency: 5V 83.37%, 9V 87.32%,12V 86.40%
• Efficiency at low load (10%): 80.06%
• No-load Power Consumption: ≤ 0.075 W
• Additional Features: Overcurrent, overvoltage, overtemperature and short circuit protection

Physical Properties

• Dimensions (approx.) WxDxH: 28x31x29.6mm (1.1x1.22x1.17in)
• Connector Material: Copper
• Housing Material: PVC
• Net Weight: 0.04kg (0.09lb)
• Operating Temperature: 0°C - 25°C (32°F - 77°F)
• Storage Temperature: -20°C - 80°C (-4°F - 176°F)
• Humidity: 0 – 90% RH (non-condensing)
• Colour: White

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 80x100x45mm (3.15x5.12x1.77in)
• Gross Weight: 0.06kg (0.13lb)
• Warranty (Years): 2
• Certification: CE, UKCA, RoHS, REACH, ErP

Package Contents

• 20W USB Type C GaN Charger
• Lindy Manual

Purchasing Information

• No.: 73411
• EAN: 4002888734110
