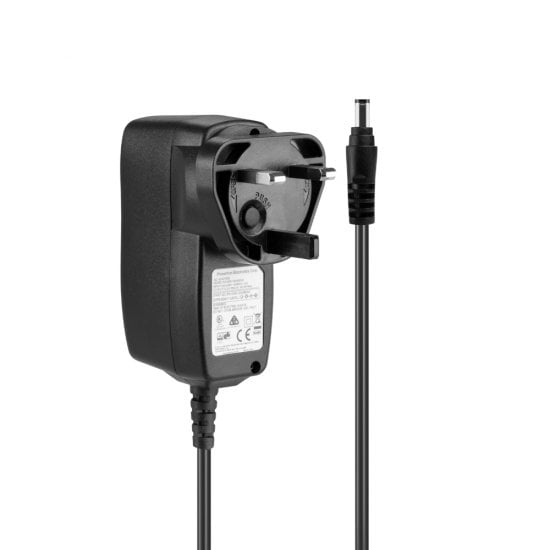

12VDC 3A Multi-country Power Supply, 5.5/2.5mm

The Lindy multi-country power supply is a regulated and suitable solution for powering connected equipment which require an output voltage and amperage up to 12V 3A.

The included UK, EU, US & AUS adapters allow for global use of the power supply, while a standard DC jack ensures simple fitting with compatible devices.

Specifications

• Input Voltage: 100…240VAC
• Input AC Frequency: 50…60Hz
• Output Voltage: 12V
• Output Voltage Accuracy: ±5%
• Output Current (max.): 3A
• Output Power: 36W
• Average active efficiency: 0.874
• Efficiency at low load (10%): 0.783
• No-load Power Consumption: 0.1W

Physical Properties

• Dimensions (approx.) WxDxH: 43.5x93x60mm (1.71x3.66x2.36in)
• DC Cable Length: 1.2m (3.94ft)
• DC Connector Size: 5.5/2.5mm
• Housing Material: Plastic
• Net Weight: 0.21kg (0.46lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Operating Humidity: 0 - 75% RH (Non-condensing)
• Storage Humidity: 0 - 95% RH (Non-condensing)
• Colour: Black

Miscellaneous

• Manufacturer Name: Powertron
• Commercial Registration No. : 12649262
• Manufacturer Address: 6F, No.115, Lide St., Zhonghe Dist., New Taipei City 23556,Taiwan
• Manufacturer Model No.: PA1045-120HIB300
• Packaging Type: Carton Box
• Packaging Dimensions: 155x60x120mm (6.1x2.36x4.72in)
• Gross Weight: 0.265kg (0.58lb)
• Warranty (Years): 2
• Certificated:
• EMC
• LVD
• ErP
• UL
• CCC
• RCM
• PSE
• RoHS
• REACH
• California Proposition 65

Package Content

• Multi-country Power Supply
• UK, EU, US & AUS Adapters
• Lindy Manual

Purchasing Information

• No.: 73809
• EAN: 4002888738095
