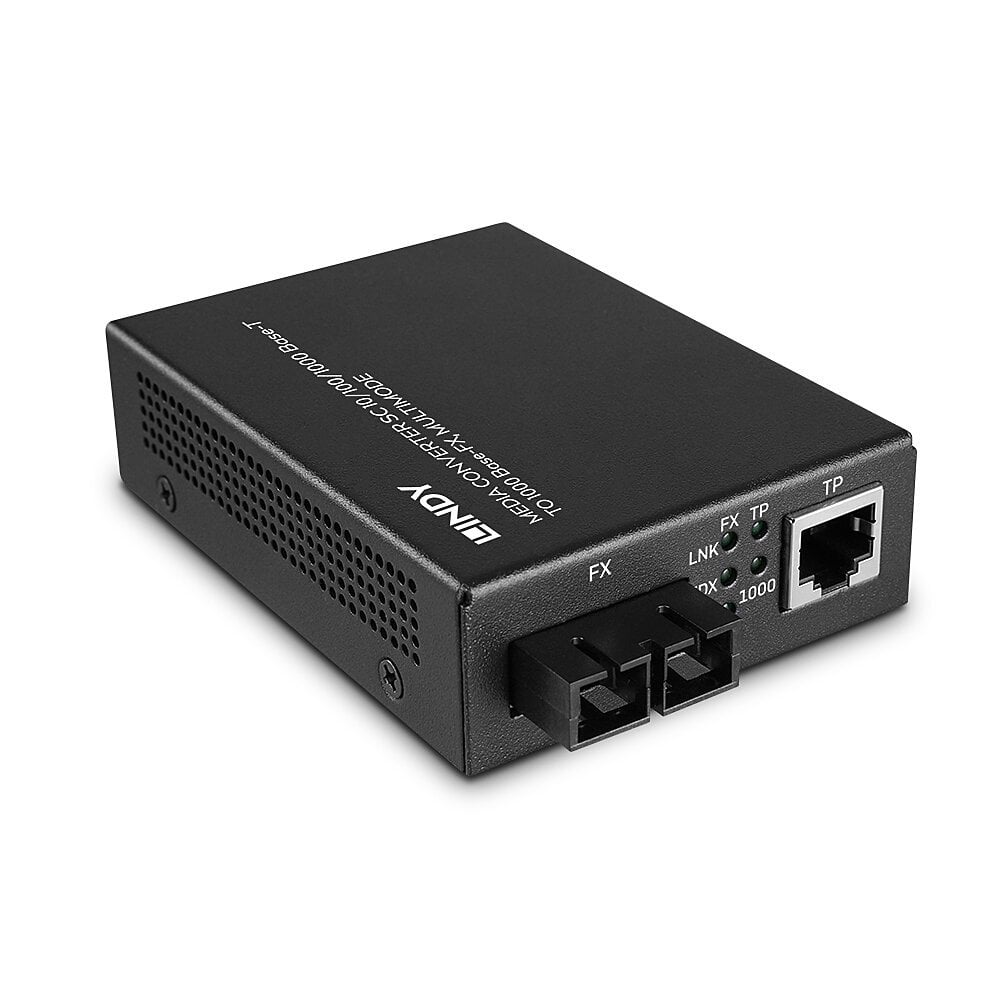

Media Converter SC 10/100/1000 Base-T to 1000 Base-FX, Multimode

This Lindy Media Converter extends the connection between two network devices at distances up to 550m using multimode fibre optic cables. The installation is plug-and-play and the user only has to connect to the RJ45 port with a Cat.5e or above Ethernet cable and the fibre port with a SC Multimode 50/125 or 62.5/125 Duplex fibre optic cable. No configuration needed, easily integrated into any existing Ethernet network  and supports Full/Half duplex mode and auto-negotiation on both ports.

The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.

Specifications

• Fibre Support: Multimode (62.5/125μm or 50/125μm)
• Maximum Distance: 550m (1804.44ft)
• Wavelength: 850nm
• Compatibility: IEEE 802.3
• Special Feature: -

Connectors

• Copper ports: RJ45
• Optical ports: SC Duplex
• Power: 3.5/1.35mm

Physical properties

• Dimensions (approx.) WxDxH: 95x70x25mm (3.74x2.76x0.98in)
• Housing Material: Metal
• Net Weight: 0.54kg (1.19lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -10°C - 70°C (14°F - 158°F)
• Humidity: 5% – 95% (non condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 165x155x45mm (6.5x6.1x1.77in)
• Gross Weight: 0.65kg (1.43lb)
• Warranty (Years): 2
• CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• Media Converter
• Multi-Country Power Supply (EU, UK, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 25119
• EAN: 4002888251198

• Tech Data Sheet for 25119 - Media Converter SC 10/100/1000 Base-T to 1000 Base-FX, Multimode
• Product Safety Information
