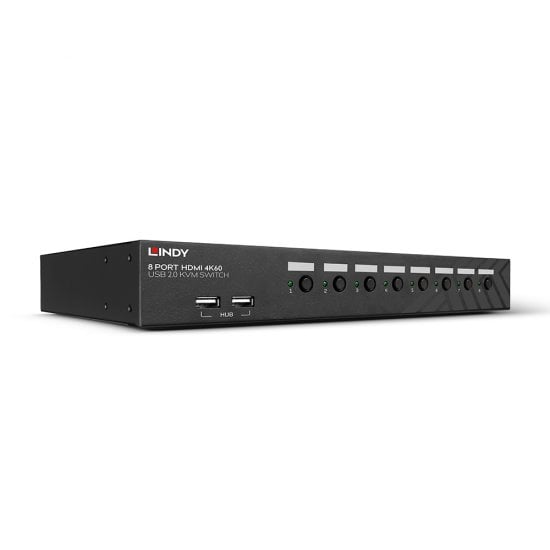

8 Port HDMI 4K60, USB 2.0 & Audio KVM Switch

This advanced KVM Switch has been designed for use with PCs and Macs. It features HDMI® video ports and a two port USB 2.0 hub for connecting and sharing peripherals. With audio support, you can also connect speakers or headsets.

The switch occupies only a single 1U space in a 19" rack and supports screen resolutions of up to 4K Ultra HD 60Hz, great for graphical content in gaming setups, video editing or controlling multiple workstations. It provides 3 switching modes, via keyboard hotkeys, front panel buttons and RS-232 commands.

A local console can be connected to the 2 USB and HDMI® ports on the rear panel while the built-in 2 port USB 2.0 hub saves money on requiring additional devices by sharing peripherals between the connected computers. The unique switching arrangement allows the USB hub to be switched independently of the PCs for uninterrupted printing, scanning or external drive access. Options can be accessed only via keyboard hotkeys or RS-232 commands.

LED indicators show the status of the selected channel.

Please Note: connection cables are not included. HDMI®, USB A to B, and 3.5mm audio cables are required for each connected computer.

Specifications:

• AV Interface: HDMI®
• Console Interfaces: USB
• Interface Standard: HDMI® 2.0, USB 2.0
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• Supported Audio: Analogue Stereo
• Separate Audio Ports: 3.5mm (Female)
• Serial Interface: DB9 (Female)
• Console Number: 1
• Max Number PC/Server: 8
• Cascadable: No
• Switching Method: Port buttons, Hotkey (configurable), RS-232 commands
• 19" Rack Mountable: Yes (1U - Rack Mount Brackets included)
• Special features: shared USB ports, autoscan, LED display

Connectors:

• Console Interfaces: HDMI® (Female), 2 x USB Type A HID (Female), 3.5mm (Female)
• PC/Server Interfaces: 8 x HDMI® (Female), 8 x USB 2.0 Type B (Female), 8 x 3.5mm (Female)
• Other Interfaces: 2 x USB 2.0 Type A (Female) shared ports (front panel), RS-232 DB9 (Female)
• Power: 5.5/2.1mm DC

Physical Properties:

• Dimensions (approx.) WxDxH: 300x164x44mm (11.81x6.46x1.73in)
• Housing Material: Metal
• Net Weight: 1.79kg (3.95lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0~90% RH (non-condensing)
• Power Requirements: 9VDC 2A
• Colour: Black

Miscellaneous:

• Packaging Type: Carton box
• Packaging Dimensions: 566x104x245mm (22.28x4.09x9.65in)
• Gross Weight: 2.06kg (4.54lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH, California Proposition 65, TAA

Package contents:

• KVM Switch
• 2 x 19" Rack Mount Bracket with Screws
• RS-232 DB9 Female to Male cable, 1.8m
• Multi-Country PSU (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information:

• No.: 39538
• EAN: 4002888395380
