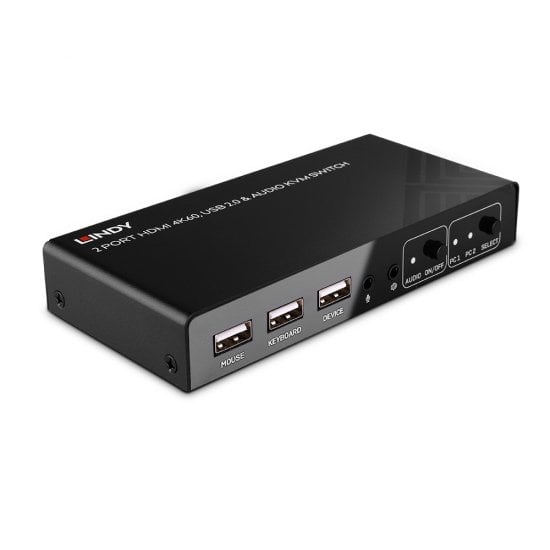

2 Port HDMI 4K60, USB 2.0 & Audio KVM Switch

The Lindy 2 Port HDMI® 4K60, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over two HDMI® equipped PCs from a single keyboard, mouse and monitor setup.

Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or quad system control workstations. The additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut.

The audio output ports on the main unit also allow users to connect headphones or speakers to add immersive 2CH audio and a microphone, pressing the Audio On/Off button on the front panel mutes these devices. These ports are not connected to the HDMI® signal but to a built-in USB converter while an additional USB device such as a printer, scanner or hard drive can be connected to the additional USB port on the front panel.

The KVM switch features two switching options including push buttons on the unit and keyboard hotkeys provide simple, reliable control for the user, great for both professional and first time users.

Specifications

• AV Interface: HDMI®
• Console Interfaces: USB
• Interface Standard: HDMI® 2.0, USB 2.0
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8Bit
• HDCP Support: 2.2
• Supported Audio: Analogue Stereo
• Separate Audio Ports: 2 x 3.5mm (Female)
• Serial Interface: -
• Console Number: 1
• Max Number PC/Server: 2
• Cascadable: -
• Switching Method: Push Button, Hotkey Switching
• 19" Rack Mountable: -
• Special Features: USB 2.0 device port, Audio ports with On/Off button, Active LED Indicators

Connectors

• Console Interfaces: HDMI® Type A (Female), 3 x USB 2.0 Type A (Female), 2 x 3.5mm (Female)
• PC/Server Interfaces: 2 x HDMI® Type A (Female), 2 x USB 2.0 Type B (Female)
• Other Interfaces: -
• Power: 3.5/1.35mm DC socket

Physical Properties

• Dimensions (approx.) WxDxH: 143x68x23mm (5.63x2.68x0.91in)
• Housing Material: Metal
• Net Weight: 0.4kg (0.88lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -10°C - 60°C (-14°F - 140°F)
• Humidity: 5 - 80% RH (non-condensing)
• Power Requirements: 5VDC 2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 207x187x56mm (8.15x7.36x2.2in)
• Gross Weight: 0.6kg (1.32lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• HDMI® KVM Switch
• Multi-country PSU (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 32809
• EAN: 4002888328098

• Manual for 32809-32810 2-4 Port HDMI 4K60, USB 2.0 & Audio KVM Switch
• UKCA doc for 32809 2 Port HDMI 4K60, USB 2.0 & Audio KVM Switch
• Tech Data Sheet for 32809 - 2 Port HDMI 4K60, USB 2.0 & Audio KVM Switch
• Product Safety Information
