8m USB 3.2 5Gbps & DP 1.4 Type C Fibre Optic Hybrid Cable

Part No. 43393
  • £372.22 inc. VAT
  • (FREE UK Delivery)
Sorry, out of stock   |
Loading...

Product Summary

  • 8m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable for data and video extension
  • Data transfer rates up to 5Gbps
  • Supports DisplayPort Alternate Mode and DP 1.4 (2 lanes) with video resolutions up to 4K 3840x2160@30Hz
  • Supports Power Delivery up to 60W (20V 3A)
  • 3 year warranty
------------------ SECTION BREAK ------------------

SECTION 1 - HERO IMAGE

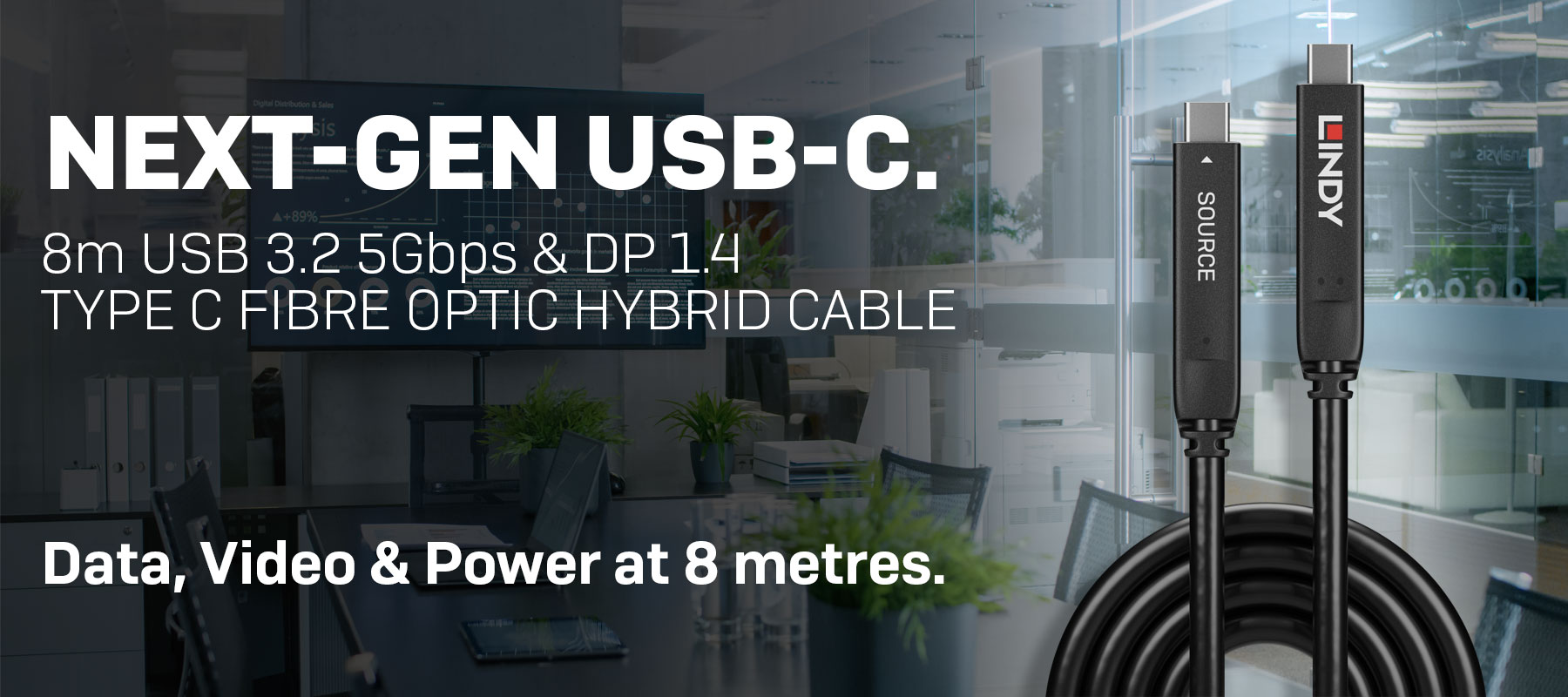

Product Image
------------------ SECTION BREAK ------------------

SECTION 2 - HERO HEADLINE & SUBLINE



Go the Distance with Confidence.


------------------ SECTION BREAK ------------------

SECTION 3 - INTRO TEXT

Professional Grade USB-C. Powered by Fibre Optics.

The The Lindy 8m USB 3.2 Gen 1 & DP 1.4 Fibre Optic Hybrid Cable is a high-performance USB-C cable that transmits data, video, and power over a full 8-metre run using fibre optic technology. Supporting USB 3.2 Gen 1 data transfer rates up to 5Gbps, DisplayPort 1.4 Alt Mode for 4K@30Hz video, and Power Delivery up to 60W, this is the ideal solution for professional AV, education, and workspace environments where extended distance and EMI resistance are critical.

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 4 - AT A GLANCE

SECTION 4 - AT A GLANCE

AT A GLANCE



8m USB-C hybrid cable

Simplifies long-distance USB-C connections.

Fibre optic transmission

Maintains high signal integrity and EMI resistance.

USB 3.2 Gen 1 – 5Gbps

Fast, stable data for storage, AV and peripheral use.

DisplayPort 1.4 Alt Mode

Supports 4K UHD video at 30Hz.

Power Delivery up to 60W

Delivers charging power to laptops and devices.

Flexible construction

Easy to install.

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 7 - INSTALLATION EXAMPLE

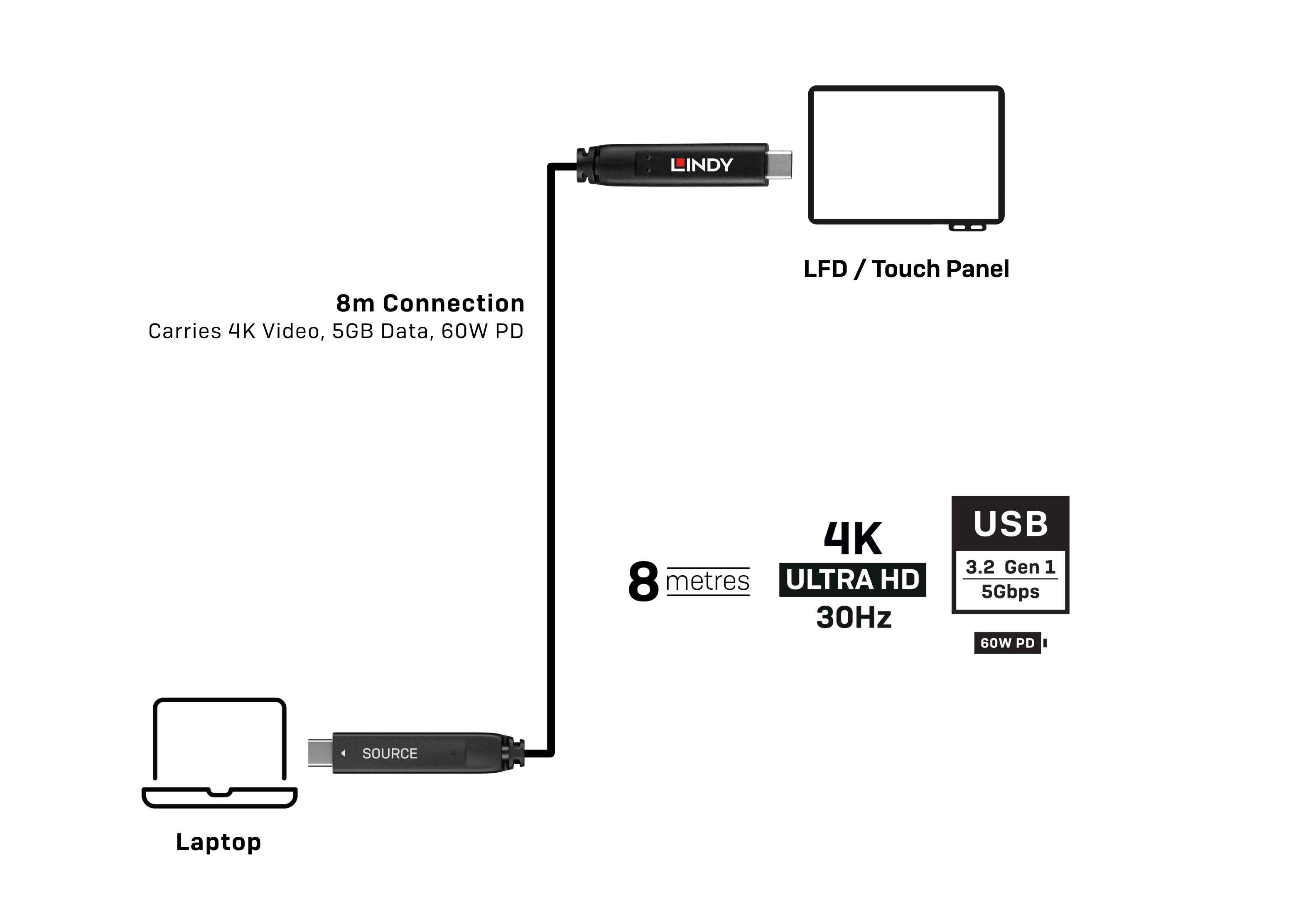

INSTALLATION EXAMPLE


 alt=
------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 8 - TYPICAL SECTORS

TYPICAL SECTORS



Office

Education Icon

Education & Training

Retail Icon

Retail & Point of Sale

Meeting Rooms

Digital Signage

Government & Public sector

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 9 - APPLICATIONS

APPLICATIONS



Meeting & Conference Rooms

Connect laptops to LFDs and USB-C displays across long distances.

Classrooms & Auditoriums

Clean, interference-resistant AV installation.

Digital Signage

Integrate display, power, and control in one cable run.

Creative Studios

Power and connect USB-C monitors and devices at a distance.

Enterprise Workstation

Enable high-speed, high-resolution connections in flexible setups.

Retail & Point-of-Sale Systems

Clean, long-distance connections from back-office to displays.

------------------ SECTION BREAK ------------------

SECTION DIVIDER LINE


------------------ SECTION BREAK ------------------

SECTION 10 - SUMMARY / CONCLUSION

ONE CABLE. NO COMPROMISE. DISTANCE SOLVED WITH LINDY.



When distance, reliability, and signal quality are critical, the Lindy 8m Fibre Optic USB-C Hybrid Cable is the smart choice. Supporting fast data, 4K video, and device charging over 8 metres, this is the all-in-one long-distance USB-C cable for serious installations.



Please Note:

  • USB devices which only support DP signals over 4 lanes might not be compatible.
  • Displays must have set USB settings to USB 3.0 in order to receive video via Type C.
  • This product contains 2 USB 2.0 hubs, which needs to be considered if the product is deployed in a larger installation in connection with other devices.
------------------ SECTION BREAK ------------------

Connectors

  • Connector A: USB Type C Male
  • Connector B: USB Type C Male
  • Power: PD 20V / 3A (60W)
  • Housing Material: Plastic
  • Connector Plating: Stainless Steel + Solder Nickel 50u" min.
  • Pin Construction: Copper Alloy + Mating area Au
  • Pin Plating: Mating area: 2µ" Au min.
  • Dimensions (approx.) WxDxH: 55x9x12.35mm (2.17x0.35x0.49in)

Cable Construction

  • Length: 8m (26.25t)
  • Standard: USB 3.2 / 3.1 Gen 1
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 6.5mm (0.26in)
  • Jacket Material: PVC
  • Conductor Material: -
  • Conductor Gauge: 21AWG*3 (Power)
  • Shielding: Tinned Copper



Specifications

  • Supported Bandwidth: 5Gbps (USB 3.2 Gen 1), 16.2Gbps (DP 1.4, 2 lanes)
  • Maximum Resolution: 4K 3840x2160@30Hz
  • Included Hubs: 2x USB 2.0
  • Nominal Attenuation: ≤10dB/km@850nm,≤8dB/km@1300nm
  • Minimum Bend Radius: Installation:100mm; Operation: 50mm (IEC-60794-1-21)
  • Maximum Tensile Load: Installation: 350N; Operation: 200N IEC-60794-1-21
  • Operating Temperature: -10°C to 70°C (14°F - 158°F)
  • Storage Temperature: -40°C to 85°C (-40°F - 185°F)
  • Transmission Medium: Optical Fiber 62.5/125 Multimode Fiber
  • Transmission Technology: 850nm Laser Optical

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
  • Net Weight: 0.61kg (1.34lb)
  • Gross Weight: 0.77kg (1.7lb)
  • Warranty (Years): 3
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • 8m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable
  • Lindy manual

Purchasing Information

  • No.: 43393
  • EAN: 4002888433938
