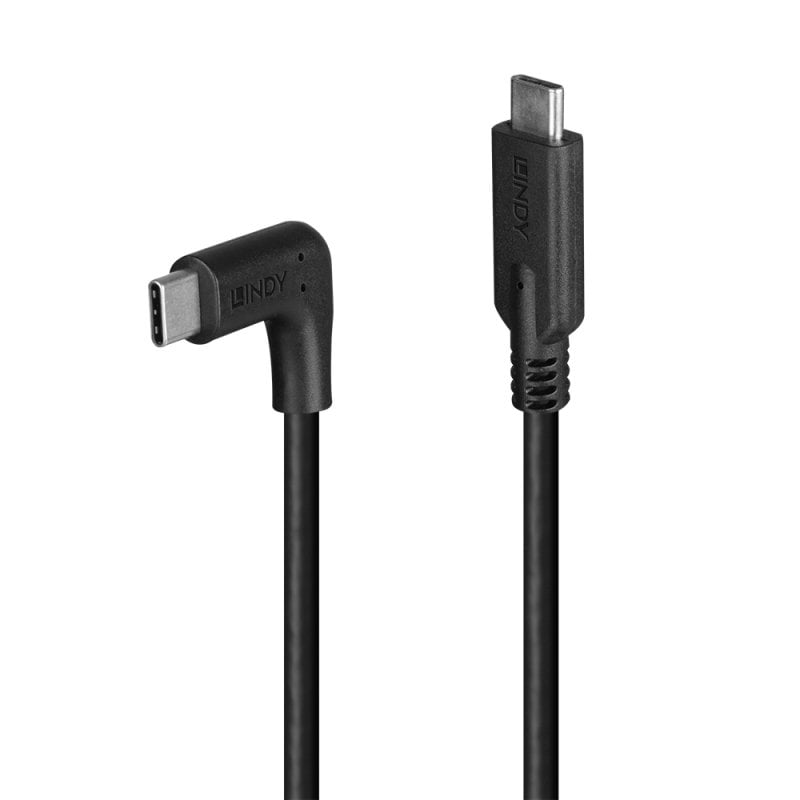

1m USB 3.2 USB-C to Right-Angled USB-C Cable, 10Gbps, 4K60, 60W PD

The USB 3.2 Gen 2x1 Type C, 90° Right Angle, 60W PD cables from Lindy are designed for reliable performance while enhancing cable management. The 90° right-angled USB Type C connector ensures optimal cable positioning to reduce strain and prevent damage, making it perfect for tight spaces like devices positioned close to walls.

<p< p="">

Supports 60W (20V 3A) charging with USB Power Delivery, allowing for the voltage and current to be automatically adjusted to the needs of connected devices such as mobile phones, tablets and laptops to prevent overvoltage and overcurrent.

USB 3.2 Gen 2x1 offers high-speed 10Gbps data transfer, making it ideal for moving large files from external storage or connecting to modern peripherals. It ensures smooth, efficient performance for both everyday use and professional workloads.

DisplayPort Alternate Mode enables crisp 4K video output at 60Hz, making them perfect for connecting to high-resolution displays and AV equipment. The robust double-shielded design with tinned copper conductors and nickel-plated connectors provides reliable signal quality and solid protection against EMI/RFI in everyday and office environments.

With reversible USB Type C connectors and full bi-directional communication, these cables guarantee simple, reliable connections every time.

Connectors

• Connector A: USB 3.2 Type C Male
• Connector B: USB 3.2 Type C Male 90° Right Angle
• Housing Material: PVC
• Shielding in head shell: -
• Connector Plating: Nickel
• Pin Construction: Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
  • USB Type C: 6.4x38x12.3mm (0.25x1.5x0.48in)
  • USB Type C: 11.1x25.8x24.2mm (0.44x1.02x0.95in)

Cable Construction

• Jacket Diameter: 5mm (0.2in)
• Jacket Material: PVC
• Conductor Material: Copper
• Conductor Gauge Power: 22AWG
• Conductor Gauge Data: 28AWG
• Shielding: Aluminium Foil

Specifications

• Length: 1m (3.28ft)
• Colour: Black
• Type: Round
• Standard: USB 3.2 Gen 2x1
• Supported Bandwidth: 10Gbps
• Maximum Power: PD 3.0 with up to 60W (20V 3A)
• E-Mark: No
• Maximum Resolution: 4K 4096x2160@60Hz
• Supported Protocols: USB 3.2, USB 2.0, DisplayPort 1.4
• Nominal Attenuation: 0.5Mhz- 400Mhz < 5.8db
• Minimum Bend Radius: 50mm (1.97in)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: 0°C - 70°C (32F - 158°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, California Proposition 65

Purchasing Information

• No.: 32018
• EAN: 4002888320184

This product is also available in other lengths

• 32017 - 0.5m (1.64ft)
• 32018 - 1m (3.28ft)
• 32019 - 1.5m (4.92ft)
