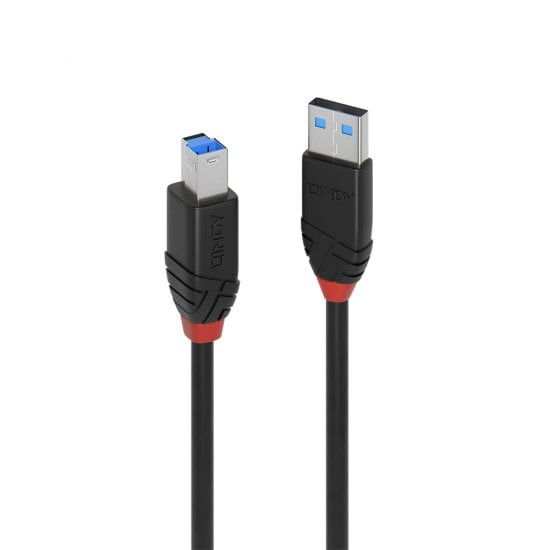

10m USB 3.2 5Gbps Type A to B Slimline Active Cable

The Lindy USB 3.2 Gen 1 Slimline Active Cable enables reliable 10m connectivity to USB-B devices, such as printers and scanners, while maintaining data transfer rates of up to 5Gbps. With USB-A and USB-B male connectors, it allows direct connections to Type B devices at extended distances, providing flexible placement options.

Compatible with all USB Type A-equipped computers, this cable offers easy plug-and-play installation. Its slim design, featuring active electronics in a compact cable mold, allows for easy installation—unlike other active USB cables with bulkier connectors.

This extender is recommended for use with low-power or self-powered USB peripherals and is not suitable for high-power devices unless they have their own power source.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Connectors

• Connector A: USB Type A Male
• Connector B: USB Type B Male
• Power: -
• Housing Material: PVC
• Connector Plating: Nickel plated shell
• Pin Construction: Phosphor Bronze
• Pin Plating: Gold 3µm
• Dimensions (approx.) WxDxH:
USB A Male: 15.5x35x7.8mm (0.61x1.38x0.31in)
USB B Male: 12.2x35x13.5mm (0.48x1.38x0.53in)

Cable Construction

• Length:  10m (32.8ft)
• Standard: USB 3.1 Gen 1 / 3.0
• Colour:  Black
• Type: Round
• Jack Diameter: 5.5mm (0.22in)
• Jack Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 28/28/24AWG
• Shielding: Copper Braid 65%

Specifications

• Supported Bandwidth: 5 Gbps
• Nominal Attenuation: 100MHz-7.5GHz < -25db
• Minimum Bend Radius: 55mm (2.2in)
• Maximum Tensile Load: 8N
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -40°C - 85°C (-40°F - 185°F)
• Transmission Medium: Twisted Pair
• Transmission Technology: USB 3.0

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 230x198x63mm (9.06x7.8x2.48in)
• Net Weight: 0.4kg (0.88lb)
• Gross Weight: 0.528kg (1.16lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS & REACH

Package Contents

• USB 3.0 Active Cable Slim 10m
• Lindy Manual

Purchasing Information

• No.: 43227
• EAN: 4002888432276
