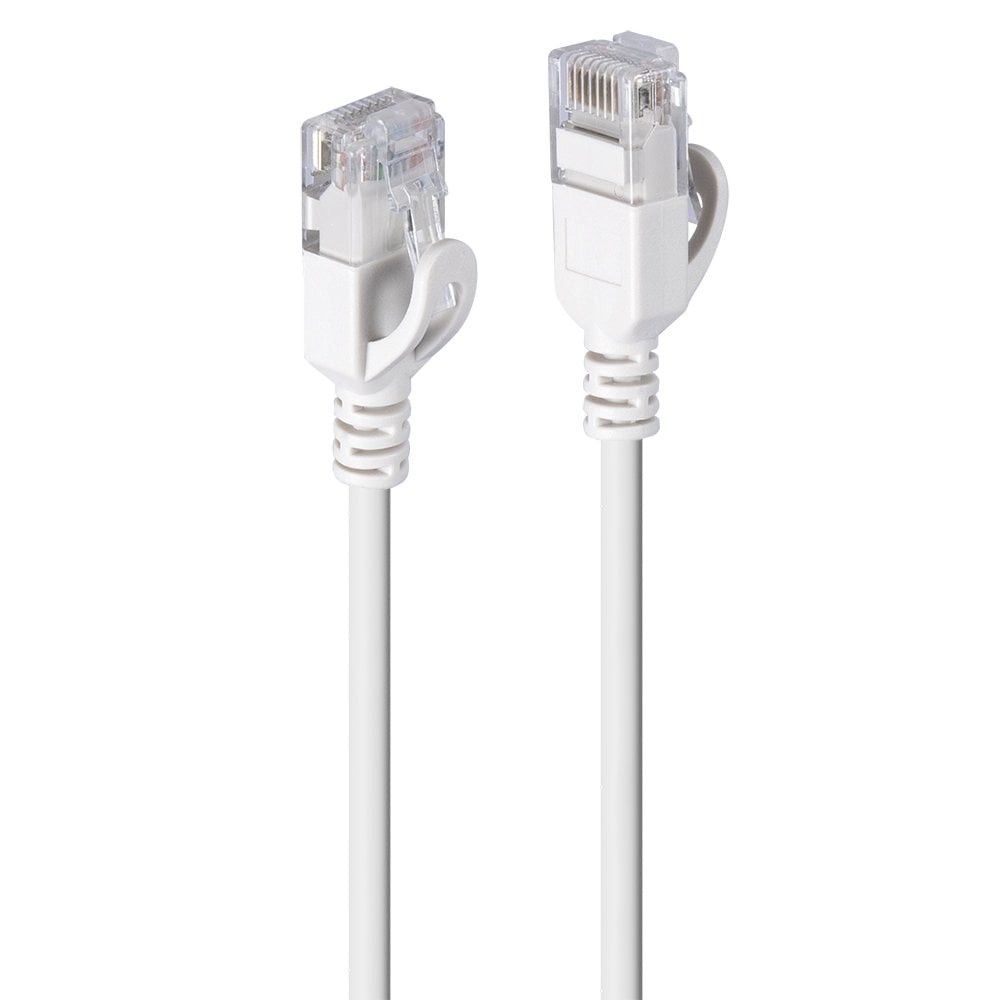

5m Cat.6A U/FTP Ultra Slim Ethernet Cable, Grey

Cat.6A U/FTP Ultra slim network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.

Cat 6A cable, for operating frequencies up to 500MHz, shielded with foil shielded with single pair shielding (U/FTP). Designed as an ultra slim cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The very flexible and thin cable construction allows the cables to be installed in restricted or limited spaces such as server rooms or network hubs.

Available lengths: 0.3m, 1m, 1.5m, 2m, 3m, 5m.

Connectors

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: Nickel
• Pin Construction: Brass
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH: 11x28x6mm (0.43x1.10x0.24in)

Cable Construction

• Length: 5m (16.48ft)
• Colour: Grey
• Type: Cat.6A
• Jacket Diameter: 3.6mm (0.07in)
• Jacket Material: PVC
• Conductor Material: Bare Copper
• Conductor Gauge: 30AWG
• Shielding: Aluminium Foil

Specifications

• Supported Bandwidth: 500MHz
• Nominal Attenuation: 49.3dB/100m @ 500MHz
• Minimum Bend Radius: 60mm (2.36in)
• Operating Temperature: -10°C - 60°C (14F - 140°F)
• Storage Temperature: -10°C - 40°C (14F - 104°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL (Raw Cable), California Proposition 65

Purchasing Information

• No.: 47596
• EAN: 4002888475969

This product is also available in other lengths:

• 47590 - 0.3m (0.98ft)
• 47591 - 0.5m (1.64ft)
• 47592 - 1m (3.28ft)
• 47593 - 1.5m (4.92ft)
• 47594 - 2m (6.56ft)
• 47595 - 3m (9.84ft)
• 47596 - 5m (16.48ft)
