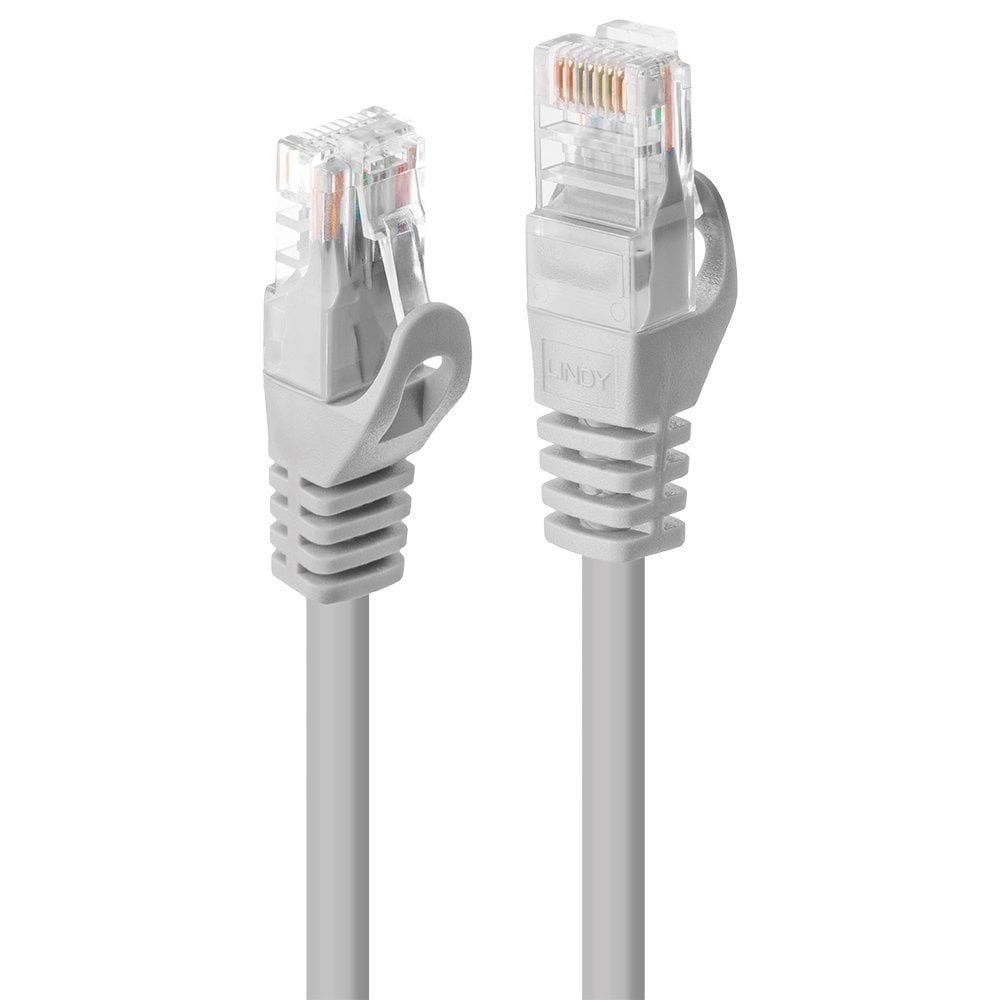

3m Cat.5e U/UTP Ethernet Cable, Grey

Cat.5e U/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

Cat.5e cable, designed for operating frequencies up to 100MHz. The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT, FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

• Connectors

  • Connector A: RJ45 Male
  • Connector B: RJ45 Male
  • Housing Material: Polycarbonate
  • Connector Plating: -
  • Pin Construction: Copper Alloy
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)

  Cable Construction

  • Length: 3m (9.84ft)
  • Colour: Grey
  • Type: Cat.5e
  • Jacket Diameter: 4.8mm (0.19in)
  • Jacket Material: PVC
  • Conductor Material: Copper
  • Conductor Gauge: 26AWG
  • Shielding: -

  Specifications

  • Supported Bandwidth: 100MHz
  • Nominal Attenuation: 24dB/100m @100MHz
  • Minimum Band Radius: 57mm (2.24in)
  • Operating Temperature: -10°C - 60°C (14°F - 140°F)
  • Storage Temperature: -20°C - 75°C (-4°F - 167°F)

  Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL (Raw Cable), California Proposition 65

  Purchasing Information

  • No.: 48364
  • EAN: 4002888483643

  This product is also available in other lengths

  • 48360 - 0.3m (0.98ft)
  • 48361  - 0.5m (1.64ft)
  • 48362 - 1m (3.28ft)
  • 48363 - 2m (6.56ft)
  • 48364 - 3m (9.84ft)
  • 48365 - 5m (16.44ft)
  • 48366 - 7.5m (24.61ft)
  • 48367 - 10m (32.81ft)
  • 48368 - 15m (49.21ft)
  • 48369 - 20m (65.62ft)
  • 48370 - 30m (98.43ft)
  • 48371 -  40m (131.23ft)
  • 48372 - 50m (164.04ft)
  • 48373 - 60m (196.85ft)
  • 48374 - 70m (229.66ft)
  • 48375 - 80m (262.67ft)
  • 48376 - 90m (295.28ft)
  • 48377 - 100m (328.08ft)
