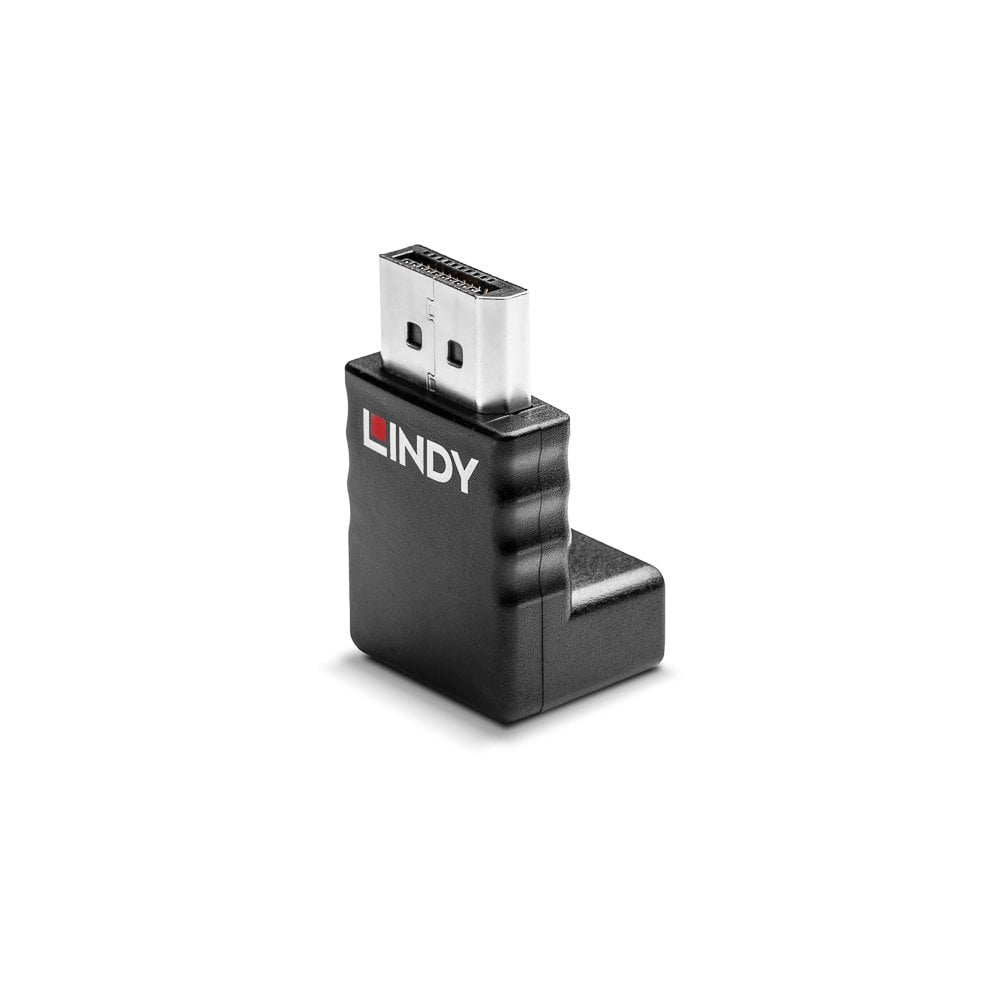

DisplayPort 1.2 Downward Angled Adapter

The Lindy DisplayPort 1.2 downward angled adapter is a compact solution for connecting DisplayPort cables to DP displays or devices with recessed ports, or within limited space where cable connector sizing may affect installation. This adapter allows for a 90° connection in a downward direction if ports are situated on the back of the display or PC.

With DisplayPort 1.2 support, this adapter can be used with DisplayPort 1.2 cables, devices and monitors while also being backwards compatible with previous DisplayPort specifications. 4K UHD 3840x2160@60Hz resolutions are supported by the adapter, ensuring this is an ideal tool within wall mounted digital signage installations, gaming setups or educational spaces, with no lasting impact on a connected cables strain relief or lifespan.

Please note: it is common for desktop PCs to have DP ports function in the opposite configuration. If this is applicable, please check whether this or the opposing adapter (41365) is required.

Specifications

• AV Interface: DisplayPort
• Interface Standard: DisplayPort 1.2
• Supported Bandwidth: 21.6Gbps
• Maximum Resolution:
  3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 1.4
• Supported Audio: Pass-through

Connectors

• Input: DisplayPort (Male)
• Output: DisplayPort (Female)

Physical Properties

• Dimensions (approx.) WxDxH: 28x23.4x19.9mm (1.1x0.92x0.78in)
• Housing Material: PVC
• Net Weight: 0.01kg (0.02lb)
• Operating Temperature: 5°C - 60°C (41°F - 140°F)
• Storage Temperature: -10°C - 75°C (14°F - 167°F)
• Humidity: 20 -75% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 133x144mm (5.24x5.67in)
• Gross Weight: 0.021kg (0.05lb)
• Warranty (Years): 10
• Certificated: RoHS, REACH & California Proposition 65

Package Contents

• DisplayPort Adapter

Purchasing Information

• No.: 41366
• EAN: '400288841366
