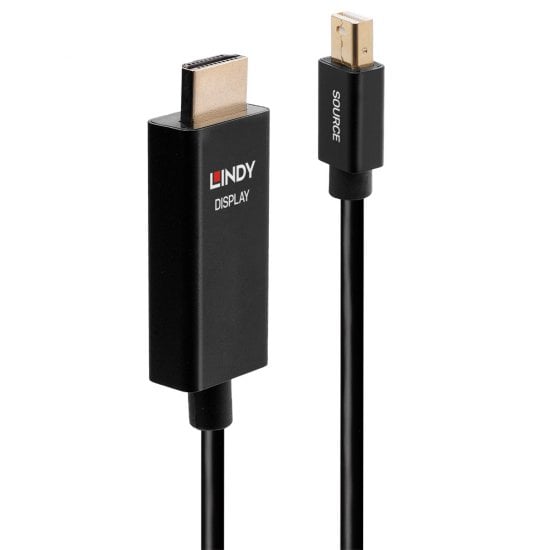

2m Mini DisplayPort to HDMI 4K60hz Adapter Cable

Please note: Some of Nvidia's latest drivers do not work correctly at 4k@60Hz 4:4:4 when converting from DP/mDP to HDMI and will only work at 4k@60Hz 4:2:2

Lindy’s Active Mini DisplayPort to HDMI 4K60Hz Adapter Cable combines superior performance with sleek design. This high-quality cable converts Mini DisplayPort signals upto 60Hz for output to an HDMI display or projector. With an integrated chipset, it ensures a reliable connection and enhances compatibility with both dual-mode and non-dual-mode graphic cards, making it perfect for use with devices like Surface, MacBook, and other notebooks without needing additional adapters.

Supporting resolutions up to 4096x2160 at 60Hz and High Dynamic Range (HDR), this cable delivers crystal-clear clarity, enhanced contrast, and lifelike colors. Ideal for creating eye-catching retail displays, innovative work environments, or immersive video playback in sports bars and home cinemas, it also supports uncompressed multi-channel audio for a three-dimensional surround sound experience.

Additionally, AMD Eyefinity technology support offers a cost-effective way to create ultra-high resolution displays using up to three or more monitors. This feature allows users to run multiple applications simultaneously on separate screens, boosting productivity in the workplace or providing a widescreen gaming experience.

Please Note: Audio output over HDMI requires that your graphics card supports audio output via DisplayPort. Some onboard graphics adapters, like the Mobile Intel 4 Series Express Chipset in notebooks, do not support audio output over DisplayPort, even with HDMI support installed. In such cases, a separate audio connection is necessary.

Connectors

• Connector A: Mini DisplayPort Male
• Connector B: HDMI Type A Male
• Housing material: ABS
• Connector plating:  24K Gold 1µm
• Pin construction: Brass
• Pin Plating:  24K Gold 3µm
• Dimensions:
  • Mini DisplayPort: 18.6x11.5x9.3mm (0.73x0.45x0.37in)
  • HDMI: 45.1x21.8x12.2mm (1.78x0.86x0.48in)

Cable Construction

• Length: 2m (6.56ft)
• Standard: HDMI 2.0, Mini DisplayPort 1.2
• Colour: Black
• Type: Round
• Jacket Diameter: 5mm (0.2in)
• Jacket Material: PVC
• Conductor Material: Tinned copper
• Conductor Gauge: 32AWG
• Shielding: Copper braid, 85% AL/MG coverage

Technical Information

• Supported Bandwidth: 18Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit, 4096x2160@60Hz 4:2:2 12bit
• Nominal Attenuation:
  • -12dB@825-2475MHz
  • -20dB@ 2475-4125MHz
  • -25dB@4125-5100MHz
• Minimum Bend Radius: 60mm (2.36in)
• Operating Temperature: -20°C - 70°C (-4°F - 158°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS & REACH, California Proposition 65

Purchasing Information

• No.: 40922
• EAN: 4002888409223

• Product Safety Information
