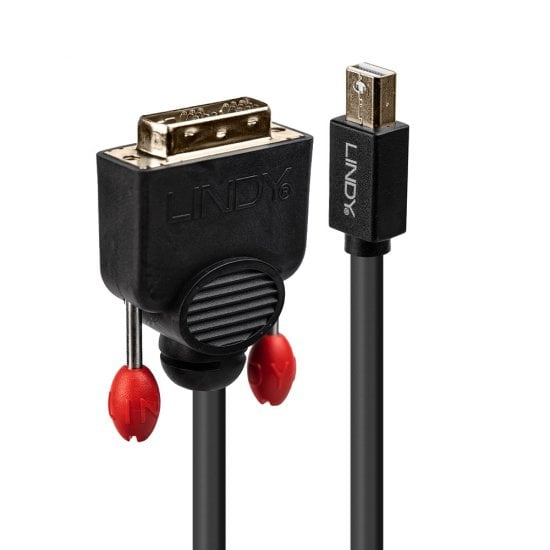

2m Mini Display Port to DVI Adapter Cable

The Mini DisplayPort to DVI Cable is the perfect solution for connecting a Mini DisplayPort-equipped source, such as a PC or laptop, to a DVI display. It supports high-definition video resolutions up to 1920x1200@60Hz, ensuring clear and sharp visuals for both professional and personal use. This cable can also be used to add another display to your setup, extending the available desktop workspace and increasing productivity. It is an excellent choice for both residential and workplace office setups, making multitasking more efficient and improving overall workflow.

Please note that to use this passive cable, the source device must support dual-mode Display Port (also known as DP++), which allows the transmission of DVI signals through the Mini Display Port connector. This ensures seamless compatibility and high-quality video output, making the Mini Display Port to DVI Cable a versatile and reliable addition to your connectivity options.

Connectors

• Connector A: Mini DisplayPort Male
• Connector B: DVI-D Male
• Housing Material:
• Mini DisplayPort: PVC
• DVI: PVC
• Connector Plating: Gold plated
• Pin Construction: Copper
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH:
Mini DisplayPort: 17.8x10.8x7.9mm (0.7x0.43x0.31in)
DVI: 46x39.8x15.9mm (1.81x1.57x0.63in)

Cable Construction

• Length: 2m (6.56ft)
• Standard: DVI-D (Single Link), DisplayPort 1.1
• Colour: Black
• Type: Round
• Jacket Diameter: 4.8mm (0.19in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 30AWG
• Shielding: Aluminum Braid 85%

Specifications

• Supported Bandwidth: 1.65Gbps
• Maximum Resolution: 1920x1200@60Hz
• Nominal Attenuation:
100MHz-450MHz 2.44-5.099dB
450MHz-8100MHz 5.094-32.906dB
• Minimum Bend Radius: 50mm (1.97in)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature:  -10°C - 80°C (14°F - 176°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH, UL (Raw Cable) & California Proposition 65

Purchasing Information

• No.: 41952
• EAN: 4002888419529

This product is also available in other lengths

• 41950 - 0.5m (1.64ft)
• 41951 - 1m (3.28ft)
• 41952 - 2m (6.56ft)
• 41953 - 3m (9.84ft)
• 41954 - 5m (16.44ft)
