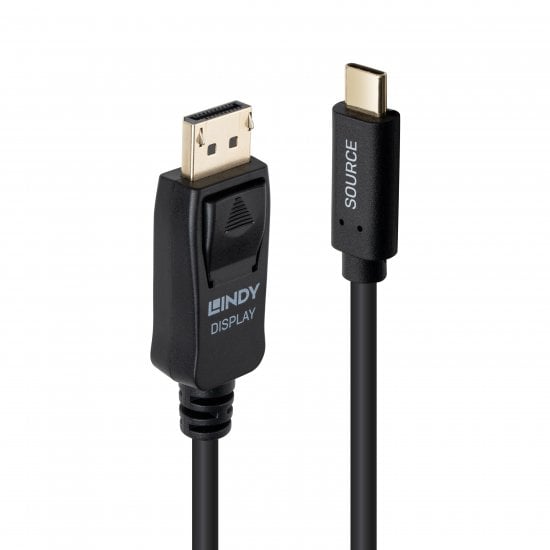

1m USB Type C to DisplayPort 4K60 Adapter Cable with HDR

The Lindy USB Type C to DisplayPort 4K60 Adapter cable allows users to easily add external video capabilities of a Type C Device such as a computer or laptop, by using DisplayPort Alternative mode. The 2 Metre length provides more flexibility when positioning the DisplayPort display.

With support for resolutions up to 3840x2160@60Hz and with additional support for High Dynamic Range, 4K content can be viewed with crystal clear clarity, enhanced contrast and more lifelike colour. These cables are great for creating eye-catching retail displays, innovative working environments or immersive video playback in sports bars and home cinema installations, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video.

This cable is powered by the USB Bus, so no external power supply is needed. Installation is as simple as plug and play, it can be easily installed into a new or existing AV System, Ideal for both professional and first time users.

Connectors

• Connector A: USB Type C Male
• Connector B: DisplayPort Male
• Housing Material: USB C: PVC, DP: ABS shell
• Connector Plating: Gold plating
• Pin Construction: Copper alloy
• Pin Plating: Gold plating
• Dimensions (approx.) WxDxH:
  • USB: 32x12x6.3mm (1.26x0.47x0.25in)
  • DP: 47.17x21.8x9.2mm (1.86x0.86x0.36in)

Cable construction

• Length: 1m (3.28ft)
• Standard: DP 1.2
• Colour: Black
• Type: Round
• Jacket Diameter: 5mm (0.20in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 32AWG
• Shielding: Copper Braid 85%

Specifications

• Chipset: LT87101CD
• Supported Bandwidth: 21.6Gbps
• Power Delivery: -
• Maximum Resolution: 3840x2160@60Hz 10bit 4:4:4
• Nominal Attenuation: 0.1MHz-6MHz<12DB
• Minimum Bend Radius: 47mm (1.85in)
• Operating Temperature: 0°C - 35°C (32°F - 95°F)
• Storage Temperature: 0°C - 45°C (32°F - 113°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS, REACH, California Proposition 65

Purchasing Information

• No.: 43500
• EAN: 4002888435000

This product is also available in other lengths

• 43500 - 1m (3.28ft)
• 43501 - 2m (6.56ft)
• 43502 - 3m (9.84ft)
