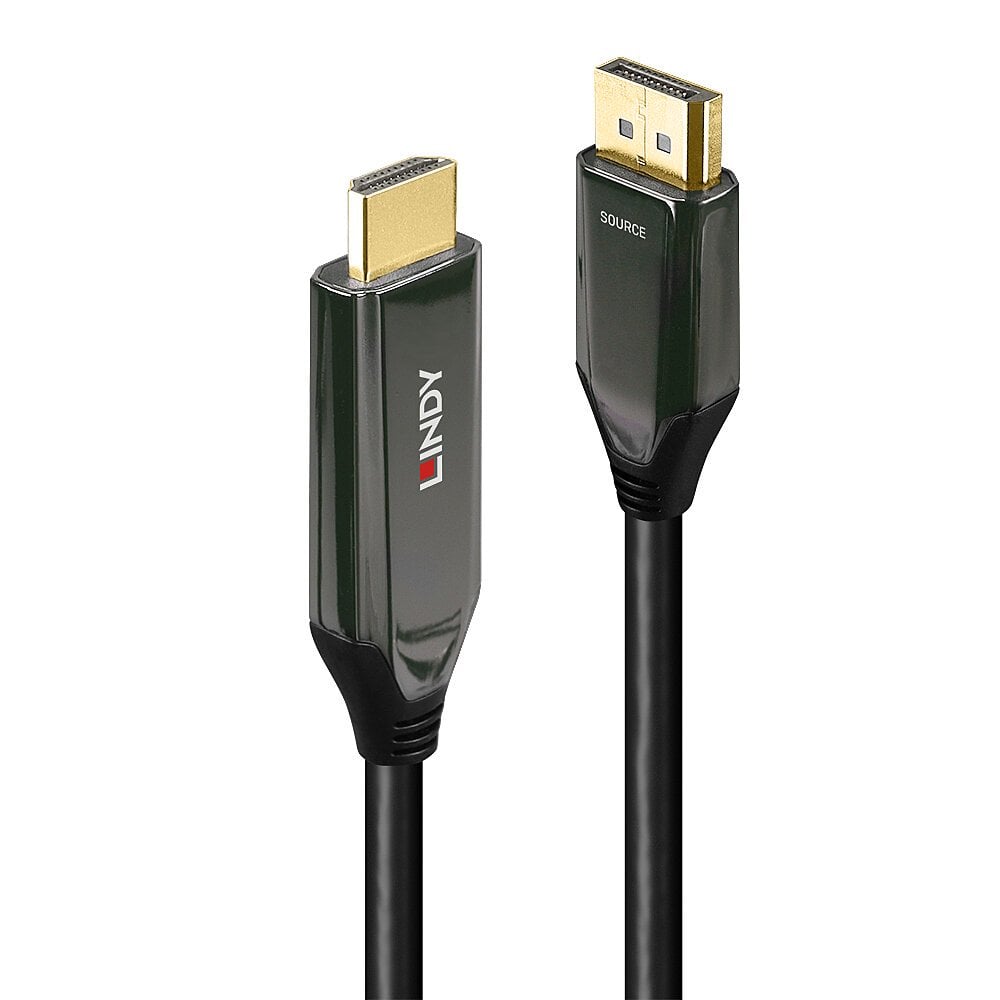

1m Active Display Port to HDMI 4K120Hz Adapter Cable

Lindy’s Active DisplayPort to HDMI Cable range combine superior performance with stylish design to provide a high quality conversion with support for resolutions up to 7680x4320@60Hz or 4096x2160@120Hz and with additional support for High Dynamic Range, This range of active cables come with a built in chip set to not only provide a reliable connection, but also enhance compatibility with both dual mode and non-dual mode graphic cards and source devices, perfect for use with DisplayPort graphics cards, laptops and PC’s, while avoiding the need for additional inline adapters.

This cable is also 8K Compatible DisplayPort to HDMI, If wishing 8K content can be viewed with crystal clear clarity, enhanced contrast and more lifelike colour. These cables are great for creating eye-catching retail displays, innovative working environments or immersive video playback in sports bars and home cinema installations, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video.

For gaming enthusiasts, our cable delivers high refresh rates of upto 120Hz at 4K resolutions, ensuring smoother game play with stable frame rates.

Please note: Audio output over HDMI is only supported when the graphics card of the notebook or desktop computer supports audio output over DisplayPort. In such instances a separate audio connection has to be set up.

Connectors

• Connector A: DisplayPort Male
• Connector B:  HDMI Type A Male
• Chipset: VM7100
• Housing Material: Zinc Alloy
• Connector Plating: Gold Plating
• Pin Construction: Copper Alloy
• Pin Plating: Gold Plating
• Dimensions (approx.) WxDxH:
  • DisplayPort: 50x20x8mm (1.97x0.79x0.31in)
  • HDMI: 60x20x8mm (2.36x0.79x0.31in)

Cable Construction

• Length: 1m (3.28ft)
• Standard: DisplayPort 1.4, HDMI 2.1
• Colour: Black
• Type: Round
• Jacket Diameter: 5.5mm (0.22in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 32AWG
• Shielding: Tinplate

Specifications

• Supported Bandwidth: 48Gbps
• Maximum Resolution: 7680x4320@60Hz 4:4:4 10bit
• Nominal Attenuation: 100MHz-10GHz ? 24dB
• Minimum Bend Radius: 33mm (1.3in)
• Operating Temperature: -20°C - 40°C (-4°F - 104°F)
• Storage Temperature: -40°C - 80°C (-40°F - 176°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH, UL (Raw Cable) & California Proposition 65

Purchasing Information

• No.: 40930
• EAN: 4002888409308

This product is also available in other lengths

• 40930 - 1m (3.28ft)
• 40931 - 2m (6.56ft)
• 40932 - 3m (9.84ft)
