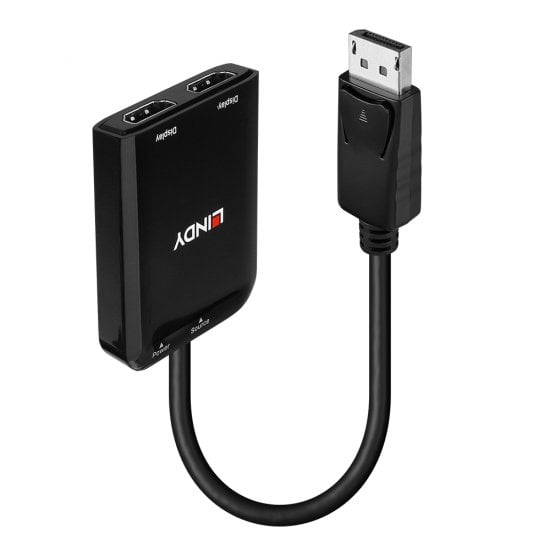

DisplayPort to 2 Port HDMI MST Hub

The Lindy DP to 2 Port HDMI MST Hub is an ideal solution for expanding or duplicating DisplayPort signals across 2 HDMI monitors or TVs.  MST hubs allow for the connection of a single mDP source device including computers, laptops or notebooks to 2 separate HDMI displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across both displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on both displays for use in hospitality, retail or educational scenarios.

With support up to 2 x 3840x2160@30Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.

This active MST Hub supports DP++ and does not require the source or graphics card to support DP++ to provide dual-mode signals

Please note: This hub is not compatible with Apple products

Specifications

• AV Interface: DisplayPort, HDMI
• Interface Standard: DP 1.2, HDMI 2.0
• Supports Bandwidth: 21.6 Gbit/s
• Maximum Resolution: 2 x 3840x2160@30Hz 4:4:4 8 bit
• HDCP Support: HDCP 1.4
• Supported Audio: Up to 7.1CH
• Separate Audio Ports: -
• CEC Support: -
• Serial Interface: -
• Special Features: -

Connectors

• Input: DisplayPort (Male)
• Output: 2 x HDMI Type A (Female)
• Control: -
• Power : Micro-USB (Female)

Physical Properties

• Dimensions (approx.) WxDxH: 254x49x10mm (10x1.93x0.39in)
• Housing Material: ABS
• Net Weight: 0.049kg (0.11lb)
• Operating Temperature: -20°C - 40°C (-4°F - 104°F)
• Storage Temperature: -40°C - 80°C (-40°F - 176°F)
• Humidity: 5-90% RH (Non condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194x10mm (6.85x7.64x0.39in)
• Gross Weight: 0.059kg (0.13lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS and REACH

Package Content

• DisplayPort MST Hub
• USB Micro-B to USB Type A Cable

Purchasing Information

• No.: 38433
• EAN: 4002888384339

• UKCA Doc for 38433
• Product Safety Information
