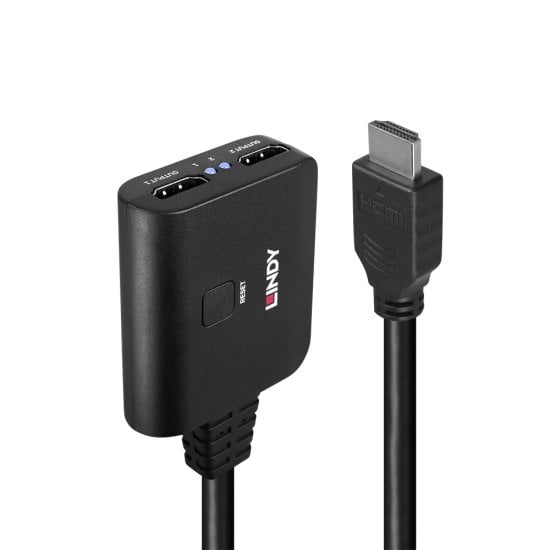

2 Port HDMI 4K60 Splitter Cable

The Lindy 2 Port HDMI® 4K60 Splitter Cable is a compact, high quality solution for distributing HDMI® 2.0 18G signals across dual displays from one source device. With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching digital signage in retail scenarios, showing high quality video in different rooms in medical facilities or ensuring audiences do not miss any of the action in dual display sports bars.

Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour.

HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players, while a smart EDID management switch on the unit provides maximum compatibility with the display.

The splitters durable, compact design also ensures the unit can be installed discreetly, ensuring there is no distraction from the content on screen.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

• AV Interface: HDMI®
• Interface Standard: HDMI® 2.0
• Supported Bandwidth: 18Gbps
• Maximum Input Resolution: 3840x2160@60Hz
• Maximum  Output Resolution: 3840x2160@60Hz 4:2:2 12bit with HDR
• Chipset: GSV2006
• HDCP Support: 2.2
• Supported Audio: HDMI® Audio Pass-through
• Separate Audio Ports: -
• Special Features: Reset Button, Downscaler

Connectors

• Input: HDMI® (Male)
• Output: 2 x HDMI® (Female)

Physical Properties

• Dimensions (approx.) WxDxH: 65x54.5x20.5mm (2.56x2.15x0.81in)
• Cable Length: 500mm (19.69in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: mm (in)
• Minimum Bend Radius: mm (in)
• Net Weight: 0.106kg (0.23lb)
• Operating Temperature: 0°C - 70°C (-32°F - 158°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Humidity: 5 - 90% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 190x145x30mm (7.48x5.71x1.18in)
• Gross Weight: 0.147kg (0.32lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS & REACH

Package Contents

• 2 Port HDMI® Splitter Cable
• 0.75m USB Micro-B to USB Type A Cable

Purchasing Information

• No.: 38356
• EAN: 4002888383561

• UKCA Doc for 38356
• Product Safety Information
