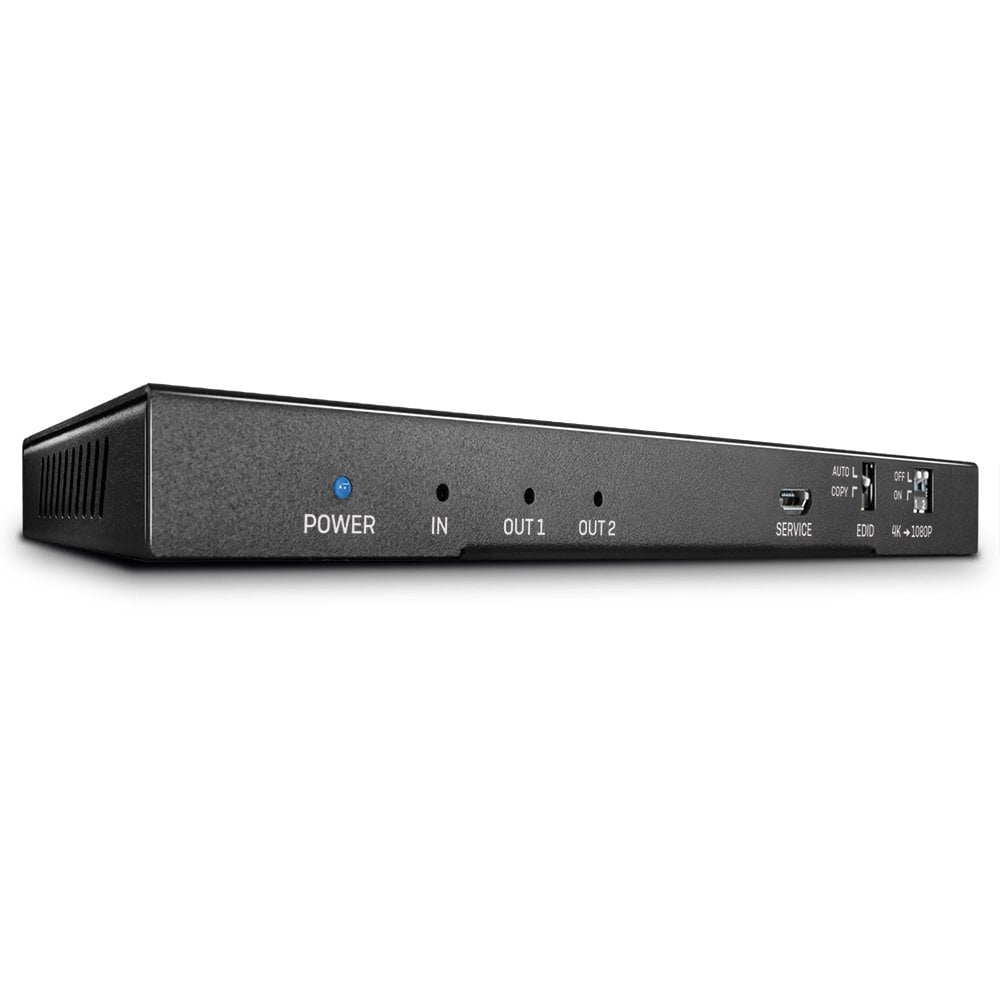

2 Port HDMI 18G Splitter with Audio & Downscaling

The Lindy 2 Port HDMI® 18G Splitter with Audio is a multi-function solution for distributing high quality HDMI® signals across 2 displays simultaneously from one source device, while extracting digital or analogue audio separately.

With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching dual display digital signage in retail scenarios, displaying live video across two screens at event venues or distributing engaging multiscreen educational presentations at tradeshows. The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI® to connect non-HDMI® amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.

The splitters also features an integrated switch to downscale the input signal to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

• AV Interface: HDMI®
• Interface Standard: HDMI® 2.0
• Supports Bandwidth: 18Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• Supported Audio
Audio Pass-through
LPCM 2CH
Up to 7.1CH (Optical)
• Separate Audio Ports
3.5mm (Female)
Toslink (Optical)
• CEC Support: -
• Serial Interface: -
• Special Features: Downscaler Function, EDID Emulation

Connectors

• Input: HDMI® Type A (Female)
• Output: 2 x HDMI® Type A (Female), Toslink (Optical), 3.5mm (Female)
• Control: -
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 120x14.4x63mm (4.72x0.57x2.48in)
• Housing Material: Metal
• Net Weight: 0.29kg (0.64lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20-90% RH (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 206x64x117mm (8.11x2.52x4.61in)
• Gross Weight: 0.396kg (0.87lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• 2 Port HDMI® Splitter with Audio
• Multi-Country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No. 38230
• EAN: 4002888382304
