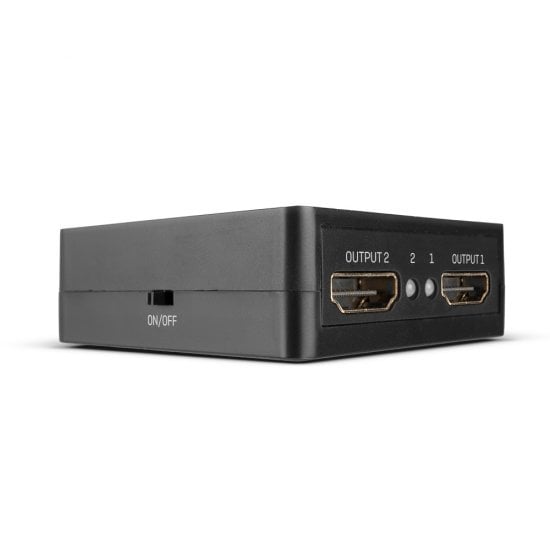

2 Port HDMI 18G Splitter, Compact

The Lindy 2 Port HDMI® 18G Splitter is a compact, low cost solution for easily splitting one 4K HDMI® source device across two 4K HDMI® displays.

With support for resolutions up to 4K 3840x2160 @60Hz, content can be viewed in superior clarity across dual displays.

Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour.

The splitter's compact design and ability to be powered by USB allows for a simple and discreet installation into a variety of environments, from home entertainment setups to office use.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

• AV Interface: HDMI®
• Interface Standard: HDMI® 2.0
• Supports Bandwidth: 18Gbps
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• Supported Audio: Audio Pass-through
• Separate Audio Ports: -
• CEC Support: -
• Serial Interface: -
• Special Features: -

Connectors

• Input: HDMI® Type A (Female)
• Output: 2 x HDMI® Type A (Female)
• Control: -
• Power : Mini-B (Female)

Physical Properties

• Dimensions (approx.) WxDxH: 60.5x54x20.5mm (2.38x2.13x0.81in)
• Housing Material: Metal
• Net Weight: 0.042kg (0.09lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Humidity: 5% to 90% RH (no condensation)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 133x105x24mm (5.24x4.13x0.94in)
• Gross Weight: 0.105kg (0.23lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

• 2 Port HDMI® 18G Splitter
• USB to Mini-B Cable, 0.76m
• Lindy Manual

Purchasing Information

• No.: 38358
• EAN: 4002888383585

• Manual for 38358 2 Port HDMI 18G Splitter, Compact
• Product Safety Information
