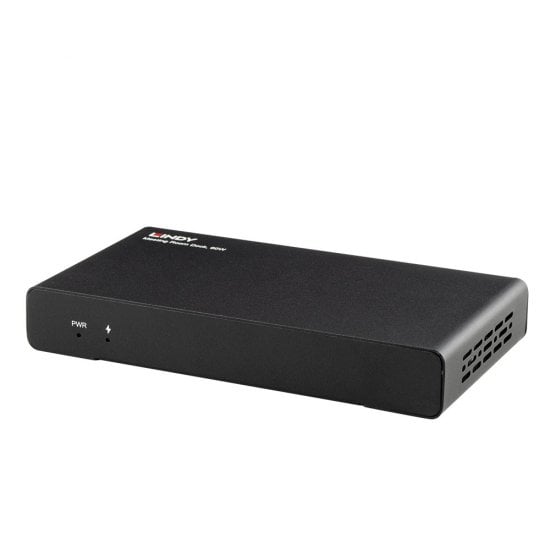

Meeting Room Dock, 60W

Optimise your conference rooms with the Lindy Meeting Room Dock, the perfect all-in-one solution. Connect all your devices easily for a smooth and efficient conferencing experience. Thanks to the Meeting Room Dock, you can connect multiple USB devices and share content effortlessly on a single screen. Whether for presentations, meetings or team collaborations, the Dock ensures that everything runs smoothly.

The Meeting Room Dock can be mounted either under the table or directly on the table, providing optimal support for all connections in your conference environment – tailored to your needs and room design.

It also delivers power to your connected laptop, minimizing cable clutter and eliminating the need for extra power adapters.

The HDMI® output delivers high-resolution 4K video and audio directly from the device, so your conferences take place in brilliant picture and sound quality. The LAN connection also provides a stable and fast wired network connection to your laptop, so you can rely on an uninterrupted Internet connection. With the Meeting Room Dock, you have the ideal solution for all your conference requirements – a future-proof, easy-to-install and high-performance device that makes your meetings more efficient and professional.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

• Interface: USB Type C to 1x HDMI® / 3x USB Type A / 1x RJ45
• Supported Bandwidth: HDMI® 2.0 with 18Gbps, USB 3.2 Gen 1 (5Gbps), Gigabit LAN (10/100/100Mbps)
• Maximum Input Resolution: 3840x2160 60Hz
• Maximum Output Resolution: 3840x2160 60Hz
• Chipset: PS186, W25X20CLSNIG, MX25V1606FM1I03, FL7102-2Q0, PS8822QFN52GTR-A0, SC8102QDJR, AX88179A
• Compatibility: USB Type C / Thunderbolt equipped computers with DisplayPort Alternate Mode support. Windows, macOS, Linux, Android, Chrome OS.
• Power Delivery: PD 3.0 up to 60W (20V 3A)
• HDCP Support: HDCP 2.3
• Supported (HDMI) Audio: LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™
• Separate Audio Ports: -
• Special Features: -

Connectors

• Inputs: 1 x USB Type C (Female)
• Outputs: 1x HDMI® (Female), 1x RJ45 (Female), 3x USB Type A (Female)
• Power: 1x 4pin power socket

Physical Properties

• Dimensions WxDxH: 150x23x80mm (5.91x0.91x3.15in)
• Housing Material: Metal
• Net Weight: 0.27kg (0.6lb)
• Operating Temperature: -10°C - 55°C (14°F - 131°F)
• Storage Temperature: -25 °C - 70°C (-13°F - 158°F)
• Humidity: 10 - 90% RH (non-condensing)
• Power Requirements: 16W
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 230x208x62mm (9.06x8.19x2.44in)
• Gross Weight: 1kg (2.2lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, REACH & RoHS, CP65

Package Contents

• Meeting Room Dock
• DC 24V 5A Power Supply with 4pin power connector (male)
• 4x IEC C13 Mains Cable (Schuko/UK/US/AUS)
• 2x Mounting Ears with 4 screws
• 4x Rubber Pads
• Lindy Manual

Purchasing Information

• No.: 43424
• EAN: 4002888434249
