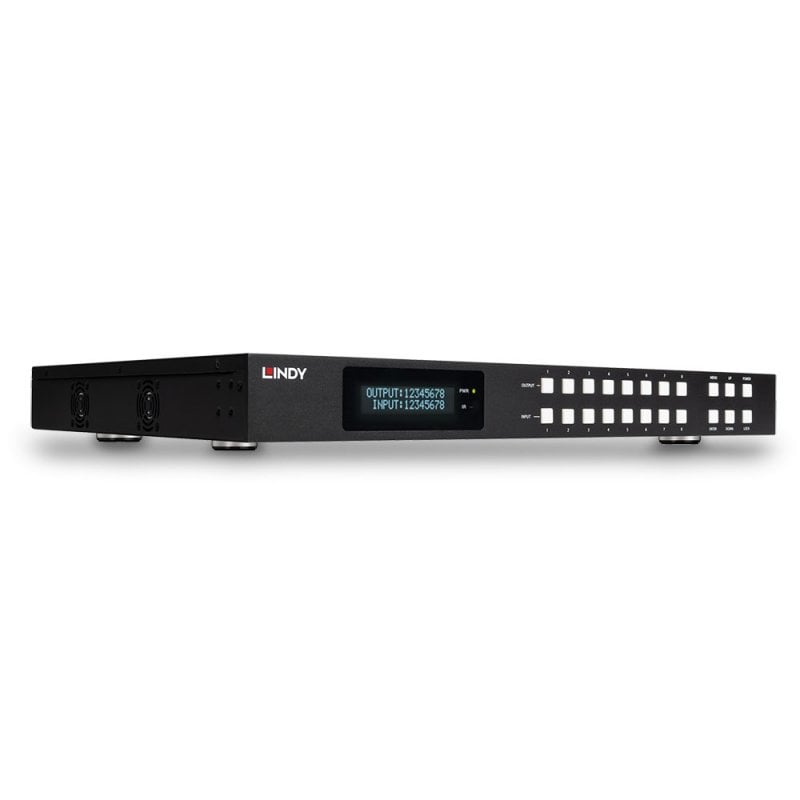

8x8 HDMI 4K60 Seamless Multi-View Matrix with Video Wall Scaling
- £3,997.62 inc. VAT
- (FREE UK Delivery)
Product Summary
- Switches between 8 HDMI® source devices and 8 HDMI® displays as a professional matrix
- Creates video walls with various layouts with up to 8 displays
- Seamlessly switch between input devices in under 0.1ms
- Choose from 16 different multi-view layouts, including a user defined layout for ultimate flexibility
- 2 year warranty
Complete HDMI® Control, Seamlessly Delivered.
Switch, scale and display with complete flexibility.

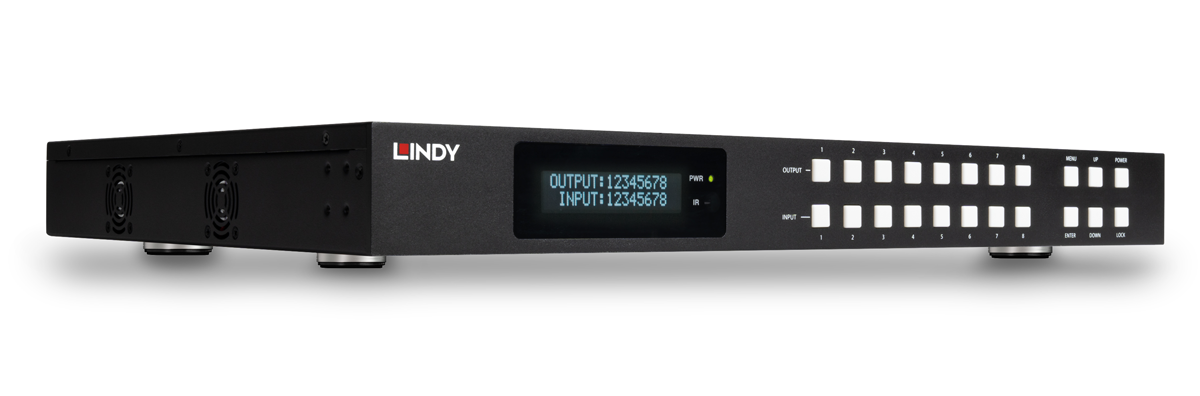

The Lindy 8x8 HDMI® 4K60 Seamless Multi-View Matrix is a powerful AV distribution solution for routing multiple HDMI® sources to multiple displays, while enabling advanced video wall and multi-view configurations for professional installations. Supporting seamless switching in under 0.1ms, 16 multi-view layouts, flexible video wall scaling, and integrated HDMI® pass-through, optical and analogue audio outputs, it ensures smooth, uninterrupted content delivery across demanding AV environments.
AT A GLANCE
8x8 HDMI® Matrix Switching
Distribute eight HDMI® sources to eight displays with full routing flexibility.
Seamless Switching <0.1ms
Switch between sources instantly with no visible interruption.
16 Multi-View Layouts
Display multiple sources on a single screen with predefined and custom layouts.
Video Wall Scaling
Create flexible video walls across up to eight displays.
4K60 HDMI® 2.0b Support
Supports Ultra HD resolutions up to 3840x2160@60Hz with 18Gbps bandwidth.
Flexible Audio Integration
HDMI® audio pass-through up to 7.1CH, plus TOSLink (5.1CH) and analogue stereo outputs.
SYSTEM OVERVIEW
Connect up to 8 HDMI® sources, 8 HDMI® displays and external audio systems, with IP, RS-232 and IR control for flexible professional AV integration.

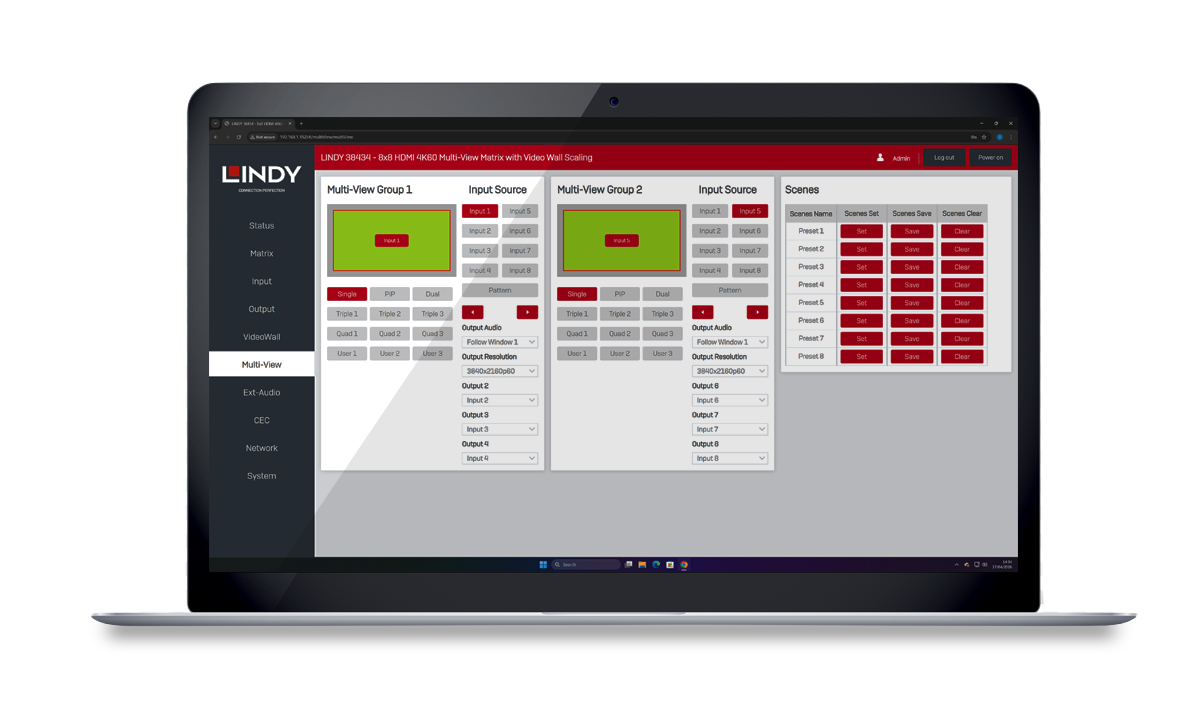

INTUITIVE WEB GUI CONTROL
Control and configure the matrix via a browser-based Web GUI for fast, flexible system management over the network.
CONNECTION OVERVIEW
MULTI-VIEW & VIDEO WALL LAYOUTS
16 predefined layouts plus a user-defined configuration for flexible multi-view and video wall display.
TYPICAL SECTORS
Broadcasting & Media Production
Education & Training
Retail & Commerce
Security & Control Rooms
Digital Signage
Hospitality
APPLICATIONS
Control Room Monitoring
Route and view multiple HDMI® sources across operator displays, overview screens and multi-view layouts.
Video Wall Installations
Create large display surfaces for signage, monitoring, information sharing and public display applications.
Source Preview & Multi-View
Display multiple sources on one screen for preview, comparison and operational monitoring.
Retail & Signage Systems
Distribute promotional content, live feeds and media player outputs to multiple display zones.
Presentation Spaces
Switch between laptops, room PCs, media players and other HDMI® sources in meeting and training environments.
Integrated AV Control
Manage the matrix using Web GUI, RS-232, IR or front panel control for flexible system integration.
ADVANCED HDMI® CONTROL FOR PROFESSIONAL AV ENVIRONMENTS.
With seamless switching, multi-view layouts, video wall scaling and flexible audio integration, the Lindy 8x8 HDMI® 4K60 Seamless Multi-View Matrix provides a complete solution for managing complex HDMI® installations in professional AV environments.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
