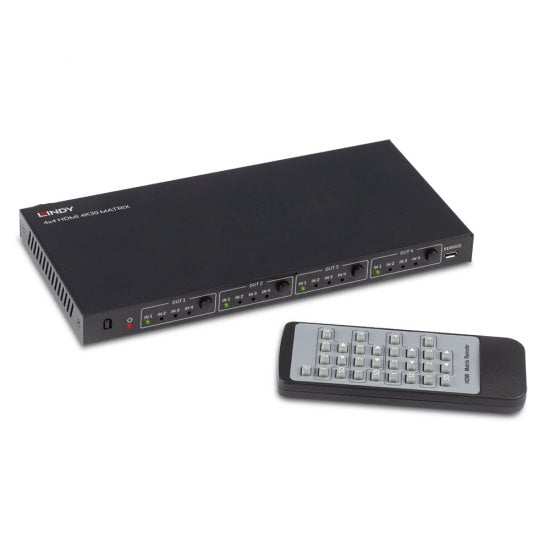

4x4 HDMI 4K60 Matrix

Matrices are multi-port solutions for distributing content from multiple sources to several displays in a variety of configurations.

The Lindy 4x4 HDMI® 4K 60 Matrix is an effective solution for distributing 4K content from up to 4 HDMI® source devices, including PCs and media players, to 4 displays.

Supporting 4K@60Hz resolutions, content can be viewed in excellent quality - great for use with digital signage in retail, information display setups in educational buildings or engaging conference installations.

The matrix can be easily controlled with a variety of simple, effective options including push buttons on the main unit, IR or via RS-232 for integration into professional control systems.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

• AV Interface: HDMI®
• Interface Standard: HDMI® 2.0
• Supports Bandwidth: 18 Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit with HDR
• HDCP Support: 2.2
• Supported Audio: Audio Pass-through, Dolby Atmos
• IR Support : 30-60kHz
• CEC Support: -
• Serial Interface: -
• LED / LCD Display: -
• Control: IR, Push Button
• Special Features: EDID Management

Connectors

• Input: 4 x HDMI® (Female)
• Output: 4 x HDMI® (Female)
• Control: USB Micro-B (Female)
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions WxHxD: 220x105x19mm (8.66x4.13x0.75in)
• Housing Material: Metal
• Nett Weight: 0.535kg (1.81lb)
• Operating Temperature : 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% (non-condensing)
• Power Requirements: 12VDC 2.5A
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 301x61x235mm (11.85x2.4x9.25in)
• Gross Weight: 1.35kg (2.98lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS, REACH and California Proposition 65

Package Contents

• HDMI® Matrix
• IR Remote Control
• Multi-Country Power Supply  (EU, UK, US & AUS)
• Lindy Manual

Purchasing Information

• No. 38152
• EAN: 4002888381529

• QIG for 38152v2
• Manual for 38152v2
• Controller Software v6.26 for 38152
• Command Codes for 38152v1
• Manual for 38152 V2 4x4 HDMI 4K60 Matrix
• Product Safety Information
