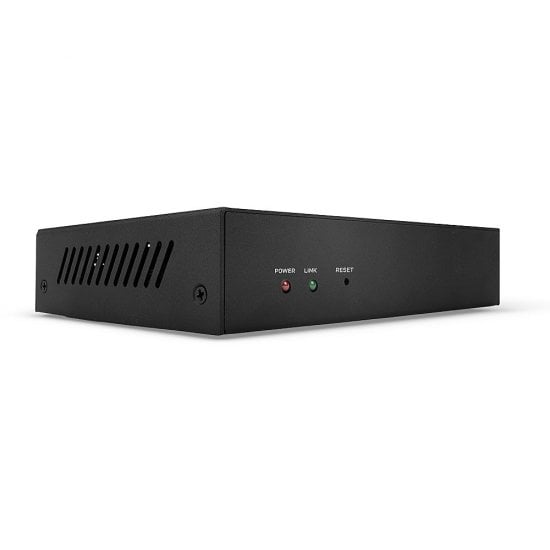

HDMI over Powerline Extender, Transmitter

HDMI® over Powerline extenders provide a useful solution for extending HDMI® content to one or more displays within one electrical circuit.

The Lindy HDMI® over Powerline Transmitter is one part of a high-quality solution for extending HDMI® content from a source device to a display using a single electrical power circuit. Combined with the compatible receiver unit, this extender provides simple, hassle-free content distribution within small office, store front or residential setups.

Supporting resolutions up to 1920x1080@60Hz ensuring excellent Full HD quality for the user. This device is ideal for sharing video and audio content into bedrooms, home offices or small-scale digital signage using pre-existing electrical wiring.

An HDMI® loop-out allows for connection of a local HDMI® display, while connection to 3 compatible receivers allows for larger scale distribution to multiple displays. A 3.5mm IR connection also allows for simple control from the display side of the setup.

Specifications

• AV Interface: HDMI®
• Interface Standard: 1.3
• Supported Bandwidth: 6.75Gbps
• Maximum Distance: -
• Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit
• HDCP Support: 1.4
• EDID Pass Through: Pass-through
• Supported Audio: LPCM 2CH
• Separate Audio Ports: -
• IR Support: 20-60kHz
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: -
• Transmission Medium: IEC
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: ITE
• Special Features: Output to 3 Receivers, HDMI® Local Loop Out

Connectors

• Transmitter Input: HDMI® Type A (Female)
• Transmitter Output: HDMI® Type A (Female), 3.5mm IR (Female), IEC C6 (Male)
• Receiver Input: -
• Receiver Output: -
• Bi-directional Ports: -
• Power : IEC C6 (Male)

Physical Properties

• Dimensions (approx.) WxDxH: 135x29x96.5mm (5.31x1.14x3.8in)
• Housing Material: Metal
• Net Weight: 1.049kg (2.31lb)
• Operating Temperature : 32°C - 104°C (90°F - 219°F)
• Storage Temperature: -4°C - 104°C (25°F - 219°F)
• Humidity: 20 -90% RH (non-condensing)
• Power Requirements: 100-240 VAC
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 262x80x150mm (10.31x3.15x5.91in)
• Gross Weight: 1.268kg (2.8lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

• HDMI® over Powerline Extender, Transmitter
• IR Emitter Cable, 1.5m
• Multi-country C5 Power Cables (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 38225
• EAN: 4002888382250
