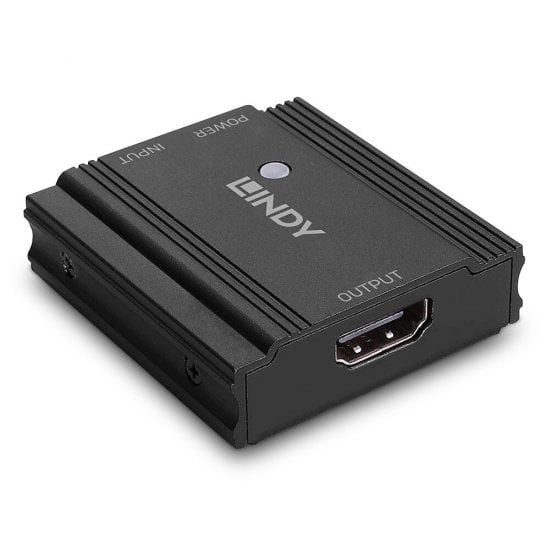

HDMI 8K60 Repeater

The Lindy HDMI® 8K60 Repeater is a high end solution for extending top-quality HDMI® signals up to distances of 45m for full HD, 25m for 4K60 and 10m for 8K60 signals, while ensuring a superior reliable transmission with no degradation.

This repeater supports a maximum resolution of 8K 60Hz for superior video quality, and with additional support for HDMI 2.1 features such as dynamic HDR, DSC, HFR, VRR, ALLM; automatic EQ (sharpness) adjustment will ensure an optimal signal clarity. HDCP pass-though also assures the user that all contents can be played on their display.

Featuring a sleek minimalistic design, the repeater is ideal for use with professional AV/IT setups and home cinema installations that require long length transmissions in limited space environments, or for creating a more discreet installation.

The unit can be powered from the HDMI® source device and also via the USB Mini-B port connecting a 5V charger if needed.

Specifications

• AV Interface: HDMI®
• Interface Standard: HDMI® 2.1
• Supported Bandwidth: 48 Gbps
• Maximum Distance:
  45m (147.64ft), 20m In / 25m Out - 1920x1080@60Hz 4:4:4 8Bit
  25m (82.02ft), 10m In / 15m Out - 4K60Hz 4:4:4 8bit
  10m (32.81ft), 4m In / 6m Out - 8K60Hz 4:4:4 8bit
• Maximum Resolution: 7680x4320@60Hz 4:4:48bit (DSC enabled)
• HDCP Support: 2.3
• Transmission Medium: 2 x HDMI Cable
• Special Features: -

Connectors

• Input: HDMI® (Female)
• Output: HDMI® (Female)
• Power: USB Mini B (Female) (optional)

Physical Properties

• Dimensions WxHxD: 47x60x15mm (1.85x2.36x5.47in)
• Housing Material: Metal
• Net Weight: 0.11kg (0.24lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0-80% RH (non-condensing)
• Power Requirements: 1.5W
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 98x154x46mm (3.86x6.06x1.81in)
• Gross Weight: 0.18kg (0.4lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• HDMI® Repeater
• Lindy Manual
• USB Type A to Mini B cable, 1.5m (4.92ft)

Purchasing Information

• No.: 38384
• EAN: 4002888383844

• Manual for 38384 - 45m HDMI 8K60 Repeater
• UKCA Doc for 38384
• Product Safety Information
