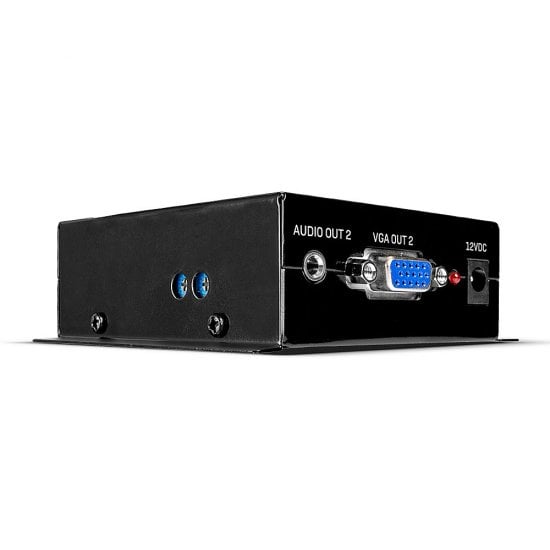

300m Cat.6 2 Port VGA Receiver

VGA extenders distribute analogue video content across longer distances into multiple locations, using standard network cabling.

The Lindy 300m Cat.6 2 Port VGA Receiver is an ideal solution for distributing VGA signals to a single, or dual separate VGA display. Connected to the compatible transmitter (35403) via standard network cable, this receiver provides transmission of VGA signals up to 1920x1080, great for creating 4 separate distribution zones, such as classrooms or in security facilities. Dual VGA output ports allow for the connection of 2 separate VGA displays or projectors at the receiver side, useful when presenting information across multiple screens whether in monitoring and control, or smaller retail setups. 3.5mm dual mono audio connections also ensure speakers can be connected for supporting video content with high quality clear audio.

EQ and gain controls, for sharpness and brightness, can be easily adjusted to ensure the optimum picture quality is always shown .

The receiver has a robust metal housing with mounting brackets, providing additional protection against accidental damage, ideal for use in industrial installations.

Specifications

• AV Interface: VGA
• Interface Standard: -
• Supported Bandwidth: 350MHz
• Maximum Distance: 300m (984.24ft)
• Maximum Resolution:
  300m (984.24ft) - 640x480
  200m (656.16ft) - 800x600
  180m (590.54ft) - 1024x768
  120m (393.7ft) - 1280x1024
  100m (328.08ft) - 1920x1080

• HDCP Support: -
• EDID Pass Through: -
• Supported Audio: Dual Mono
• Separate Audio Ports: 3.5mm
• IR Support: -
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: -
• Transmission Medium: 1 x Cat.5e/6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: ISL59910
• Special Features: Dual Mono Audio Extraction
• Mountable Housing

Connectors

• Transmitter Input: -
• Transmitter Output: -
• Receiver Input: RJ-45 (Female)
• Receiver Output: 2 x VGA (Female), 2 x 3.5mm (Female)
• Bi-directional Ports: -
• Power : 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 87.6x94.6x31mm (3.45x3.72x1.22in)
• Housing Material: Metal
• Net Weight: 0.396kg (0.87lb)
• Operating Temperature : 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 20 - 80% RH (non-condensing)
• Power Requirements: 12VDC 1.2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 177x75x110mm (6.97x2.95x4.33in)
• Gross Weight: 0.481kg (1.06lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

• 300m 2 Port Cat.6 VGA Receiver
• 4 x Mounting Screws
• Multi-country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 35404
• EAN: 4002888354042

• Product Safety Information
