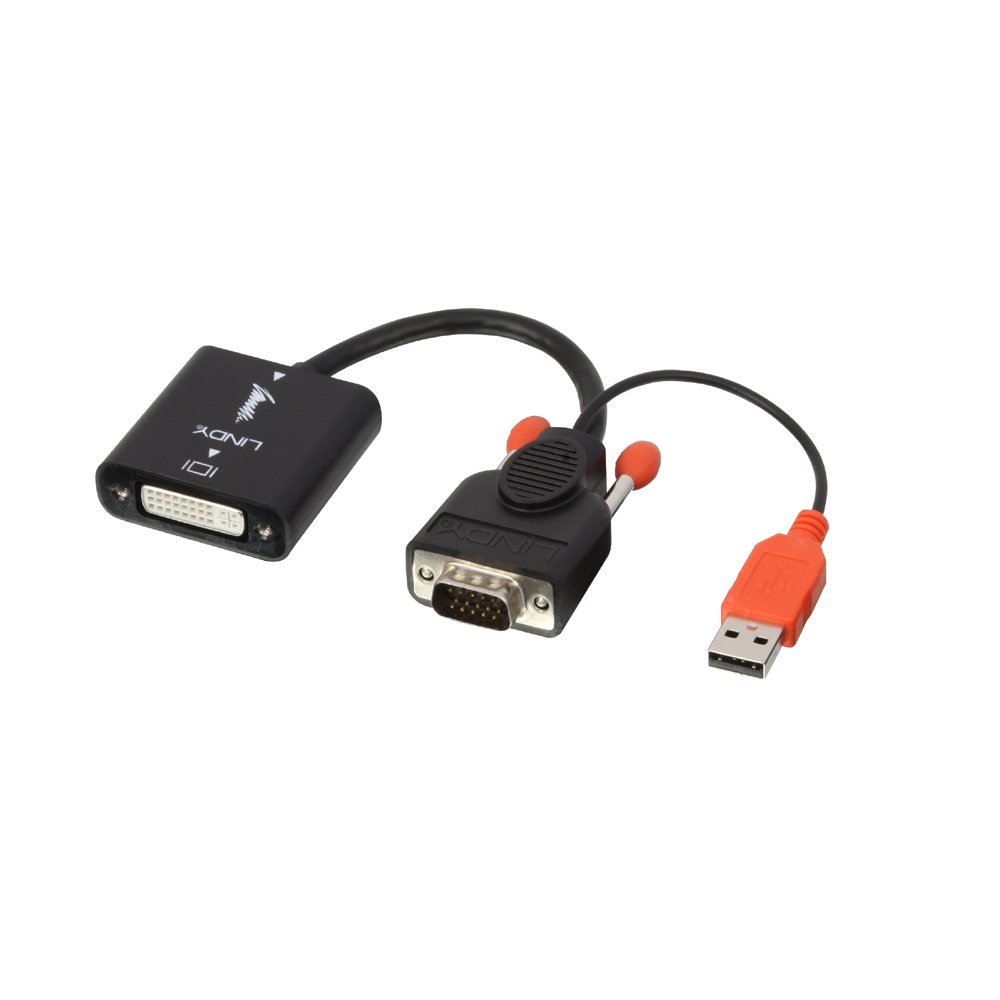

VGA to DVI-D Converter Cable

The Lindy VGA to DVI-D Converter is a compact, premium solution for connecting a DVI monitor or display to legacy VGA source devices. Supporting resolutions up to 1920x1200, this converter is perfect for use in offices at home, in the workplace or in education, or for connecting analogue PC systems to eye-catching digital signage displays.

A separate USB Type A connection provides power for even the most demanding scenarios.

Specifications

• AV Interface: VGA to DVI-D
• Interface Standard: VGA, DVI-D
• Supported Bandwidth: 4.95Gbps
• Maximum Input Resolution: 1920x1200@60Hz
• Maximum  Output Resolution: 1920x1200@60Hz
• Chipset: MS9282
• HDCP Support: -
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: USB Type A Male for power

Connectors

• Input: VGA Male
• Output: DVI-D Female (Single Link)

Physical Properties

• Dimensions (approx.) WxDxH:
  • DVI: 44.9x45.3x9.8mm (1.77x1.78x0.39in)
  • VGA: 46.2x33.8x19.2mm (1.82x1.33x0.76in)
  • USB: 35.1x14.5x8.2mm (1.38x0.57x0.32in)
• Cable Length:
  • VGA: 100mm (3.94in)
  • USB: 200mm (7.87in)
• Housing Material: PVC
• Jacket Material: PVC
• Jacket Diameter: 5.5mm (0.22in)
• Minimum Bend Radius: 55mm (2.17in)
• Net Weight: 0.08kg (0.18lb)
• Operating Temperature: 0°C - 80°C (0°F - 176°F)
• Storage Temperature: 0°C - 85°C (0°F - 185°F)
• Humidity:  10 - 85% RH (non-condensing)
• Colour:
  • DVI: Black
  • VGA: Black
  • USB: Red

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194mm (6.85x7.64in)
• Gross Weight: 0.09kg (0.2lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH

Package Contents

• VGA to DVI Converter

Purchasing Information

• No.: 38184
• EAN: 4002888381840

• Product Safety Information
