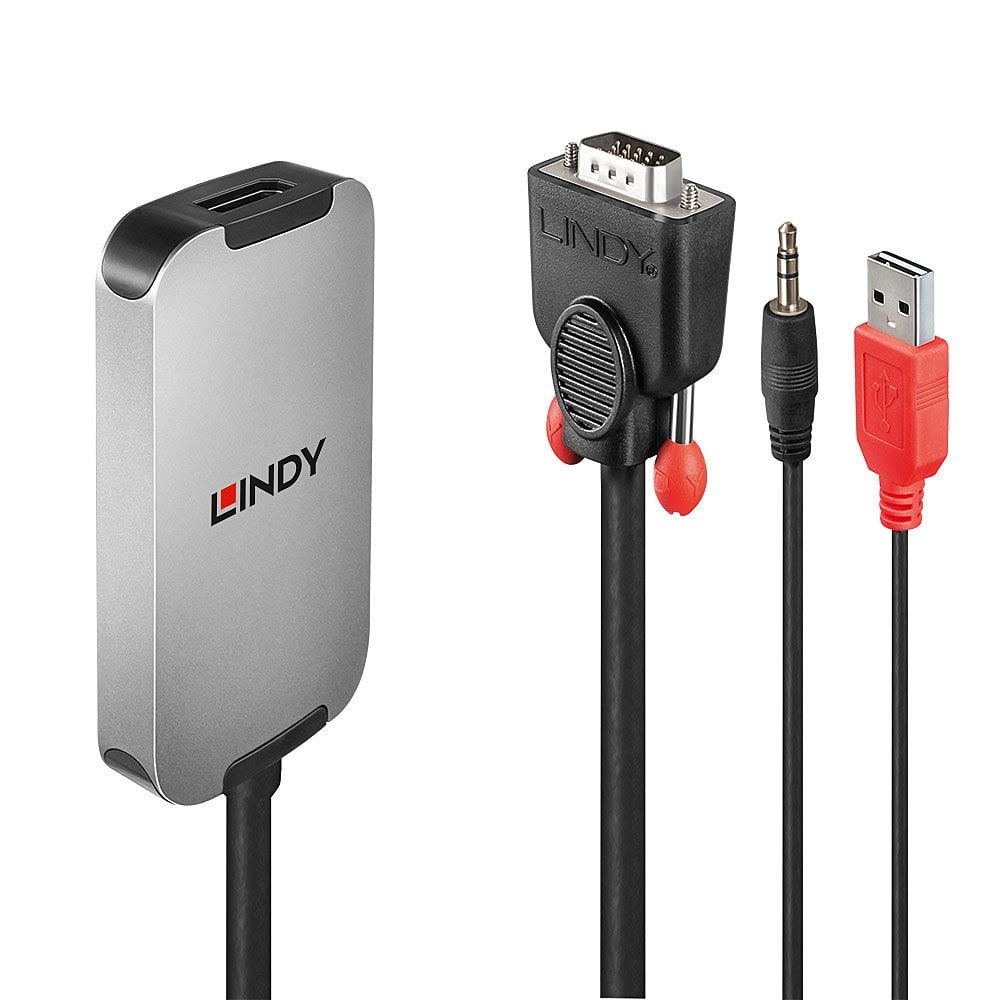

VGA to DisplayPort Converter

The Lindy VGA to DisplayPort Converter is a compact, premium solution for connecting a DisplayPort monitor or display to legacy VGA source devices. Supporting resolutions up to Full HD, this sleek converter is perfect for use in offices at home, in the workplace or in education, or for connecting analogue PC systems to eye-catching digital signage displays.

An additional 3.5mm VGA audio connection also allows for audio to be embedded into DisplayPort to provide 2CH stereo to compliment a professional video experience, while a separate USB Type A connection ensures there is always enough power for even the most demanding scenarios.

Specifications

• AV Interface: VGA to DisplayPort
• Interface Standard: VGA, DisplayPort 1.2
• Supported Bandwidth: 4.95Gbps
• Maximum Input Resolution: 1920x1080
• Maximum  Output Resolution: 1920x1080@60Hz RGB 8bit
• Chipset:
SiL8784CNUC
STDP2600
• HDCP Support: -
• Supported Audio: Stereo via 3.5mm
• Separate Audio Ports: 3.5mm Stereo Audio Plug
• Special Features: USB Type A Male for power

Connectors

• Input: VGA Male, 3.5mm Male Stereo Audio, USB Type A Male (Power)
• Output: DisplayPort Female

Physical properties

• Dimensions (approx.) WxDxH: 50x95x15mm (1.97x3.74x0.59in)
• Cable Length: 180mm (7.09in)
• Housing Material: Aluminium
• Jacket Material: PVC
• Jacket Diameter: 6mm (0.24in)
• Minimum Bend Radius: -
• Net Weight: 0.114kg (0.25lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Humidity: 20 - 85% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194x20mm (6.85x7.64x0.79in)
• Gross Weight: 0.122kg (0.27lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS & REACH

Package Contents

• VGA to DisplayPort 1.2 Converter

Purchasing Information

• No.: 38296
• EAN: 4002888382960

• Manual for 38296 VGA to DisplayPort 1.2 Converter
• Product Safety Information
