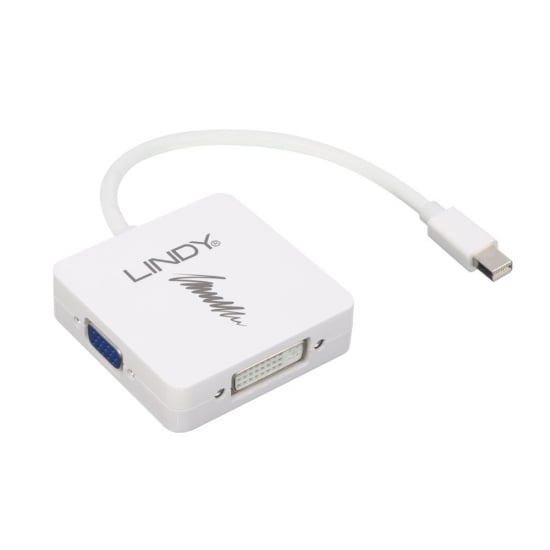

Mini DisplayPort 1.2 to HDMI, VGA & DVI-D Active Adapter Converter

The Lindy Mini DisplayPort to HDMI®, DVI and VGA Converter allows users to connect either a HDMI®, DVI or VGA screen to a Mini Displayport source. Supporting 4K resolutions up to 3840x2160@30Hz on HDMI® displays, content can be viewed with superior clarity and stunning accuracy. DVI monitors are supported with a maximum resolution of 1920x1200@60Hz, VGA monitors and projectors up to 1920x1080@60Hz.

With its lightweight, low profile design, this converter easily fits into a notebook bag and simply expands available connectivity options, so users can connect to the most commonly used digital and analogue video equipment, without having to carry multiple adapters - ideal for BYOD applications.

Specifications

• AV Interface: DisplayPort to HDMI, VGA, DVI
• Interface Standard: DisplayPort 1.2, HDMI 1.4, VGA, DVI-D
• Supported Bandwidth: 21.6Gbps
• Maximum Input Resolution: 3840x2160@30Hz
• Maximum  Output Resolution: HDMI: 3840x2160@30Hz
• DVI: 1920x1200@60Hz
• VGA: 1920x1200@60Hz
• Chipset: Paradetech PS8339
• HDCP Support: HDCP 1.4
• Supported Audio: Pass-through for HDMI
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input:Mini DisplayPort Male
• Output:
HDMI Type A Female
VGA Female
DVI-D Female

Physical Properties

• Dimensions (approx.) WxDxH: 60x60x16,4mm (2.36x2.36x0.65in) / Housing 10.9x24.5y8mm (0.43x0.96x0.31in)
• Cable Length: 200mm (7.87in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 5mm (0.2in)
• Minimum Bend Radius: 50mm (1.97in)
• Net Weight: 0.053kg (0.12lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 10 - 85% RH (non-condensing)
• Colour: White

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.06kg (0.13lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH

Package Contents:

• Mini DisplayPort 1.2 to HDMI 1.4, DVI & VGA Converter

Purchasing Information

• No.41035
• EAN: 4002888410359

• Datasheet for 41035 Mini DP 1.2 to HDMI 4K30/DVI/VGA Adapter
• UKCA DoC for 41035 Mini DP 1.2 to HDMI 4K30/DVI/VGA Adapter
• Product Safety Information
