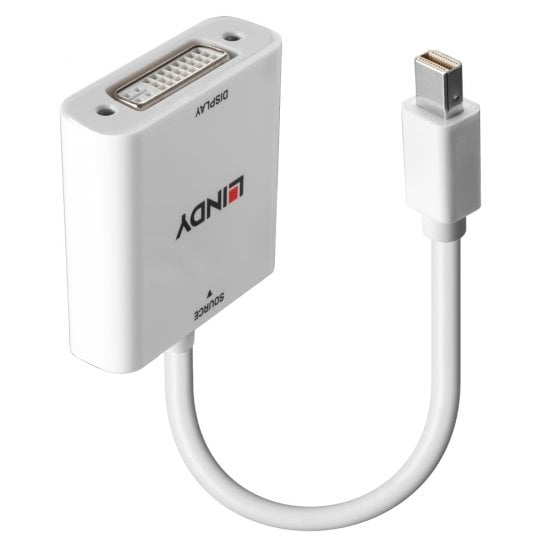

Mini Display Port to DVI Converter

The Lindy MiniDP to DVI Converter enables a seamless connection between your Mini DisplayPort-equipped device, such as a notebook, laptop, or mDP PC, and a DVI display. With support for high-quality resolutions up to Full HD 1920x1200, this converter ensures that your visuals are crisp and clear.

This converter is an essential tool for flexible working across various environments. Whether you’re in the office, on the go for presentations, or at home, it adapts to your needs effortlessly. Its compact and lightweight design makes it ideal for travel, ensuring you can set up quickly and efficiently wherever you are.

Enhanced reliability and compatibility are ensured with internal copper shielding, while its convenient plug & play installation simplifies the setup process. The Lindy Mini DP to DVI Converter combines practicality with performance, making it an excellent choice for anyone needing to connect modern devices to DVI displays.

Specifications

• AV Interface: Mini DisplayPort to DVI
• Interface Standard: DisplayPort 1.1
• Supported Bandwidth: 4.45Gbps
• Maximum Input Resolution: 1920x1200@60Hz
• Maximum  Output Resolution: 1920x1200@60Hz
• Chipset: NXP PTN3361
• HDCP Support: HDCP 1.4, HDCP 2.2
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: Passive converter

Connectors

• Input: Mini DisplayPort (Male)
• Output: DVI-I (Female)

Physical properties

• Dimensions (approx.) WxDxH:
• 18.9x11x9.3mm (0.71x0.43x0.37in)
• 44.5x44.5x15mm (1.75x1.75x0.59in)
• Cable Length: 180mm (7.09in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 5.5mm (0.22in)
• Minimum Bend Radius: 33mm (1.3in)
• Net Weight: 0.035kg (0.08lb)
• Operating Temperature: -20° to 40° (-4°F - 104°F)
• Storage Temperature: -40° to +80° (-40°F - 176°F)
• Humidity: 20 - 90% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 176x194x20mm (6.93x7.64x0.79in)
• Gross Weight: 0.045kg (0.1lb)
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, RoHS, REACH, Calif. Prop. 65

Package Contents

• Mini DisplayPort to DVI Converter

Purchasing Information

• No.: 38318
• EAN: 4002888383189

• Product Safety Information
