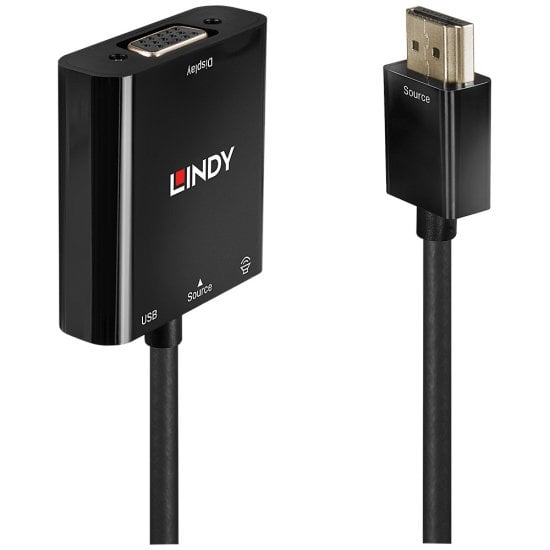

HDMI to VGA & Audio Converter

The Lindy HDMI® to VGA and Audio Converter is perfect for connecting HDMI®-equipped sources, such as laptops, ultrabooks, and PCs, to VGA displays. It converts the HDMI® signal, along with the associated digital audio stream, into an analog VGA signal and supports resolutions up to 1920x1080, ensuring clear and detailed visuals.

This converter is an ideal tool for flexible working in various environments. Whether you're in the office, traveling to hold presentations, or at home, it allows you to use older VGA monitors or projectors to display content. Its versatility and ease of use make it an excellent choice for anyone needing to connect modern devices to legacy VGA displays.

Specifications

• AV Interface: HDMI® to VGA & 3.5mm Stereo Audio
• Interface Standard: HDMI®, VGA
• Supported Bandwidth: 4.95Gbps
• Maximum Input Resolution: 1920x1080
• Maximum Output Resolution: 1920x1200@60Hz 12bit
• Chipset: Algoltek AG6200A
• HDCP Support: -
• Supported Audio: Pass-through
• Separate Audio Ports: 3.5mm Stereo Audio socket
• Special Features: USB Micro B socket for power

Connectors

• Input: HDMI® Type A Male
• Output: VGA Female, 3.5mm Stereo Audio Female, USB Micro-B Female (Power)

Physical Properties

• Dimensions (approx.) WxDxH:
45x43x14.5mm (1.77x1.69x0.57in)
21x17.4x9.6mm (0.83x0.69x0.38in) / HDMI
• Cable Length: 100mm (3.94in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 4.8mm (0.19in)
• Minimum Bend Radius: -
• Net Weight: 0.031kg (0.07lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Humidity: 5 - 95% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.041kg (0.09lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS & REACH

Package Contents

• HDMI® to VGA and Audio Converter

Purchasing Information

• No. 38285
• EAN: 4002888382854

• Datasheet for 38285 HDMI to VGA & Audio Converter
• UKCA DoC for 38285 HDMI to VGA & Audio Converter
• Product Safety Information
