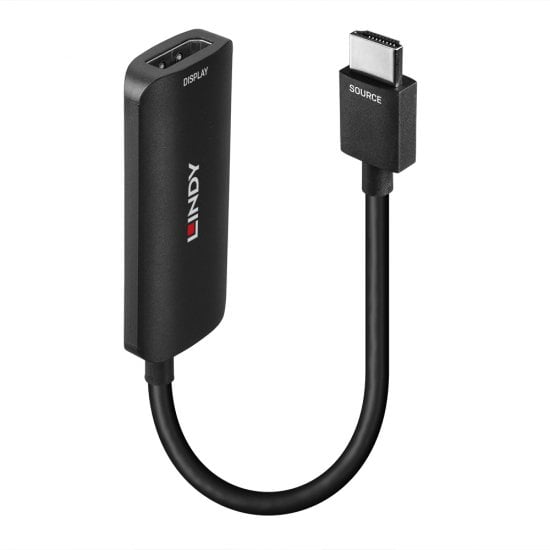

HDMI 8K60 to DisplayPort 1.4 Converter

A converter enables devices with different interfaces, such as HDMI® and DisplayPort, to connect by converting one signal to the other.The Lindy HDMI® 8K60 to DisplayPort 1.4 Converter combines advanced functionality with ease of use, making it an essential tool for modern connectivity needs.

The Lindy HDMI® 8K60 to DisplayPort 1.4 Converter allows you to connect HDMI® source devices, including PCs, Blu-ray players, and media players, to DisplayPort monitors, digital signage, and Large Format Displays (LFDs). Supporting stunning resolutions up to 8K 7680x4320@60Hz or 3840x2160@120Hz, this converter delivers superior clarity for content in innovative workspaces, collaborative environments, and educational setups. It also supports immersive multi-channel audio up to 7.1 channels, enhancing the overall video experience.

For added convenience, the converter features a USB power cable, allowing it to be externally powered when used with low power HDMI® sources. This feature makes it ideal for adding an additional display to extend your desktop workspace. Its compact, lightweight design and convenient plug & play installation make it perfect for travel, ensuring you can quickly set up in any environment.

Specifications

• AV Interface: HDMI® to DisplayPort
• Interface Standard: HDMI®, DisplayPort 1.4
• Supported Bandwidth: 48Gbps
• Maximum Input Resolution:
  • 3840x2160@120Hz 4:4:4 8Bit
  • 7680x4320@60Hz 4:2:0 8Bit
• Maximum  Output Resolution:
  • 3840x2160@120Hz 4:4:4 8Bit
  • 7680x4320@60Hz 4:2:0 8Bit
• Chipset: LT6711GX_U2
• HDCP Support: 2.3
• Supported Audio: 7.1, Stereo
• Separate Audio Ports: -
• Special Features: Power via USB

Connectors

• Input: HDMI® Type A (Male)
• Output:
  • DisplayPort (Female)
  • USB Micro-B (Female)

Physical Properties

• Dimensions (approx.) WxDxH:
  • HDMI®: 30x8x17mm (1.18x0.31x0.67in)
  • DP: 71x12x31mm (2.8x0.47x1.22in)
• Cable Length: 157mm (6.18in), USB cable: 0.5m (1.64ft)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 4.8mm (0.19in)
• Minimum Bend Radius: 25mm (0.98in)
• Net Weight: 0.03kg (0.07lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 45°C (-4°F - 113°F)
• Humidity: 20 - 70% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194x20mm (6.85x7.64x0.79in)
• Gross Weight: 0.04kg (0.09lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS & REACH

Package Contents

• HDMI® to DisplayPort Converter
• USB Type A to Micro-B Cable

Purchasing Information

• No.: 38329
• EAN: 4002888383295

• UKCA DoC for 38329 HDMI 8K60 to DisplayPort 1.4 Converter
• Tech Data Sheet for 38329 HDMI 8K60 to DisplayPort 1.4 Converter
• Product Safety Information
