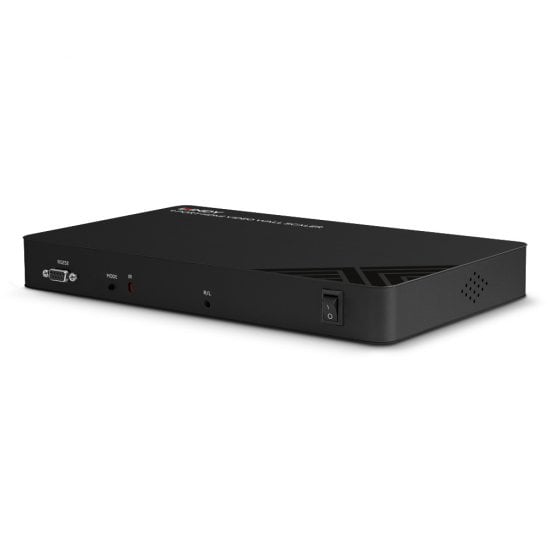

9 Port HDMI Video Wall Scaler

The 9 Port HDMI® Video Wall Scaler allows a 4K HDMI® input source to be arranged on 9 displays in a variety of configurations. The 4k input is divided up in to nine signals and sent to each display at 1080p creating the perfect digital signage or entertainment solution.

The unit features a HDMI® input connection which allows one unique source to be used as well as HDMI® audio extraction via the 3.5mm Stereo audio output.

This unit has been developed for use in installations which require maximum impact, such as retail, advertising and hospitality. Multiple video wall presets and adjustable picture options means the Scaler can deliver stunning video wall layouts.

Create even bigger Video Walls by combining two units together via HDMI® for layouts up to 3x4 or 4x4.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specification

• AV Interface: HDMI®
• Interface Standard: HDMI® 1.4
• Supported Bandwidth: 10.2Gbps
• Maximum Input Resolution: 3840x2160@30Hz 4:4:4 8bit
• Maximum Output Resolution: 1920x1080@60Hz 4:4:4 8bit
• HDCP Support: 1.4
• Supported Audio: Audio Pass Through on HDMI® Output 1
• Separate Audio Ports: 3.5mm Stereo
• Special Features: Daisy Chain of 2 devices video for wall layouts up to 3x4 or 4x4

Connectors

• Input: 1 x HDMI® Type A (Female)
• Output: 9 x HDMI® Type A (Female)
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions (approx.) WxDxH: 305x185x35mm (12.01x7.28x1.38in)
• Housing Material: Metal
• Net Weight: 1.747kg (3.85lb)
• Operating Temperature: -10°C - 45°C (14°F - 113°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Humidity: 10-85% RH (non-condensing)
• Power Requirements: 12VDC 3A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 353x295x70mm (13.9x11.61x2.76in)
• Gross Weight: 2.42kg (5.34lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, REACH, California 65 & RoHS

Package Contents

• 9 Port HDMI® Video Wall Scaler
• Multi-Country Power Supply  (US, UK, EU & AUS)
• Remote Control
• Lindy Manual

Purchasing Information

• No.: 38261
• EAN: 4002888382618

• Manual for 36261 9 Port HDMI Video Wall Scaler
• Software for 36261 9 Port HDMI Video Wall Scaler
• UKCA DoC for 38261 9 Port HDMI Video Wall Scaler
• Product Safety Information
