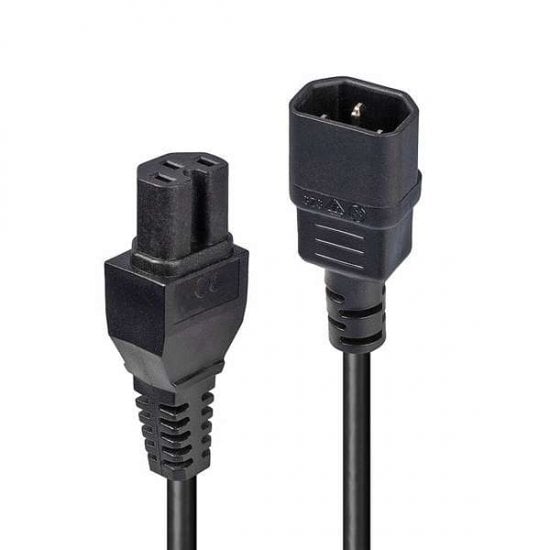

5m IEC C14 to IEC C15 Mains Extension

The IEC C14 to IEC C15 Mains Extension Cable is a professional-grade power solution designed to extend the connection between equipment requiring secure, heat-resistant AC power. Featuring an IEC C14 plug (male) to IEC C15 connector (female) configuration, this cable is ideal for use in data centers, broadcast systems, and Pro AV environments where reliability and performance are critical.

The Lindy C14 to C15 Extension cable supports up to 10A at 250V AC and is specifically designed for high-temperature applications up to 120°C. The C15 connector includes a notch and higher heat tolerance compared to the standard C13, making it suitable for equipment that undergoes hot conditioning or operates continuously under elevated temperatures such as servers, UPS systems, and network switches.

The robust molded connectors and flexible, flame-retardant PVC jacket ensure durability and safe operation during extended use. Each cable is electrically tested and hot-condition rated, guaranteeing stable power transmission even in demanding environments where thermal management is essential.

Available in multiple lengths, the IEC C14 to C15 Mains Extension Cable supports efficient rack organization, optimized airflow, and dependable performance in mission-critical installations.

This product is also available in other lengths

• 30401 - 1m (3.28ft)
• 30314 - 2m (6.56ft)
• 30402 - 3m (9.84ft)
• 30403 - 5m (16.44ft)

Connectors

• Connector A: IEC C14
• Connector B: IEC C15
• Housing Material:
  • A: PVC & PBT
  • B: PVC
• Pin Construction:
  • A: Brass
  • B: Phosphor Bronze
• Pin Plating: Nickel
• Dimensions (approx.) WxDxH:
  • A: 28x64x21mm (1.1x2.52x0.83in)
  • B: 28.4x77x20mm (1.12x3.03x0.79in)

Cable Construction

• Length: 5m (16.44ft)
• Colour: Black
• Conductor Material: Copper
• Cable Material: H05-VVF 3G 1.0mm²
• Number of Wires: 3
• Wire Gauge: 1.0mm²
• Jacket Diameter: 6.8mm (0.27in)
• Jacket Material: PVC

Specifications

• Rated Voltage and Current: 10A/250V
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: CE, RoHS, REACH, California Proposition 65

Purchasing Information

• No.: 30403
• EAN: 4002888304030

This product is also available in other lengths

• 30401 - 1m (3.28ft)
• 30314 - 2m (6.56ft)
• 30402 - 3m (9.84ft)
• 30403 - 5m (16.44ft)
