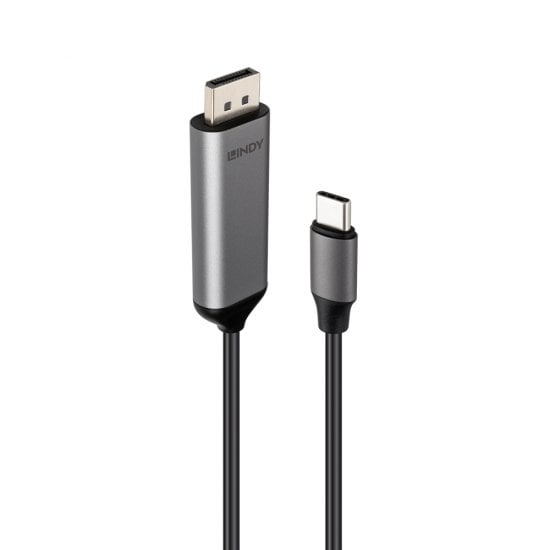

1m Bi-Directional USB Type C To DisplayPort 8K60Hz Cable

The Lindy Bi-Directional USB Type-C to DisplayPort Cable is the ideal solution for hot-swapping display units or source devices. Designed to deliver reliable and consistent resolutions up to 8K (7680x4320@60Hz) using DSC (Display Stream Compression), it ensures stunning visuals without compromising quality, offering exceptional performance, corrosion resistance, and long-lasting durability.

Due to its Bi-directional capability, this versatile cable supports both USB Type-C and DisplayPort displays and source devices, providing maximum flexibility for any display configuration. It is perfect for on-the-go meetings, hot-desking environments, and home office setups where fast connectivity and high-quality visuals are essential. Perfect for classrooms, training rooms, multimedia installations, and creative workflows making it easy to swap between different devices and displays.

With its robust build and high-resolution capabilities, this cable ensures crystal-clear visuals for presentations, content sharing, and immersive viewing experiences.

The Lindy Bi-Directional USB Type C to DisplayPort cable is available in lengths from 1m to 2m.

Connectors

• Connector A: USB Type C Male
• Connector B: DisplayPort Male
• Housing Material: Aluminium
• Connector Plating: Gold Plating
• Pin Construction: Copper Alloy
• Pin Plating: Nickel
• Dimensions (approx.) WxDxH:
  • DisplayPort: 21.0x38.9x13.6mm (0.83x1.53x0.54in)
  • USB Type C:  30x10x5mm (1.80x0.39x0.2in)

Cable Construction

• Length: 1m (3.28ft)
• Standard: DisplayPort 1.4
• Colour: Grey
• Type: Round
• Jacket Diameter: 4.5mm (0.17in)
• Jacket Material: PVC
• Conductor Material: Copper
• Conductor Gauge: 32AWG

Specifications

• Supported Bandwidth: 32.4Gbps
• Maximum Resolution: 7680x4320@60Hz
• Power Delivery: N/A
• Nominal Attenuation:
  • 300kHz-825MHz - <5dB
  • 825MHz-2.475GHz - <5dB
  • 2.475GHz-4.125GHz - <12dB
  • 4.125GHz-5.1GHz - <20dB
• Minimum Bend Radius: 48mm (1.89in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS, REACH, California Proposition 65

Purchasing Information

• No.: 43503
• EAN: 4002888435031

This product is also available in other lengths

• 1m (3.28ft) - 43503
• 2m (6.56ft) - 43504
